IBM Injection Blow Molding Machine

ZQ60 Fully Electric Injection Blow Molding Machine with PLC Control for 5ml to 1L Bottles

All Category

IBM Injection Blow Molding Machine

Extrusion Blow Molding Machine

Injection Stretch Blow Molding Machine

MTC Mould Temperature Controller

Semi Automatic Blow Molding Machine

Bottle Packaging Machine

Ms. Isabel Zhu

isabel@ziqiangmachine.com

+8613913614902

+8613913614902

Contact Now

ZQ60 Fully Electric Injection Blow Molding Machine with PLC Control for 5ml to 1L Bottles

Brand Name:	ZIQIANG
Model Number:	ZQ 60
MOQ:	1
Price:	40000 USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Clampingforce:

Varies By Model, Typically 50-300 Tons

Injection Stroke:

200mm

Water Flowage:

4M³/h

Controlsystem:

PLC With Touchscreen Interface

Manpower Required:

1 Operator

Blow Mold Stroke:

120 Mm

Specification:

IBM35D

Weight:

Ranges From 1500 To 4000 Kg Depending On Model

Injection Clamping Force:

1100 KN

Production Capacity:

As Per Samples

Compressed Air Capacity:

0.7M³/min

Cycletime:

Typically 10-30 Seconds Per Cycle

Pneumatic Valve Connector:

Festo

Head Heating Power:

5.7kw

Plastic Processed:

PP,PE

Supply Ability:

15 SET/MONTH

Highlight:

Fully Electric IBM Machine

PLC Control Blow Molding Equipment

5ml to 1L Injection Blow Molding Machine

Product Description

ZIQIANG MACHINERY & MOULD GROUP

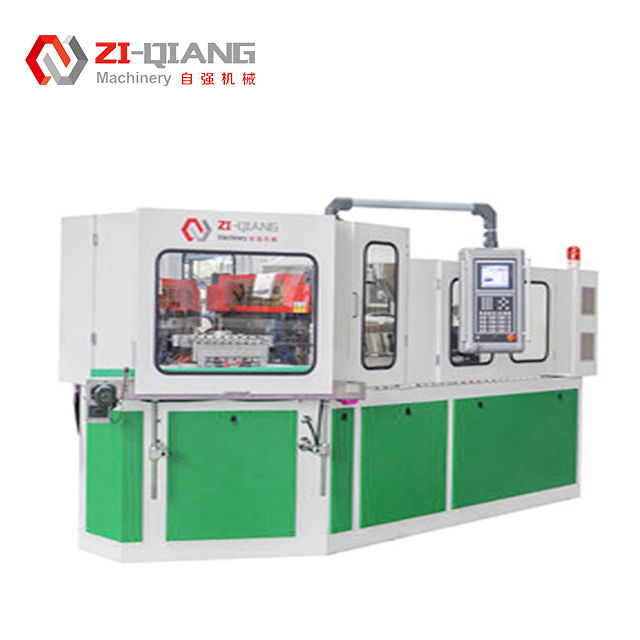

Injection Blow Molding Machine ZQ60

Product Overview

The ZQ60 Injection Blow Molding Machine specializes in the efficient production of plastic containers ranging from 5ml to 1L, including cosmetic bottles, beverage bottles, and pharmaceutical packaging. This fully electric integrated system combines leading injection molding technology with blow molding processes for superior product quality and manufacturing efficiency.

Injection Blow Molding Process

Injection blow molding integrates injection molding with blow molding technology. The process begins with injection molding to create a preform with a bottom, which is then transferred to the blow mold station for inflation. Compressed air expands the preform against the mold cavity, followed by cooling and demolding. This automated three-station process ensures continuous production cycles.

Key process advantages include:

High automation depth and production efficiency
Superior product quality compared to extrusion blow molding
No seam lines, strong bottom structure, uniform wall thickness
Precise neck dimensions and no corner scrap or flash

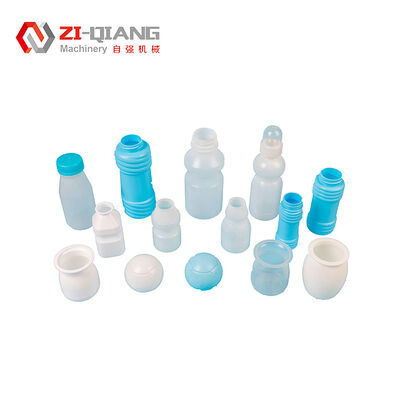

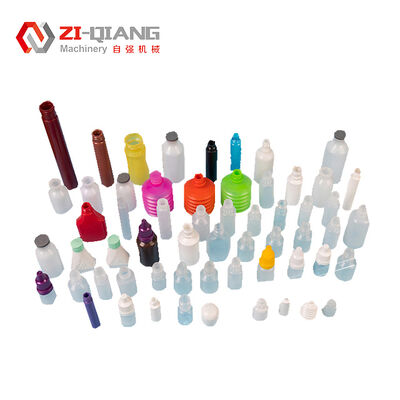

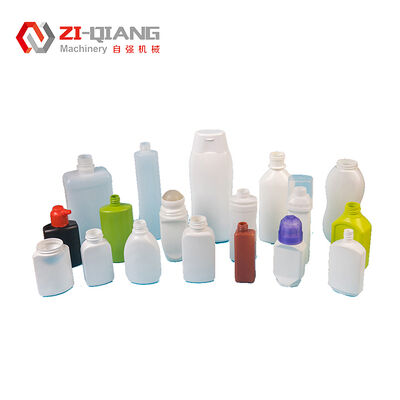

Ideal for small precision containers and wide-mouth packaging

Technical Specifications

Item	Unit	ZQ60
Injection System
Screw Diameter	mm	45
Screw L/D	%	22:1
Injection weight	g	260
Heating power	KW	14
Number of barrel zone		3+N
Injection stroke	mm	160
Clamping System
Clamping force of injection	KN	600
Opening stroke for injection	mm	140
Clamping force of blowing	KN	100
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70

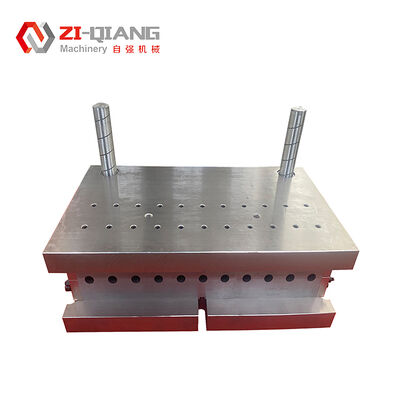

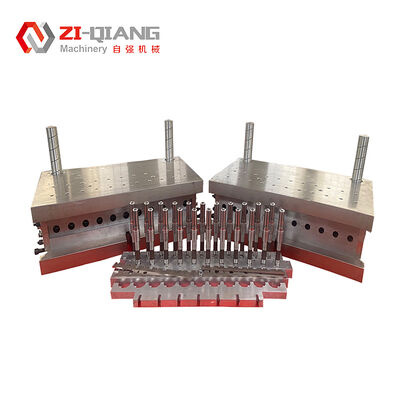

Mould
Max.Platen size(L*W)	mm	600*390
Mold thickness	mm	240
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	230
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	22
Dry cycle	S	4
Total Power	KW	37
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	3.51.41.8
Net weight	Ton	5

Machine Advantages

The ZQ60 injection blow molding machine offers significant advantages over traditional blow molding processes:

No.	ZQ Series IBM Machine	Other Products
1	Down-setting the clamping cylinder ensures the deck plate clean	The clamping cylinder set on the deck plate causes oil pollution
2	Unique pressurization technology reduces system energy consumption with no pressure cylinder leakage	Pressure cylinder participation leads to high energy consumption and oil leakage
3	Pressure structure without prefill valve or oil tank ensures stable, high clamping force	Pressure structure with prefill valve and oil tank causes temperature rise and reduced clamping force
4	Comprehensive automated inspection system for air pressure, cooling water, mold temperature, and production anomalies	Manual inspection required for necessary checks
5	No external oil pipes prevent oil contamination	External oil pipes cause oil pollution
6	Machine height approximately 1.7M	Machine height approximately 2.3M
7	Aluminum equipment cover ensures complete enclosure and security	Plastic coating equipment cover, not fully enclosed
8	Clamping beam directly on mold prevents burrs on long and large bottles	Clamping cylinder on template causes burrs on long and large bottles
9	Enhanced safety protection functions ensure operational stability and security

Our engineering team brings over 20 years of experience in injection blow molding technology. The machine features Haitian servo motors from China and premium German pneumatic valves for exceptional reliability and long service life.

The injection blow molding process transforms raw materials into finished plastic bottles in a single automated operation. This eliminates secondary processing, reduces labor requirements, and ensures compliance with pharmaceutical GMP standards. Ideal for pharmaceutical bottles, juice containers, beverage bottles, milk bottles, and cosmetic packaging with stringent quality requirements.

Professional Workshop

Company Profile

ZIQIANG MACHINE & MOULD GROUP

Zhangjiagang Ziqiang Machinery Co., Ltd. specializes in the research, development, production, and sales of automatic one-step injection-blow molding machines and supporting molds. Located in Zhangjiagang City near Shanghai, we serve customers worldwide including Vietnam, Australia, Indonesia, Malaysia, Thailand, Russia, UAE, Saudi Arabia, Italy, India, Mexico, Colombia, South Africa, and many other countries.

Our global service network includes teams in Saudi Arabia, Colombia, Panama, South Africa, and other strategic locations.

Our product applications span pharmaceutical packaging, food packaging, healthcare packaging, cosmetic packaging, and various plastic packaging applications. We produce 1ml-1000ml plastic containers using materials including HDPE, LDPE, PP, PS, ABS, environmental corn material, EVA, PCTG and more.

We adhere to the enterprise development principles of "self-reliance, integrity, pragmatism, innovation and responsibility," providing comprehensive turnkey solutions for high-end injection-blow molding production.

Our Service

Experienced senior engineers handle equipment installation, production optimization, and comprehensive training
Regular preventive maintenance reminders to minimize wear and reduce maintenance costs
24/7 service hotline for emergency support
Adequate inventory of equipment parts to minimize production downtime
Comprehensive training covering machine operation, mold processes, and maintenance procedures

Frequently Asked Questions

Q: Can we visit your factory?

Yes. We are located in Zhangjiagang city near Shanghai. For international customers, fly to Shanghai Pudong International Airport and we will provide airport pickup. Online video factory tours are also available.

Q: How can we get the exact price of plastic machine?

Contact us with your product specifications including size, shape, annual quantity, and photos if available. We will recommend suitable machine models with detailed quotations.

Q: Do you provide any spare parts with machine?

Yes, we include all necessary spare parts with machine shipments. Contact us for the complete packing list.

Q: How about your after-sale service?

We provide comprehensive one-stop turnkey solutions with 24-hour debugging support and on-call after-sales personnel.

Q: What is the lead time?

Customized machines typically require about 45 days after deposit. Stock machines are available for fast shipment. Actual production cycles vary based on customization requirements.

Q: What is the warranty period for your machine?

One year warranty for components with ongoing technical support.

Q: Do you provide custom machines?

Most of our machines are customized to meet specific customer requirements. We design machines according to customer products to ensure optimal efficiency and stable performance.

Q: How can we install the machine when it arrives?

We provide comprehensive installation guidance. If needed, we can dispatch experienced engineers to assist with installation and commissioning.
