Injection Stretch Blow Molding Machine

Hot Sales Automatic Multi Cavity Plastic Water Bottle Barrel Stretching Blow Molding Equipment

All Category

IBM Injection Blow Molding Machine

Extrusion Blow Molding Machine

Injection Stretch Blow Molding Machine

MTC Mould Temperature Controller

Semi Automatic Blow Molding Machine

Bottle Packaging Machine

Ms. Isabel Zhu

isabel@ziqiangmachine.com

+8613913614902

+8613913614902

Contact Now

Hot Sales Automatic Multi Cavity Plastic Water Bottle Barrel Stretching Blow Molding Equipment

Brand Name:	ZQ
Model Number:	ZQ-AAS
MOQ:	1 Set
Packaging Details:	20'Container
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Material:

PET (Polyethylene Terephthalate)

Processsing Mode:

One Step

Powersupply:

220V/380V, 50/60 Hz

Cavity:

Multi-cavity For Option

Applications:

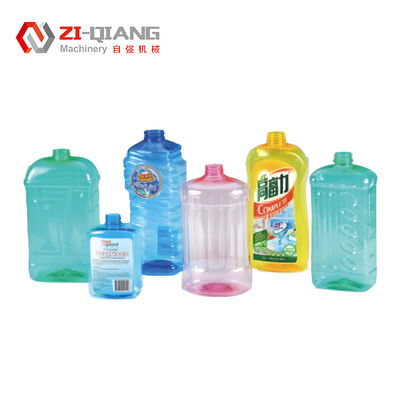

Beverage,Water,Milk,Wine,etc.

Number Of Cavities:

Cavities:

4 CAV, 6 CAV, 8 CAV, 10 CAV, 10 CAV, Etc

Suitable Bottle:

Customize

Supply Ability:

10 Set/Month

Highlight:

automatic plastic water bottle molding machine

multi cavity barrel stretching equipment

stretch blow molding machine with warranty

Product Description

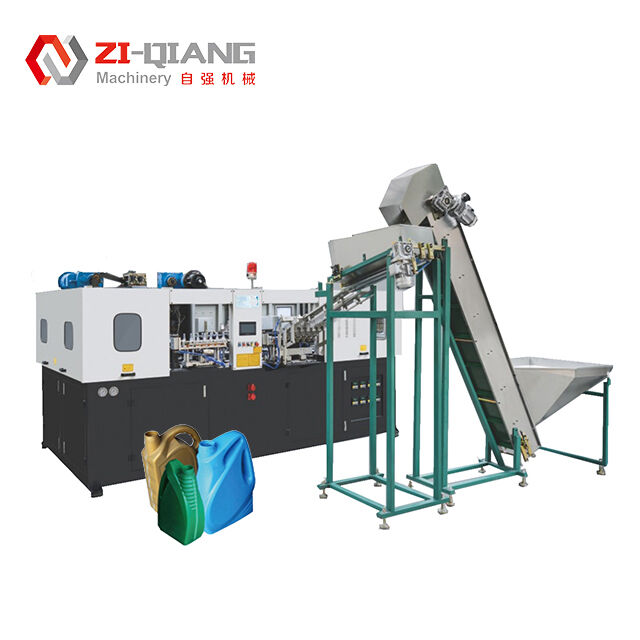

Automatic Injection Stretching Blow Molding Machine

High-performance automatic multi-cavity plastic water bottle and barrel stretching blow molding equipment designed for efficient mass production. This advanced machinery delivers precision manufacturing with superior output quality.

Machine Advantages:

1. Place the mold clamping oil cylinder downwards to ensure the cleanliness of the tabletop products. The clamping force of the mold is evenly distributed.
2. The machine height is lowered for easy installation and operation.
3. Unique hydraulic servo system, reasonable pipeline layout, and improved operational efficiency.
4. Unique boost locking structure increases the locking force, and the boost cylinder does not participate in the opening and closing of the mold, reducing energy consumption
5. Servo indexing system to improve indexing accuracy and equipment idle cycle time
6. A special dual cylinder horizontal valve plate overlay injection system ensures smoother and faster injection and storage of materials
7. Demoulding adopts digital sensing technology to achieve unmanned and automatic operation
8. Added air pressure detection function, mold cooling water pressure, temperature detection function, abnormal will issue an alarm, reducing waste rate
9. Added auxiliary machine alarm and host communication function. When the host detects an auxiliary machine alarm, the host stops working.
10. Optional core rod blowing cold air function can shorten the cooling cycle of the product and solve the problem of core rod sticking
11. The rear end of the conveyor belt can be connected to visual inspection equipment to detect foreign objects on the bottle body and grooves at the bottom, achieving unmanned automatic operation.

Work Flow

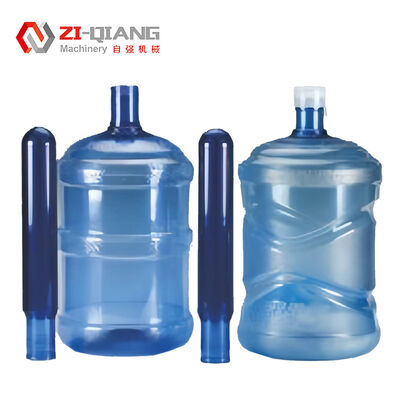

1. Preparation of preforms
After heating and melting plastic particles (such as PET), a bottom tube shaped billet (blue small tube on the left in the figure) is made through injection technology.
2. Heat and soften the billet
Send the preform into the heating device and heat it to the "high elastic state" of the plastic (softened but not melted) to prepare for subsequent stretching.
3. Mold closure
Place the softened billet into a blow molding mold, which closes from both sides to secure the bottom and neck of the billet.
4. Axial tension
Stretch the billet upwards from the inside using a stretching rod to extend it in the "length direction" (as indicated by the red arrow pointing upwards in the figure).
5. Blow molding
Inject compressed air into the stretched billet to expand it radially (in width) and tightly adhere to the inner wall of the mold (the blue pattern in the picture is the cooling channel of the mold).
6. Cooling and demolding
The cooling system inside the mold allows the plastic to quickly shape, and then the mold is opened to remove the molded plastic bottle. Finally, the edges and corners are trimmed to obtain the finished product.

Machine Parts

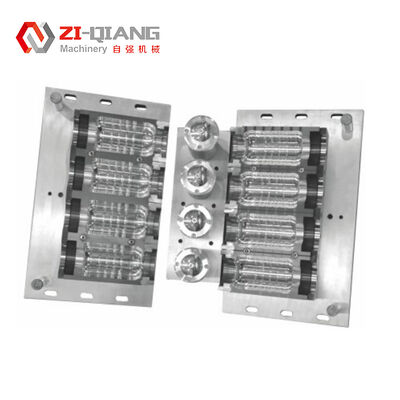

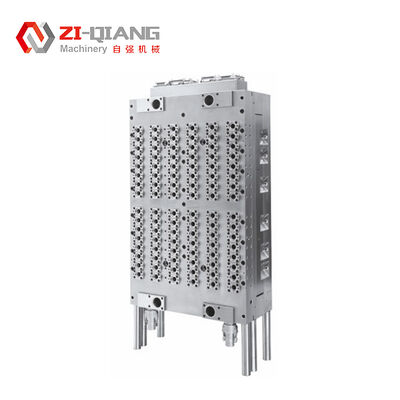

Mold Advantage:

1.The activity designed cavity and neck of injection mold and special designed oil waywhich can be changed conveniently to ensure the tube billet size, the stable tempera-ture.

2.Injection mold material adopt imported $136 steel alloy or 4Cr3 stainless steel. Thehigh strength steel increase the service life.

3.The optimized hot runner system and bottle embryo to ensure the gram weight devia-tion and wall thickness deviation minimization, The special structure of mandrel willkeep the fast molding cycle and good core cooling effect.

4.The mouth and thread are accurate in size and 100% sealed.There are no burrs and non-waste on the mouth and bottom of the bottle.

5.The product size, weight, mold line and bottle thickness are consistent.

After-sales Service

On-site installation and training services
Routine maintenance and troubleshooting support
Remote technical assistance
Spare parts and replacement components availability
Upgrades and customization services
Comprehensive documentation and user manuals
Continuous product improvement and updates

Loading and Shipping

Hot Sales Automatic Multi Cavity Plastic Water Bottle Barrel Stretching Blow Molding Equipment 6

1. All products are carefully packaged with anti-collision materials (bubble film, wooden cases) to ensure intact delivery during long-distance transportation.

2.We provide customized packaging solutions according to your order quantity and transportation requirements (sea/air/express).

FAQ

1. who are we?

We are based in Jiangsu, China, start from 2019,sell to South Asia(35.00%),South America(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

automatic one-step "injection-blowing" blow molding machine,supporting "injection-blowing" mold manufacturer

4. why should you buy from us not from other suppliers?

Fully automatic one-step injection-blow molding machine manufacturer

High-precision injection-blow mold and auxiliary equipment manufacturer

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;

Accepted Payment Type: T/T;

Language Spoken:English,Chinese
