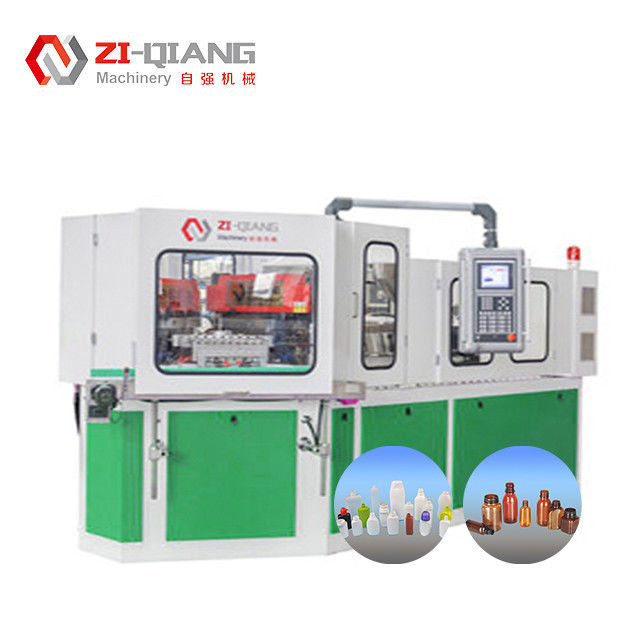

ZQ60: A mature manufacturer with over 20 years of experience in injection and blowing of plastic beverage bottles, cosmetic bottles, pharmaceutical bottles, and a series of small and medium-sized bott

Brand Name:	ZI QIANG
Model Number:	ZQ 60
MOQ:	1
Price:	40000 USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Controlling System:

Act Technologies

Net Weight:

3.8Ton

Product Height:

≤220 Mm

Pneumatic Valve Connector:

Festo

Suitable Materials:

PP, HDPE, PE, PE/PP

Injection Mold Stroke:

120 Mm

Origin:

Jiangsu Zhangjiagang

Transport Package:

Film Packing

Productname:

IBM Injection Blow Molding Machine

Cycletime:

Typically 5-15 Seconds Per Cycle

Mold Opening Stroke:

200-400mm

Material:

HDPE,PP,PVC,PS,PETG,LDPE

Suitable Bottle Range:

5ml-2L

Ejector Force:

50-100 KN

Hollow Part Volume:

5ml To 2L

Supply Ability:

15 SET/MONTH

Highlight:

IBM injection blow molding machine for plastic bottles

plastic bottle injection blow molding machine with warranty

cosmetic bottle injection blow molding machine manufacturer

Product Description

Item	Unit	ZQ60
Injection System
Screw Diameter	mm	45
Screw L/D	%	22:1
Injection weight	g	260
Heating power	KW	14
Number of barrel zone		3+N
Injection stroke	mm	160
Clamping System
Clamping force of injection	KN	600
Opening stroke for injection	mm	140
Clamping force of blowing	KN	100
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	600*390
Mold thickness	mm	240
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	230
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	22
Dry cycle	S	4
Total Power	KW	37
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	3.51.41.8
Net weight	Ton	5
