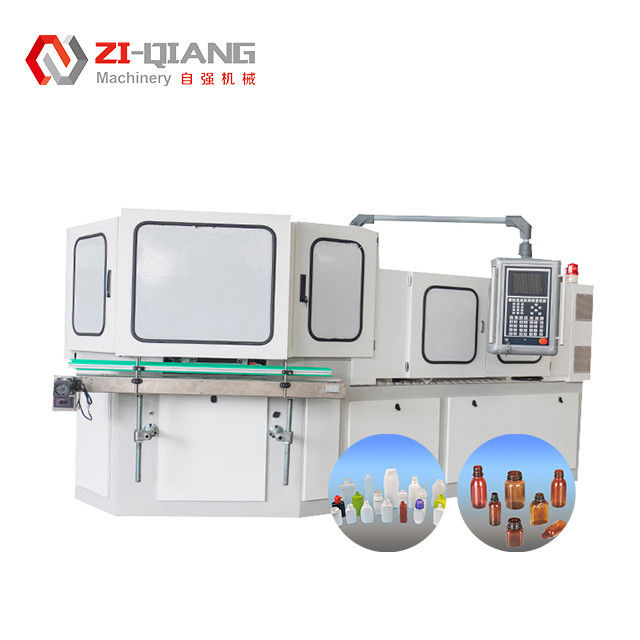

ZQ40: Beautiful price, efficient performance, fully automated and integrated manufacturing of small and medium-sized plastic bottles.

Brand Name:	ZI QIANG
Model Number:	ZQ 40
MOQ:	Q
Price:	30000 USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Manpower Required:

1 Operator

Total Power:

Clamping Force:

100-500KN

Injection Pressure:

100-200 MPa

Suitable Materials:

PP, HDPE, PE, PE/PP

Screwdiameter:

Typically 20-40 Mm

Screw Diameters:

Controlsystem:

PLC With Touchscreen Interface

Hollow Part Volume:

5ml To 1L

Productname:

IBM Injection Blow Molding Machine

Transport Package:

Film Packing

Mould Material:

S136, P20, 4Cr13

Station:

Three In One

Cooling System:

Water Cooling

Supply Ability:

20 SET/MONTH

Product Description

ZQ40: Beautiful price, efficient performance, fully automated and integrated manufacturing of small and medium-sized plastic bottles. 0

ZQ40: Beautiful price, efficient performance, fully automated and integrated manufacturing of small and medium-sized plastic bottles. 1

Item	Unit	ZQ40
Injection System
Screw Diameter	mm	40
Screw L/D	%	21:1
Injection weight	g	140
Heating power	KW	7.5
Number of barrel zone		3+N
Injection stroke	mm	120
Clamping System
Clamping force of injection	KN	400
Opening stroke for injection	mm	140
Clamping force of blowing	KN	60
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70

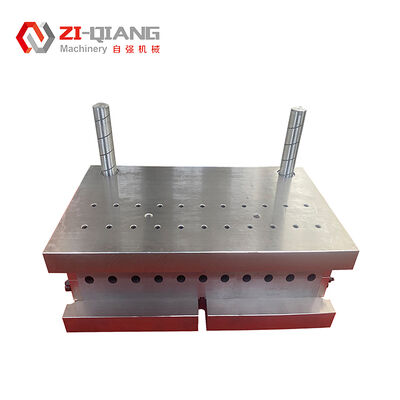

Mould
Max.Platen size(L*W)	mm	480*340
Mold thickness	mm	180
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	220
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	11
Dry cycle	S	4
Total Power	KW	20
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	31.31.7
Net weight	Ton	3.8
