Fully Automatic Double Station 1L 2L 5L Plastic HDPE Bottle Extrusion Blow Moulding Machine

Brand Name: ZQ
Model Number: TCG 90D
MOQ: 1 Set
Packaging Details: 20'Container
Payment Terms: D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Clamping Force:
250KN
Average Power Consumption:
42KW
Material:
PE,PP,EVA,ABS,PS
Dimension:
4.8*2.3*3.5m
Material Source:
LDPE, HDPE, PP
Machinetype:
Extrusion Blow Molding
Controlsystem:
PLC With Touch Screen
Machine Type:
Fully Automatic Blow Moulding Machine
Maxproductlength:
Up To 1000 Mm
Station:
Double Station Four Head
Total Machine Power:
70KW
Guarantee:
1 Year
Screw Heating Power:
21KW
Extrusion Motor:
30 KW
Layer Design:
Double Layer Design
Supply Ability:
10 Set/Month
Highlight:

250KN Clamping Force Extrusion Blow Molding Machine

,

Double Station Four Head EBM Plastic Machine

,

70KW Total Power Fully Automatic Blow Moulding Machine

Product Description

TCG90D Extrusion Blow Molding Machine


Our extrusion blow molding machines represent the pinnacle of plastic container manufacturing technology. Engineered for precision and efficiency, these industrial-grade systems deliver exceptional performance for producing high-quality hollow plastic products across various industries.

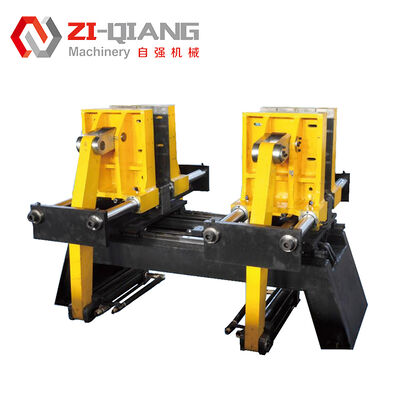

Fully Automatic Double Station 1L 2L 5L Plastic HDPE Bottle Extrusion Blow Moulding Machine 0

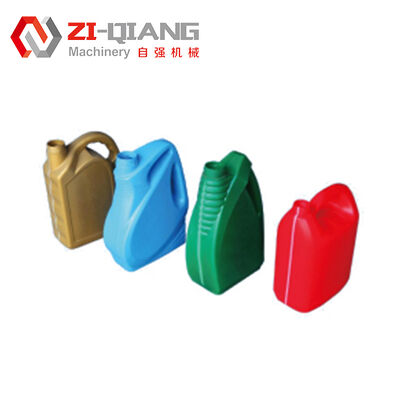

Fully Automatic Double Station 1L 2L 5L Plastic HDPE Bottle Extrusion Blow Moulding Machine 1

Key Features


  • High-efficiency extrusion system for consistent material flow
  • Precision mold clamping with advanced hydraulic control
  • Energy-saving servo motor technology
  • User-friendly PLC control system with touchscreen interface
  • Robust construction for continuous operation
  • Versatile compatibility with various plastic materials
  • Quick mold change system for production flexibility
  • Integrated safety features and emergency stop systems


Other Machines

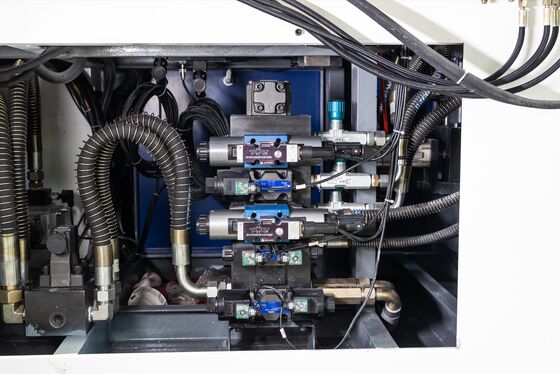

 Fully Automatic Double Station 1L 2L 5L Plastic HDPE Bottle Extrusion Blow Moulding Machine 2


Technical Specifications


Max. Product Volume (L) 12
Theoretical Output (PC/h) 550×2
Screw Diameter (mm) 90
Screw L/D ratio (L/D) 22-30
Screw drive power (KW) 45-75
Screw heating capacity (KW) 20-30
Output of HDPE (kg/h) 120-200
Oil pump drive power(with servo) (KW) 18.5
Clamping force (KN) 150
Platen size (W×H) mm 550×550
Platen Moving Stroke (mm) 660
Platen Opening Stroke (mm) 220-660
Max. Die diameter (mm) 220
Central distance of bi-die (mm) 240-280
Central distance of three-die (mm) 90-160
Central distance of four-die (mm) 90-120
Central distance of six-die (mm) 80
Blowing pressure (Mpa) 0.6-0.8
Air Consumption (M³/H) 72
Cooling water pressure (Mpa) 0.3
Water consumption (L/MIN) 100
Size of machine (L×W×H) /m 4.5×3.0×2.7
Weight of machine (TON) 16.5


Applications


Ideal for manufacturing bottles, containers, automotive components, industrial parts, and consumer products. Suitable for PET, PP, PE, PVC, and other thermoplastic materials.

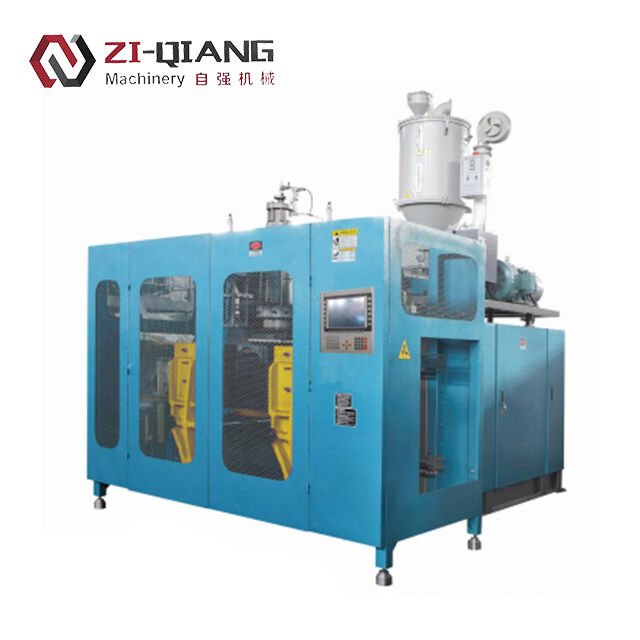

Fully Automatic Double Station 1L 2L 5L Plastic HDPE Bottle Extrusion Blow Moulding Machine 3

Support and Services


The EBM Injection Blow Molding Machine product offers comprehensive technical support and services to ensure optimal performance and reliability. Our team of experts is dedicated to assisting customers with any issues or questions they may have regarding the machine's operation, maintenance, or troubleshooting. We provide training programs, documentation, and remote assistance to help users maximize the efficiency and effectiveness of their production processes.



Packing and Shipping


Product Packaging:

The EBM Injection Blow Molding Machine is carefully packaged in a sturdy cardboard box to ensure safe transportation. The machine components are securely placed and cushioned with protective materials to prevent any damage during shipping.


Shipping:

Once the EBM Injection Blow Molding Machine is packaged, it is shipped using a reliable freight service that specializes in handling heavy machinery. The shipping process is monitored closely to guarantee timely delivery to the customer's specified location.

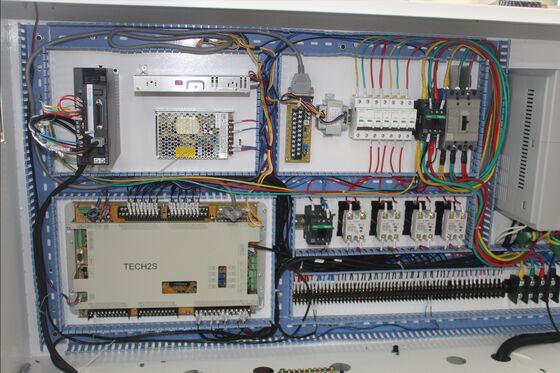

 Fully Automatic Double Station 1L 2L 5L Plastic HDPE Bottle Extrusion Blow Moulding Machine 4
