Automatic Lubricant HDPE Plastic Bottle Small Manufacturing Extrusion Blowing Moulding Machine

Brand Name:	ZQ
Model Number:	TCG 70D
MOQ:	1 Set
Packaging Details:	20'Container
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Key Selling Points:

Long Service Life

Driven Type:

Electric And Hydrulic

Auto Deflashing:

Available

Blow Molding Type:

Extrusion Blow Molding Machine

Platen Moving Stroke:

440 Mm

Clamping Force:

90 KN

Automation:

Plastic PP PC PE

Screw Diameter:

Cooling Water Pressure:

0.3Mpa

Air Consumption:

56 M3/H

Output Of Hdpe:

Screw Drive Power:

Supply Ability:

10 Set/Month

Highlight:

Long Service Life Extrusion Blow Molding Machine

90 KN Clamping Force EBM Machine

70KG Output Of HDPE Plastic Blow Molding Machine

Product Description

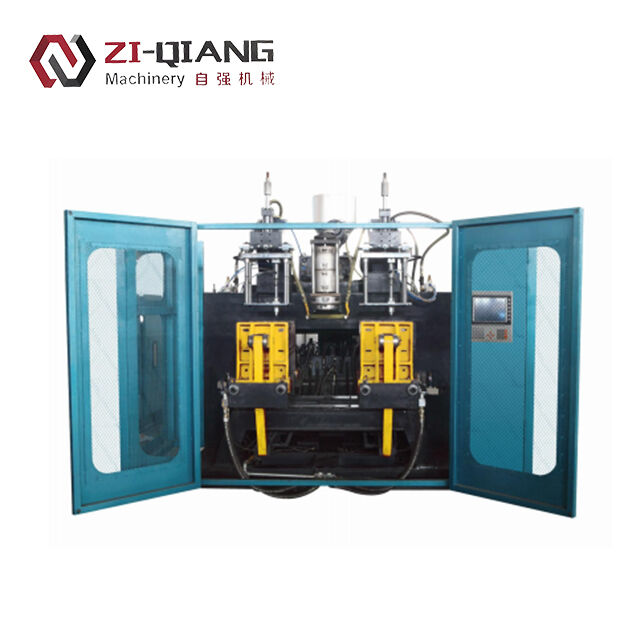

TCG70D Extrusion Blow Molding Machine

Our advanced extrusion blow molding machine is engineered for high-efficiency plastic container and bottle production. This industrial-grade equipment delivers precision molding capabilities for various plastic materials, ensuring consistent quality and optimal performance in manufacturing operations.

Key Features

High production efficiency with automated operation
Precision temperature control system
Energy-efficient hydraulic system
User-friendly PLC control interface
Robust construction for continuous operation
Versatile mold compatibility
Low maintenance requirements

Samples

Plastic bottles and containers
Industrial packaging products
Automotive components
Consumer goods packaging
Medical and pharmaceutical containers

Automatic Lubricant HDPE Plastic Bottle Small Manufacturing Extrusion Blowing Moulding Machine 2

Other Type Machines

Automatic Lubricant HDPE Plastic Bottle Small Manufacturing Extrusion Blowing Moulding Machine 3

Technical Specifications

Max. Product Volume	(L)	6
Theoretical Output	(PC/h)	600×2
Screw Diameter	(mm)	70
Screw L/D ratio	(L/D)	22-30
Screw drive power	(KW)	18.5-30
Screw heating capacity	(KW)	12-16
Output of HDPE	(kg/h)	70-105

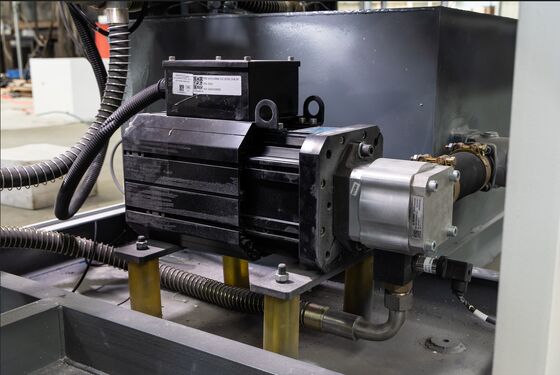

Oil pump drive power(with servo)	(KW)	11
Clamping force	(KN)	90
Platen size	(W×H) mm	370×450
Platen Moving Stroke	(mm)	440
Platen Opening Stroke	(mm)	180-530
Max. Die diameter	(mm)	150
Central distance of bi-die	(mm)	150-200
Central distance of three-die	(mm)	80-120
Central distance of four-die	(mm)	60-85
Central distance of six-die	(mm)	60
Blowing pressure	(Mpa)	0.6-0.8
Air Consumption	(M³/H)	56
Cooling water pressure	(Mpa)	0.3
Water consumption	(L/MIN)	90
Size of machine	(L×W×H) /m	3.6×2.6×2.5
Weight of machine	(TON)	10.5

FAQ

A: The brand name of the machine is Zl-Qiang.

Q: What is the model number of the machine?

A: The model number of the machine is ZQ80.

Q: Where is the machine manufactured?

A: The machine is manufactured in China.

Q: What is the minimum order quantity for the machine?

A: The minimum order quantity is 1 set.

Q: What are the accepted payment terms for purchasing the machine?

A: The accepted payment terms are D/A, D/P, T/T, Western Union.
