Fully Automatic High-capacity TYC60 EBM Blue Molding Machine with HDPE PP PE Bottles

Brand Name: ZQ
Model Number: TCY60
MOQ: 1 Set
Packaging Details: 20'Container
Payment Terms: D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Output Of Hdpe:
60~75
Weight:
5.5 T
Screw Diameter:
60 Mm
Air Consumption:
0.5m3/min
Screw Heating Power:
12KW
Working Speed:
130pcs/h
Control System:
PLC+touch Screen
Materialcompatibility:
HDPE, LDPE, PP, PC, PE,PET
Machine Size:
2.95*1.9*2.5
Usage:
2L Or Above
Extruding Capacity:
50 Kg/h
Supply Ability:
10 Set/Month
Highlight:

60 mm Screw Diameter EBM Molding Machine

,

50 kg/h Extruding Capacity Extrusion Blow Molding Machine

,

PLC Control System Plastic Blow Molding Machine

Product Description

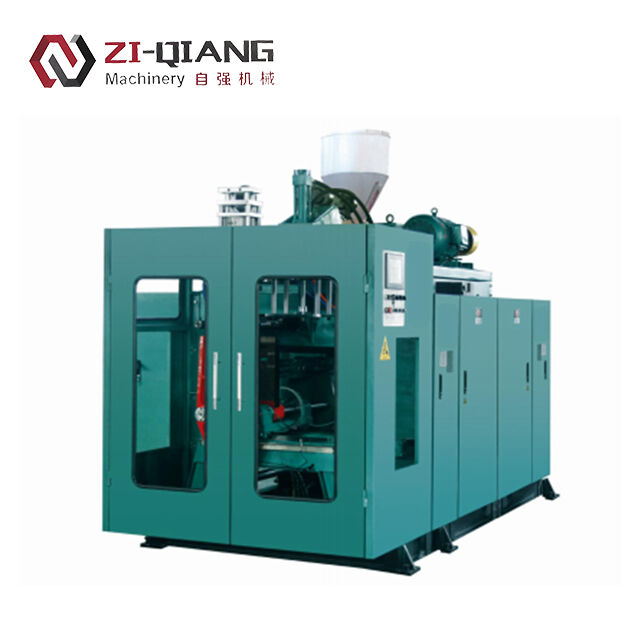

TYC60 EBM Molding Machine

The TYC60 EBM Molding Machine represents the pinnacle of high-capacity manufacturing technology, engineered for superior performance and reliability in demanding industrial environments.
Fully Automatic High-capacity TYC60 EBM Blue Molding Machine with HDPE PP PE Bottles 0

Key Features

  • Exceptional production capacity for high-volume manufacturing
  • Advanced EBM (Electron Beam Melting) technology for precision molding
  • Robust construction designed for continuous operation
  • Energy-efficient performance with optimized power consumption
  • User-friendly interface with advanced control systems
  • Minimal maintenance requirements and easy service access


Technical Parameters


Max. Product Volume (L) 6
Theoretical Output (PC/h) 1500
Screw Diameter (mm) 60
Screw L/D ratio (L/D) 24:30
Screw drive power (KW) 15-18.5
Screw heating capacity (KW) 10.8-12
Output of HDPE (kg/h) 60-75
Oil pump drive power (KW) 5.5
Clamping force (KN) 70
Platen size (W×H) mm 368×430
Platen Opening Stroke (mm) 188-538
Max. Die diameter (mm) 150
Central distance of bi-die (mm) 150-200
Max. Die Diameter(Bi-die) (mm) 100
Central distance of three-die (mm) 100-120
Max. Die Diameter(three-die) (mm) 60
Central distance of four-die (mm) 85
Max. Die Diameter(four-die) (mm) 30
Average Energy Consumption (kw/h) 16.5
Blowing pressure (Mpa) 0.6
Air Consumption (M³/MIN) 0.5
Cooling water pressure (Mpa) 0.3
Water consumption (L/MIN) 50
Size of machine (L×W×H) /m 2.95×1.9×2.5
Weight of machine (TON) 5.5




ZIQIANG MACHINE FACTORY

Fully Automatic High-capacity TYC60 EBM Blue Molding Machine with HDPE PP PE Bottles 1

Fully Automatic High-capacity TYC60 EBM Blue Molding Machine with HDPE PP PE Bottles 2


Fully Automatic High-capacity TYC60 EBM Blue Molding Machine with HDPE PP PE Bottles 3
