ZQ40 High-Efficiency Injection Blow Molding Machine with 65mm Screw Diameter 400KN Clamping Force for 5ml to 1L Bottles

Brand Name: ZQ
Model Number: ZQ 40
MOQ: 1
Price: 30000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Screw Diameter:
65mm
Injection System:
Injection Blow Molding
Pneumatic Valve Connector:
Festo Ex Germany.
Capacity:
100 Tons
Applications:

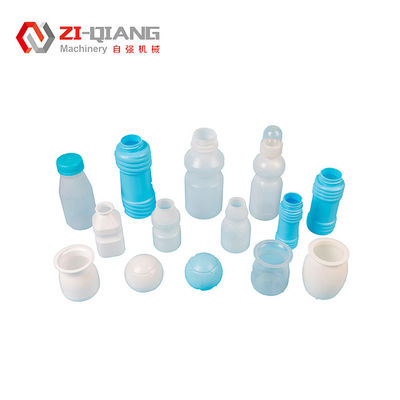

5ml To 1L Small Plastic Bottles
Njection Weight:
260/383g
Powersupply:
220V/380V, 50/60Hz
Trademark:
DAWSON
Model No:
IBM35D
Screw Diameters:
65mm
Head Heating Power:
5.7kw
Material:
Stainless Steel
Voltage:
Customized According To Customer Needs
Application:
Manufacturing Of Bottles, Containers, And Hollow Plastic Products
Blow Stroke:
Depends On Model
Supply Ability:
15 SET/MONTH
Highlight:

65mm Screw Diameter Injection Blow Molding Machine

,

400KN Clamping Force IBM Machine

,

5ml to 1L Capacity Blow Molding Equipment

Product Description

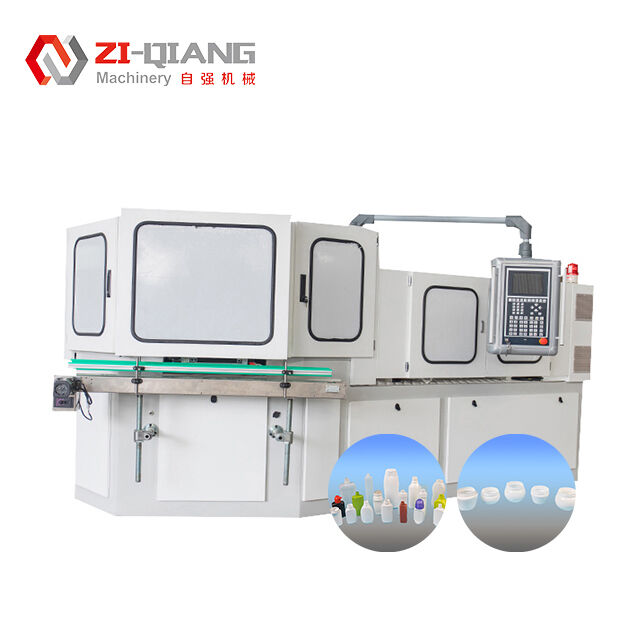

ZQ40 High-Efficiency Fully Automatic Injection Blowing Machine
Advanced electric injection blowing machine specifically designed for high-efficiency production of small bottles. This fully automatic integrated system combines precision injection with optimized blowing capabilities for superior manufacturing performance.
Item Unit ZQ40
Injection System
Screw Diameter mm 40
Screw L/D Ratio 21:1
Injection Weight g 140
Heating Power KW 7.5
Number of Barrel Zones 3+N
Injection Stroke mm 120
Clamping System
Clamping Force of Injection KN 400
Opening Stroke for Injection mm 140
Clamping Force of Blowing KN 60
Opening Stroke for Blowing mm 140
Lifting Height of Rotary Table mm 70
Mould Specifications
Max. Platen Size (L*W) mm 480*340
Mold Thickness mm 180
Diameter of Bottle mm 120
Bottle Height mm 220
Suitable Bottle Height Range mm 1-1000
Stripping Stroke mm 220
Hydraulic System
Hydraulic Pressure MPa 14
Motor Power KW 11
Dry Cycle S 4
Total Power KW 20
Operating Power % 52-70
Additional Specifications
Min. Air Pressure of Compressed Air MPa 0.7-1.2
Compressed Air Capacity M³/min 0.7
Water Flow Rate M³/h 4
Cooling Water Pressure MPa 0.3-0.4
Dimensions (L*W*H) M 3*1.3*1.7
Net Weight Ton 3.8
