ZQ 135 High-Efficiency Fully Automatic High-Yield Integrated PP PE Water Bottle Injection Blowing Machine

Brand Name:	ZQ
Model Number:	ZQ135
MOQ:	1 Set
Price:	145000USD
Packaging Details:	20'Container
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Transport Package:

Film Packing

Powersupply:

380V, 50/60Hz

Clampingforce:

Varies By Model, Typically 50-300 Tons

Station:

Three In One

Controlling System:

Act Technologies

Blow Mold Stroke:

140 Mm

Suitable Bottle Height:

5-2000mm

Maxparisonlength:

Up To 300 Mm

Logo Customized:

Color:

White And Blue

Materialcompatibility:

Thermoplastics Such As PET, PP, PE, PC

Supply Ability:

10 Set/Month

Highlight:

fully automatic PP PE bottle machine

high-efficiency injection blow molding machine

integrated water bottle blowing machine

Product Description

ZQ 135 Injection Blowing Machine

The ZQ 135 represents the pinnacle of automated manufacturing technology for PP and PE water bottle production. This fully integrated injection blowing machine combines precision engineering with high-efficiency operation to deliver exceptional yield rates and production consistency.

Guarantee: Electric parts: half an year, mechanical parts: one year

Key Features

Fully automated operation with minimal manual intervention
High-efficiency design optimized for PP and PE materials
Integrated injection and blowing processes in single unit
Superior yield rates with consistent product quality
Robust construction for continuous industrial operation
Energy-efficient performance with reduced operational costs

Technical Specifications

Injection System
Screw Diameter	mm	70
Screw L/D	%	22:01
Injection weight	g	650
Heating power	KW	30
Number of barrel zone		6+N
Injection stroke	mm	200
Clamping System
Clamping force of injection	KN	1350
Opening stroke for injection	mm	140
Clamping force of blowing	KN	200
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	1300*500
Mold thickness	mm	280
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	280
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	37+37
Dry cycle	S	4
Total Power	KW	95
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	5.522.4
Net weight	Ton	18

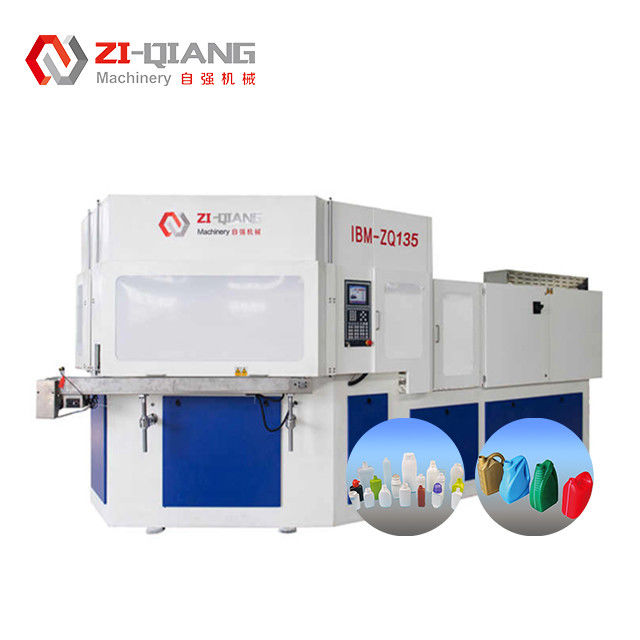

ZQ 135 High-Efficiency Fully Automatic High-Yield Integrated PP PE Water Bottle Injection Blowing Machine 1

ZQ 135 High-Efficiency Fully Automatic High-Yield Integrated PP PE Water Bottle Injection Blowing Machine 2

ZIQIANG MACHINE FACTORY

ZQ 135 High-Efficiency Fully Automatic High-Yield Integrated PP PE Water Bottle Injection Blowing Machine 3

ZQ 135 High-Efficiency Fully Automatic High-Yield Integrated PP PE Water Bottle Injection Blowing Machine 4
