Hot Sales Automatic ZQ 40 PP PE PC Bottle Electric Injesction Blow Molding Machine with mold

Brand Name: ZQ
Model Number: ZQ40
MOQ: 1
Price: 35000USD
Packaging Details: 20'Container
Payment Terms: D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Condition:
New
Warranty:
1 Year
Blow Moulding Type:
Injection Blow Moulding,Stretch Blow Moulding,Extrusion Blow Moulding
Plastic Processed:
PET,PP,PE,PC
Application:
Bottle,medical,cosmetic
Dimension(l*w*h):
3.5x1.3x1.7
Power(w):
20KW
Color:
Can Be Customized
Material:
4cr13Stainless Steel
Screw Diameter:
40mm,105mm,75MM
Supply Ability:
10 set/ Month
Highlight:

automatic PP PE bottle molding machine

,

electric injection blow molding machine

,

ZQ 40 blow molding machine with warranty

Product Description

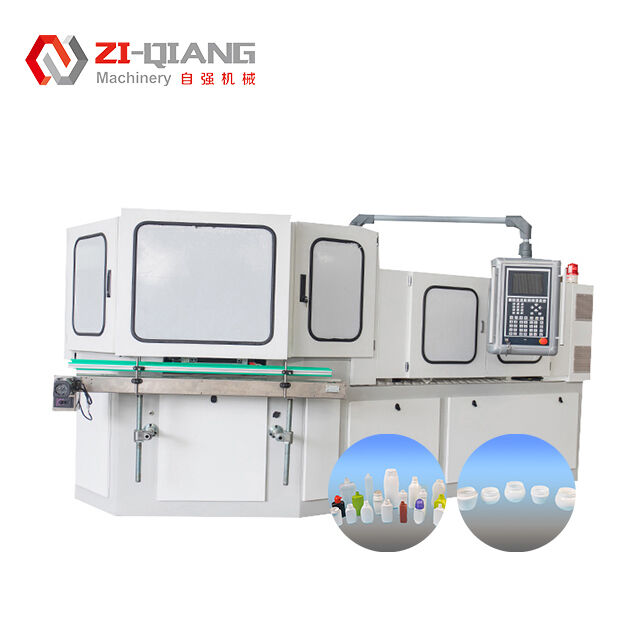

Hot Sales Automatic ZQ 40 PP PE PC Bottle Electric Injection Blow Molding Machine
Product Description
Specializing in injection blow molding, the IBM Blow Moulding Machine utilizes advanced technology to create bottles and containers with exceptional precision and consistency. This method ensures uniform wall thickness and superior product quality, making it ideal for a wide range of applications.
Hot Sales Automatic ZQ 40 PP PE PC Bottle Electric Injesction Blow Molding Machine with mold 0 Hot Sales Automatic ZQ 40 PP PE PC Bottle Electric Injesction Blow Molding Machine with mold 1
Technical Parameters
Injection System Specifications
Screw Diameter mm 45
Screw L/D % 22:1
Injection weight g 260
Heating power KW 7.5
Number of barrel zone 3+N
Injection stroke mm 120
Clamping System Specifications
Clamping force of injection KN 400
Opening stroke for injection mm 165
Clamping force of blowing KN 60
Opening stroke for blowing mm 140
Lifting height of rotary table mm 70
Hydraulic System Specifications
Hydraulic Pressure Map 14
Motor power KW 11
Dry cycle S 3.5
Total Power KW 20
Operating power % 52-70
Working Principle
  • Preform injection: The bottle neck will be molded accurately after injecting the material into the cavity. After proper control, the mold opens and the mandrel and shape blank are transferred to the injection molding station.
  • Blow molding: Blowing action is done at this stage, with molding completed after cooling (bottle shape determines the number of cavities). Air comes out from the mandrel, filling the cavity and making it cling to the mold. Then the mold opens and turns the mandrel and bottle to the release station.
  • Stripper: The bottles are automatically ejected from the cold rods at this position and then packed. The three actions of injection, blowing, and ejection work simultaneously, making the machine highly efficient with low waste production.
Hot Sales Automatic ZQ 40 PP PE PC Bottle Electric Injesction Blow Molding Machine with mold 2

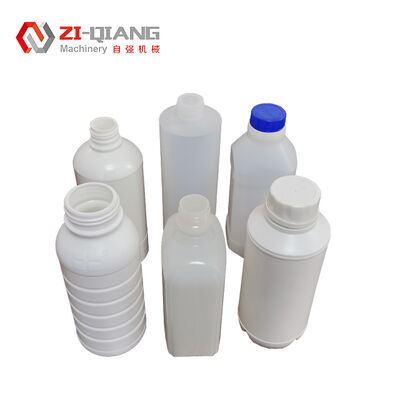

Samples
Hot Sales Automatic ZQ 40 PP PE PC Bottle Electric Injesction Blow Molding Machine with mold 3

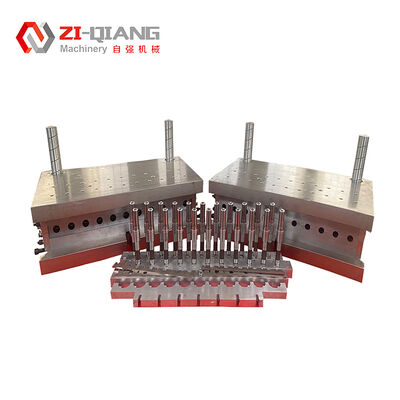

Mold
Hot Sales Automatic ZQ 40 PP PE PC Bottle Electric Injesction Blow Molding Machine with mold 4 Hot Sales Automatic ZQ 40 PP PE PC Bottle Electric Injesction Blow Molding Machine with mold 5
Certificate
Hot Sales Automatic ZQ 40 PP PE PC Bottle Electric Injesction Blow Molding Machine with mold 6
FAQ
Q: What is the brand name of the injection blow molding machine?
A: The brand name is Zl-Qiang.
Q: What is the model number of the injection blow molding machine?
A: The model number is ZQ80.
Q: Where is the injection blow molding machine manufactured?
A: The machine is manufactured in China.
Q: What certifications does the injection blow molding machine have?
A: The machine is certified with CE.
Q: What are the accepted payment terms for purchasing the injection blow molding machine?
A: The accepted payment terms are D/A, D/P, T/T, and Western Union.
Hot Sales Automatic ZQ 40 PP PE PC Bottle Electric Injesction Blow Molding Machine with mold 7
