IBM Injection Molding Blow Molding Machine With Fully Automatic European Design Suitable For Small Plastic Bottles Ranging From 5ml To 2L

Brand Name: ZQ
Model Number: ZQ40
MOQ: 1
Price: 40000USD
Packaging Details: 20' Container
Payment Terms: T/T,D/A,D/P
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Color:
Customize
Material:
Plastic
Injection Mold Stroke:
120 Mm
Head Heating Power:
7.5kw
Net Weight:
3.8ton
Control System:
PLC
Applications:
5ml To 2L Small Plastic Bottles
Controlling System:
Act Technologies
Application:
Bottle, Medical, Cosmetic
Coolingsystem:
Water Cooling With Temperature Control
Clamping Force Of Injection:
400 KN
Supply Ability:
20 SET/MONTH
Highlight:

400 KN Clamping Force IBM Injection Blow Molding Machine

,

European Design Blow Molding Machine

,

Water Cooling Injection Blow Molding Machine

Product Description

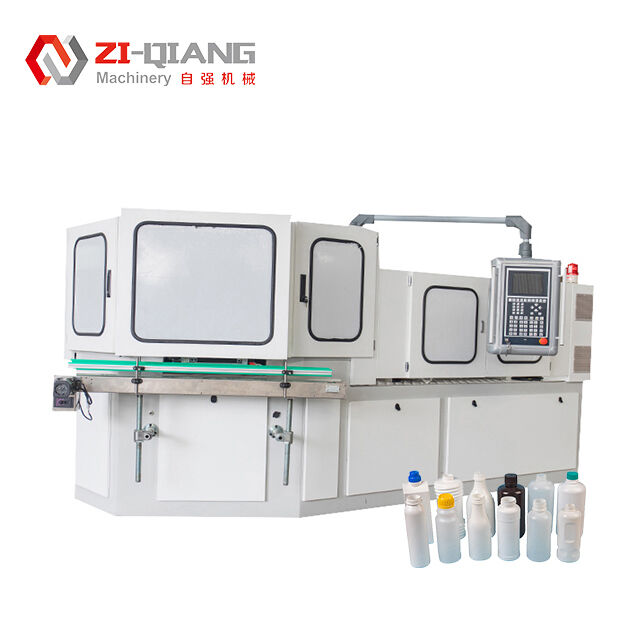

Automatic European Design Small Plastic Bottles IBM Injection Blow Molding Machine
Company Profile
Zhangjiagang Ziqiang Machinery Co, Ltd. specializes in the research, development, production, sales and trade of automatic one-step injection-blow molding machines and supporting molds. Located in Zhangjiagang City with convenient transportation, the company has an excellent R&D team with extensive experience in injection-blowing technology.
Our products serve pharmaceutical, food, health care, cosmetic, and other plastic packaging industries. We can produce 1ml-1000ml plastic containers using materials including HDPE, LDPE, PP, PS, ABS, EVA, PCTG, and environmental corn materials.
Committed to "self-reliance, integrity, pragmatism, innovation and responsibility", we provide complete turnkey solutions for high-quality injection-blowing products.
IBM Injection Molding Blow Molding Machine With Fully Automatic European Design Suitable For Small Plastic Bottles Ranging From 5ml To 2L 0
Performance Advantages
  • One-step molding efficient production: Three-station rotary technology completes injection molding, blow molding, and demolding simultaneously for integrated production without secondary processing.
  • Ultra-high molding accuracy: Produces smooth, burr-free bottles with thread size error ≤0.1mm, ensuring perfect sealing for containers.
  • Energy saving and material adaptability: Servo motor technology reduces energy consumption by 30% and handles various materials including PE, PP, PS, HDPE with optimized parameters.

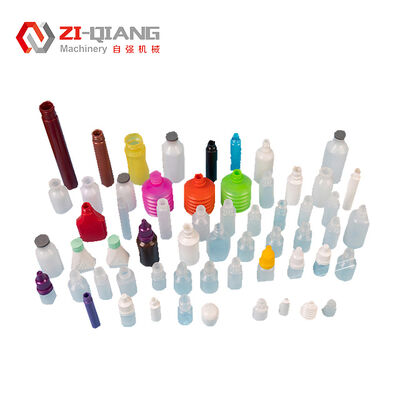

Product Samples
IBM Injection Molding Blow Molding Machine With Fully Automatic European Design Suitable For Small Plastic Bottles Ranging From 5ml To 2L 1
Technical Parameters
Injection System Specifications
Screw Diameter mm 45
Screw L/D % 22:1
Injection weight g 260
Heating power KW 7.5
Number of barrel zone 3+N
Injection stroke mm 120
Clamping System Specifications
Clamping force of injection KN 400
Opening stroke for injection mm 165
Clamping force of blowing KN 60
Opening stroke for blowing mm 140
Lifting height of rotary table mm 70
Hydraulic System Specifications
Hydraulic Pressure Map 14
Motor power KW 11
Dry cycle S 3.5
Total Power KW 20
Operating power % 52-70
Support and Services
  • On-site installation and training services
  • Routine maintenance and troubleshooting support
  • Remote technical assistance
  • Spare parts and replacement components availability
  • Upgrades and customization services
  • Comprehensive documentation and user manuals
  • Continuous product improvement and updates
Packing and Shipping
IBM Injection Molding Blow Molding Machine With Fully Automatic European Design Suitable For Small Plastic Bottles Ranging From 5ml To 2L 2
Frequently Asked Questions
Q: What is the brand name of this injection blow molding machine?
A: The brand name of this machine is Zl-Qiang.
Q: What is the model number of this injection blow molding machine?
A: The model number of this machine is ZQ40.
Q: Where is this injection blow molding machine manufactured?
A: This machine is manufactured in China.
Q: What is the minimum order quantity for this injection blow molding machine?
A: The minimum order quantity for this machine is 1 set.
Q: What are the accepted payment terms for purchasing this injection blow molding machine?
A: The accepted payment terms for this machine are D/A, D/P, T/T, and Western Union.
