IBM Injection Blow Molding Machine
>
ZQ40 Injection Blow Molding Machine with 420*340 mm Platen Size 55mm Screw Diameter and 40/50 Injection System for Small Scale Precision Production
All Category

IBM Injection Blow Molding Machine

Extrusion Blow Molding Machine

Injection Stretch Blow Molding Machine

Bottle Mold

Bottle Cap Mold

MTC Mould Temperature Controller

Injection Mold Chiller

Semi Automatic Blow Molding Machine

Bottle Packaging Machine
Contact Us
Ms. Isabel Zhu
isabel@ziqiangmachine.com
+8613913614902
wechat +8613913614902
Contact Now

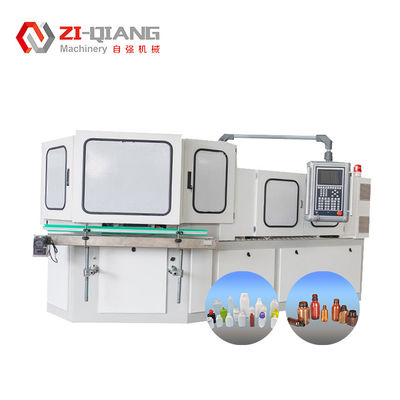

ZQ40 Injection Blow Molding Machine with 420*340 mm Platen Size 55mm Screw Diameter and 40/50 Injection System for Small Scale Precision Production
  • name
  • name
  • name
  • name
  • name
  • name

ZQ40 Injection Blow Molding Machine with 420*340 mm Platen Size 55mm Screw Diameter and 40/50 Injection System for Small Scale Precision Production

Brand Name: ZQ
Model Number: ZQ 40
MOQ: 1
Price: 30000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Platen Size:
420*340 Mm
Trademark:
DAWSON
Model No:
IBM35D
Automation Grade:
Automatic
More Application:
Milk & Yogurt Bottle
Suitable Material:
HDPE, PP
Injectioncapacity:
Depends On Model, Generally 10-100 Grams
Screw Diamater:
55mm
Pneumatic Valve Connector:
Valqua
Oil Seal:
Valqua
Injection System:
40/50
Blow Mold Stroke:
120 Mm
Volume:
5ml To 1000ml
Materialcompatibility:
Suitable For PET, PP, PE, PVC And Other Thermoplastics
Dry Cycle:
4 S
Supply Ability:
20 SET/MONTH
Highlight:

420*340 mm Platen Size Injection Blow Molding Machine

,

55mm Screw Diameter IBM Machine

,

40/50 Injection System Blow Molding Equipment

Product Description
ZQ40 Injection Blow Molding Machine
Compact Precision Production Solution

Designed for small batch production, segmented fields, and research & development applications. This fully automatic machine delivers efficient operation with precision results.

Technical Specifications
Injection System
Item Unit ZQ40
Screw Diameter mm 40
Screw L/D % 21:1
Injection weight g 140
Heating power KW 7.5
Number of barrel zone 3+N
Injection stroke mm 120
Clamping System
Item Unit ZQ40
Clamping force of injection KN 400
Opening stroke for injection mm 140
Clamping force of blowing KN 60
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould Specifications
Item Unit ZQ40
Max.Platen size(L*W) mm 480*340
Mold thickness mm 180
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 220
Hydraulic System
Item Unit ZQ40
Hydraulic Pressure Map 14
Motor power KW 11
Dry cycle S 4
Total Power KW 20
Operating power % 52-70
Additional Specifications
Item Unit ZQ40
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 3*1.3*1.7
Net weight Ton 3.8
ZQ40 Injection Blow Molding Machine with 420*340 mm Platen Size 55mm Screw Diameter and 40/50 Injection System for Small Scale Precision Production 0
