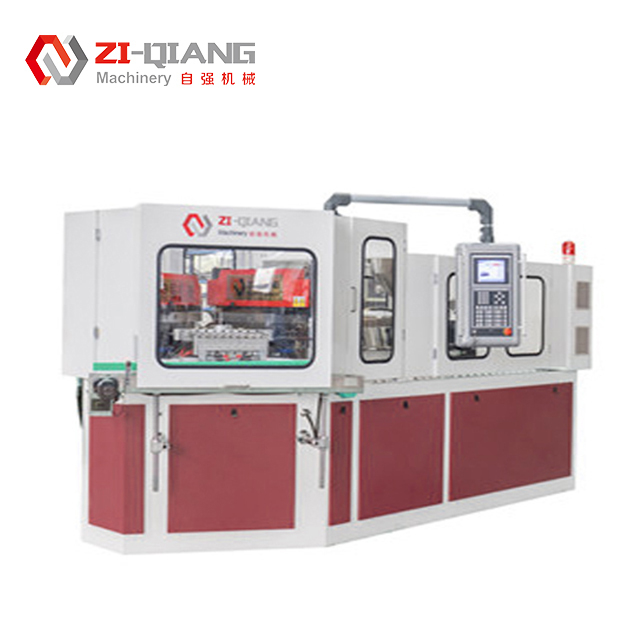

High-Efficiency Fully Electric IBM Injection Blow Molding Machine with 50/60Hz 120 mm Blow Mold Stroke and 40 mm Screw Diameter

Brand Name: ZI QIANG
Model Number: ZQ 60
MOQ: 1
Price: 40000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Machine Dimension:
3.8*1.4*1.8 M
Voltage:
Customized According To Customer Needs
Frequency:
50/60Hz
Blow Mold Stroke:
120 Mm
Electronic Rulers:
Gefran
Color:
White
Power Source:
Electric
Screw Diameter:
40 Mm
Injection Unit:
Single Or Double
Stripping Stroke:
220 Mm
Automatic:
Full Automatic
Production Capacity:
As Per Samples
Automation:
Fully Automatic
Njection Weight:
260/383g
Supply Ability:
20 SET/MONTH
Highlight:

50/60Hz Blow Molding Machine

,

120 mm Blow Mold Stroke IBM Injection Blow Molding Machine

,

40 mm Screw Diameter Integrated Blow Molding Machine

Product Description
High-Efficiency Fully Electric Integrated Blow Molding Machine
This advanced blow molding machine combines high performance with energy efficiency, designed for precision manufacturing of plastic containers and bottles.
Technical Specifications
Injection System
Item Unit ZQ60
Screw Diameter mm 45
Screw L/D % 22:1
Injection weight g 260
Heating power KW 14
Number of barrel zone 3+N
Injection stroke mm 160
Clamping System
Item Unit ZQ60
Clamping force of injection KN 600
Opening stroke for injection mm 140
Clamping force of blowing KN 100
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould
Item Unit ZQ60
Max.Platen size(L*W) mm 600*390
Mold thickness mm 240
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 230
Hydraulic system
Item Unit ZQ60
Hydraulic Pressure Map 14
Motor power KW 22
Dry cycle S 4
Total Power KW 37
Operating power % 52-70
Other Specifications
Item Unit ZQ60
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 3.5*1.4*1.8
Net weight Ton 5
