IBM Injection Blow Molding Machine with 100 Tons Capacity 260g Injection Weight and 600KN Clamping Force for Plastic Products

Brand Name: ZI QIANG
Model Number: ZQ 60
MOQ: 1
Price: 40000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Capacity:
100 Tons
Njection Weight:
260/383g
Product Dia:
≤80 Mm
Transport Package:
Film Packing
Electronic Rulers:
Italy Gefran
Injection Weight:
190/260g
Injection Pressure:
200 MPa
Suitable Material:
HDPE,PP
Application:
Plastic Products Manufacturing
Cooling Water Pressure:
0.3-0.4 MPa
Head Heating Power:
5.7kw
Suitable Bottle Range:
5ml-2L
Supply Ability:
20 SET/MONTH
Highlight:

100 Tons Capacity Blow Molding Machine

,

260g Injection Weight Injection Blow Molder

,

600KN Clamping Force IBM Injection Blow Molding Machine

Product Description

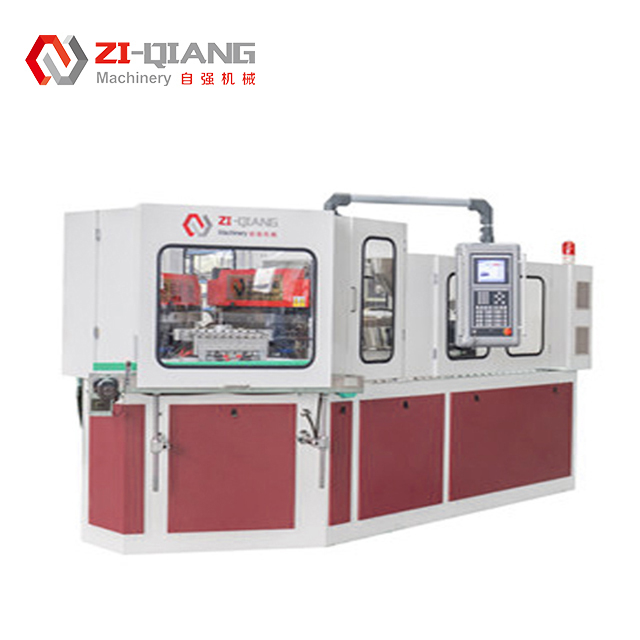

ZQ60 Blow Molding Machine

High-efficiency integration solution with over 20 years of specialization in the blow molding industry.

Technical Specifications
Injection System
Item Unit ZQ60
Screw Diameter mm 45
Screw L/D % 22:1
Injection weight g 260
Heating power KW 14
Number of barrel zone 3+N
Injection stroke mm 160
Clamping System
Item Unit ZQ60
Clamping force of injection KN 600
Opening stroke for injection mm 140
Clamping force of blowing KN 100
Opening stroke for blowing mm 140
Lifting height of rotary table mm 70
Mold Specifications
Item Unit ZQ60
Max.Platen size(L*W) mm 600*390
Mold thickness mm 240
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 230
Hydraulic System
Item Unit ZQ60
Hydraulic Pressure Map 14
Motor power KW 22
Dry cycle S 4
Total Power KW 37
Operating power % 52-70
Additional Specifications
Item Unit ZQ60
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 3.5*1.4*1.8
Net weight Ton 5
