ZQ110 IBM Injection Blow Molding Machine with 5ml To 2L Hollow Part Volume 14Map Hydraulic Pressure and 1~2 Operator Requirement

Brand Name: ZI QIANG
Model Number: ZQ110
MOQ: 1
Price: 95000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Hollow Part Volume:
5ml To 2L
Pneumatic Valve Connector:
Valqua
Plastic Processed:
PET,PP,PE,PC,PS,HDPE
Controlling System:
Act Technologies
Hydraulic Pressure:
14Map
Condition:
New
Material:
Plastic
Mould Material:
S136, P20, 4Cr13
Manpower Required:
1~2 Operator
Injection System:
40/50
Origin:
Jiangsu Zhangjiagang
Compressed Air Capacity:
0.7M³/min
Made In:
China
Supply Ability:
15 SET/MONTH
Highlight:

5ml To 2L Hollow Part Volume IBM Injection Blow Molding Machine

,

14Map Hydraulic Pressure Injection Blow Molding Machine

,

1~2 Operator Requirement Blow Molding Machine

Product Description
ZQ110 Large Hollow Forming Machine
Product Overview

Professional manufacturer of large hollow forming machines, high-precision injection blow molds, and complete supporting auxiliary equipment. The ZQ110 model delivers exceptional performance for industrial-scale plastic container production.

Technical Specifications
Injection System
Specification Unit Value
Screw Diameter mm 65
Screw L/D Ratio % 22:1
Injection Weight g 415
Heating Power KW 22
Number of Barrel Zones 6+N
Injection Stroke mm 200
Clamping System
Specification Unit Value
Clamping Force (Injection) KN 1100
Opening Stroke (Injection) mm 140
Clamping Force (Blowing) KN 150
Opening Stroke (Blowing) mm 140
Lifting Height of Rotary Table mm 70
Mold Specifications
Specification Unit Value
Max. Platen Size (L*W) mm 1100*460
Mold Thickness mm 280
Bottle Diameter mm 120
Bottle Height mm 220
Suitable Bottle Height Range mm 1-1000
Stripping Stroke mm 260
Hydraulic System
Specification Unit Value
Hydraulic Pressure Map 14
Motor Power KW 37+37
Dry Cycle Time S 4
Total Power KW 90
Operating Power % 52-70
Additional Specifications
Specification Unit Value
Min. Air Pressure MPa 0.7-1.2
Compressed Air Capacity M³/min 0.7
Water Flow Rate M³/h 4
Cooling Water Pressure MPa 0.3-0.4
Machine Dimensions (L*W*H) M 5*1.8*2.2
Net Weight Ton 15

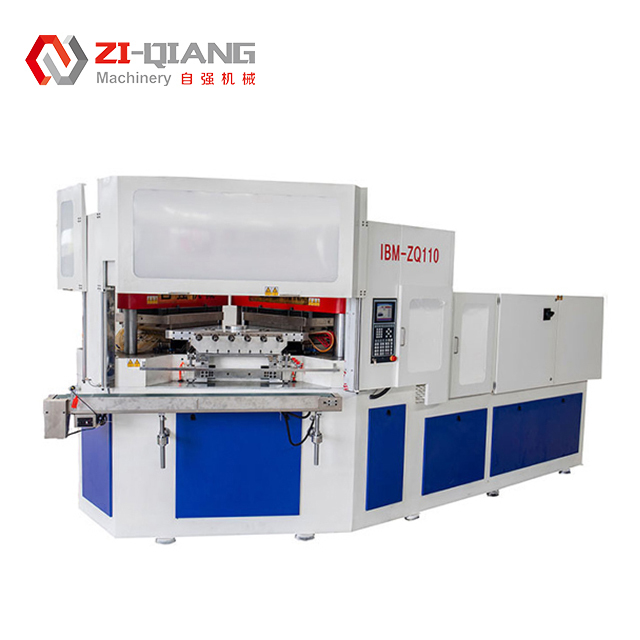

Machine Image
ZQ110 IBM Injection Blow Molding Machine with 5ml To 2L Hollow Part Volume 14Map Hydraulic Pressure and 1~2 Operator Requirement 0
