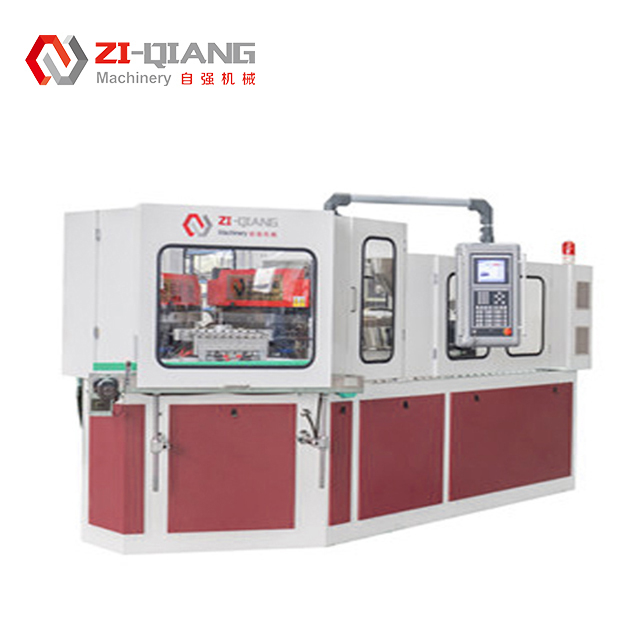

Fully Automatic One-Step Injection Blow Molding Machine for 5ml-2L Bottles with 220mm Max Height and 600KN Clamping Force

Brand Name: ZI QIANG
Model Number: ZQ 60
MOQ: 1
Price: 40000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Suitable Bottle Range:
5ml-2L
Logo Customized:
Yes
Origin:
Jiangsu Zhangjiagang
Operating Power:
52-70%
Power Source:
Electric
Automation:
Automatic
Hollow Part Volume:
5ml To 2L
Max Bottle Height:
220mm
Hs Code:
8477301000
Injection Weight:
314g
Voltage:
220V/380V
Trademark:
DAWSON
Supply Ability:
20 SET/MONTH
Highlight:

220mm Max Bottle Height Injection Blow Molding Machine

,

52-70% Operating Power IBM Machine

,

600KN Clamping Force Blow Molding Machine

Product Description
ZQ 60: Fully Automatic One-Step Injection Blowing Hollow Forming Machine
Technical Specifications
Injection System
Item Unit ZQ60
Screw Diameter mm 45
Screw L/D % 22:1
Injection weight g 260
Heating power KW 14
Number of barrel zone 3+N
Injection stroke mm 160
Clamping System
Item Unit ZQ60
Clamping force of injection KN 600
Opening stroke for injection mm 140
Clamping force of blowing KN 100
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould Specifications
Item Unit ZQ60
Max.Platen size(L*W) mm 600*390
Mold thickness mm 240
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 230
Hydraulic System
Item Unit ZQ60
Hydraulic Pressure Map 14
Motor power KW 22
Dry cycle S 4
Total Power KW 37
Operating power % 52-70
Other Specifications
Item Unit ZQ60
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 3.5*1.4*1.8
Net weight Ton 5
