ZQ80 IBM Injection Blow Molding Machine for 5ml to 2L Small Plastic Bottles with 220V/380V/415V Power Supply and 10kw Heating Capacity

Brand Name: ZI QIANG
Model Number: ZQ 80
MOQ: 1
Price: 60000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Warranty:
1 Year
Trademark:
DAWSON
Applications:
5ml To 2L Small Plastic Bottles
Power Supply:
220V/380V/415V
Heating Capacity:
10kw
Compressed Air Capacity:
0.7M³/min
Injection Stroke:
120mm
Origin:
Jiangsu Zhangjiagang
Hydraulic Pressure:
14Map
Marketing Type:
Ordinary Product
Mold Thickness:
150-400mm
Injection Clamping Force:
1100 KN
Supply Ability:
20 SET/MONTH
Highlight:

5ml to 2L small plastic bottles IBM Injection Blow Molding Machine

,

220V/380V/415V power supply Blow Molding Machine

,

10kw heating capacity Injection Blow Molder

Product Description
ZQ80 Blow Molding Machine for Hollow Forming
High-performance blow molding machine designed for precision hollow forming applications in industrial manufacturing.
Injection System Specifications
Item Unit ZQ80
Screw Diameter mm 55
Screw L/D % 22:1
Injection weight g 314
Heating power KW 20
Number of barrel zone 5+N
Injection stroke mm 160
Clamping System Specifications
Item Unit ZQ80
Clamping force of injection KN 800
Opening stroke for injection mm 140
Clamping force of blowing KN 120
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould Specifications
Item Unit ZQ80
Max.Platen size(L*W) mm 800*400
Mold thickness mm 280
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 230
Hydraulic System Specifications
Item Unit ZQ80
Hydraulic Pressure Map 14
Motor power KW 22+22
Dry cycle S 4
Total Power KW 70
Operating power % 52-70
Additional Specifications
Item Unit ZQ80
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 4.5*1.6*2
Net weight Ton 10

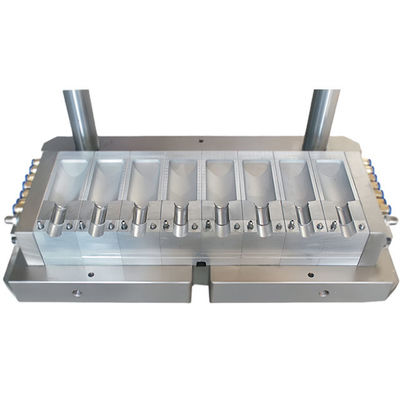

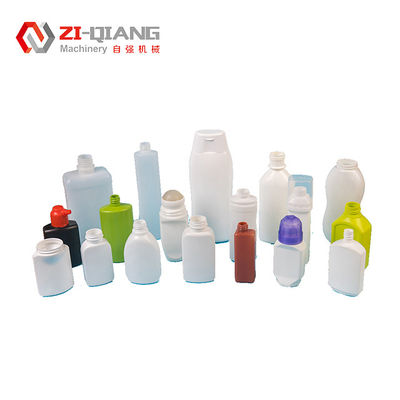

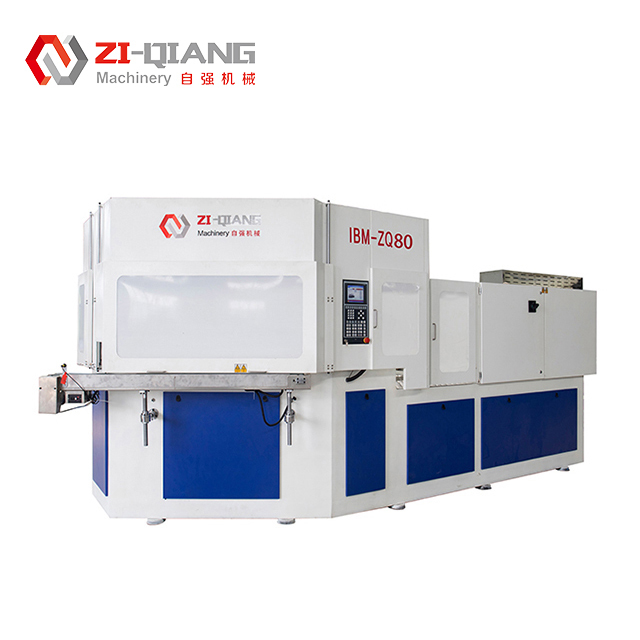

Product Images
ZQ80 IBM Injection Blow Molding Machine for 5ml to 2L Small Plastic Bottles with 220V/380V/415V Power Supply and 10kw Heating Capacity 0 ZQ80 IBM Injection Blow Molding Machine for 5ml to 2L Small Plastic Bottles with 220V/380V/415V Power Supply and 10kw Heating Capacity 1
