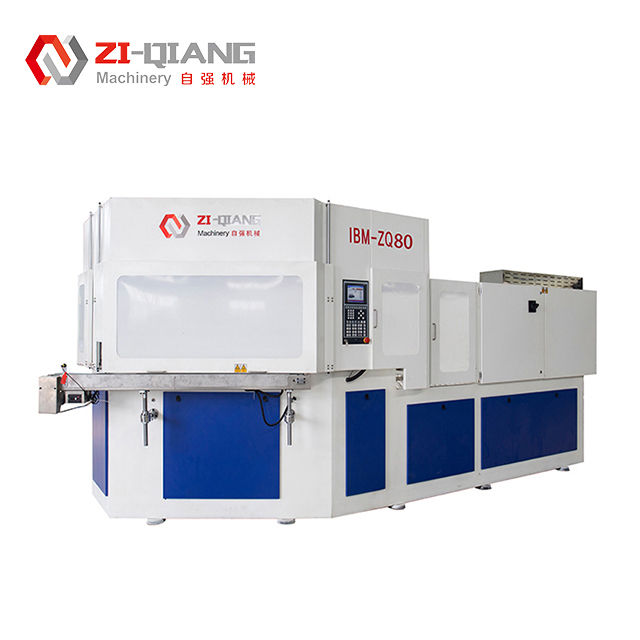

Fully Automatic One-Step Injection Blow Molding Machine with 120 mm Stroke and 1-2000mm Bottle Height

Brand Name: ZI QIANG
Model Number: ZQ 80
MOQ: 1
Price: 60000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Voltage:
Customized According To Customer Needs
Automatic:
Full Automatic
Model No:
IBM35D
Injection Mold Stroke:
120 Mm
Suitable Bottle Height:
1-2000mm
Station:
Three In One
Control System:
PLC
Water Flowage:
4M³/h
Hydraulic Pressure:
14 MPa
Controlling System:
Act Technologies
Pneumatic Valve Connector:
Festo
Head Heating Power:
5.7kw
Supply Ability:
15 SET/MONTH
Highlight:

120 mm Stroke Injection Blow Molding Machine

,

1-2000mm Bottle Height IBM Machine

,

14 MPa Hydraulic Blow Molding Equipment

Product Description
Fully Automatic One-Step Injection Blowing Hollow Forming Machine
Injection System Specifications
Item Unit ZQ80
Screw Diameter mm 55
Screw L/D % 22:1
Injection weight g 314
Heating power KW 20
Number of barrel zone 5+N
Injection stroke mm 160
Clamping System Specifications
Item Unit ZQ80
Clamping force of injection KN 800
Opening stroke for injection mm 140
Clamping force of blowing KN 120
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mold Specifications
Item Unit ZQ80
Max.Platen size(L*W) mm 800*400
Mold thickness mm 280
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 230
Hydraulic System Specifications
Item Unit ZQ80
Hydraulic Pressure Map 14
Motor power KW 22+22
Dry cycle S 4
Total Power KW 70
Operating power % 52-70
Additional Specifications
Item Unit ZQ80
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 4.5*1.6*2
Net weight Ton 10
