Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke

Brand Name: ZI QIANG
Model Number: ZQ 110
MOQ: 1
Price: 95000USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Suitable Material:
HDPE, PP
Max. Opening Stroke:
200-1000 Mm
Transport Package:
Film Packing
Blow Unit:
Single
Stripping Stroke:
260 Mm
Blow Moulding Type:
Injection Blow Moulding
Heating Power:
30kw
More Application:
Milk & Yogurt Bottle
Injection Clamping:
600KN
Blow Mold Stroke:
120 Mm
Production Capacity:
As Per Samples
Station:
Three In One
Injection Clamping Force:
1100 KN
Color:
White
Supply Ability:
15 SET/MONTH
Highlight:

200-1000 mm Opening Stroke Injection Blow Molding Machine

,

30kw Heating Power IBM Machine

,

260 mm Stripping Stroke Blow Molding Equipment

Product Description

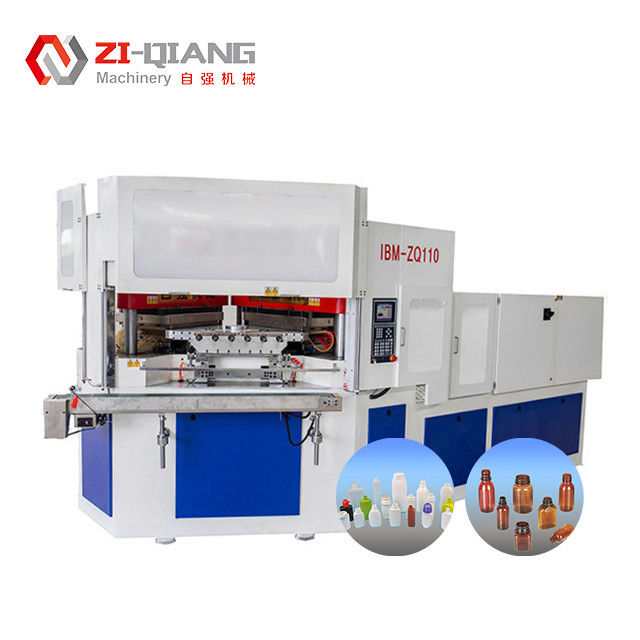

ZQ 110: Large-Scale Hollow Molding Machine
A high-performance injection molding machine with over 20 years of industry experience, designed for precision plastic product manufacturing.
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke 0
Technical Specifications
Item Unit ZQ110
Injection System
Screw Diameter mm 65
Screw L/D % 22:1
Injection weight g 415
Heating power KW 22
Number of barrel zone 6+N
Injection stroke mm 200
Clamping System
Clamping force of injection KN 1100
Opening stroke for injection mm 140
Clamping force of blowing KN 150
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould
Max.Platen size(L*W) mm 1100*460
Mold thickness mm 280
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 260
Hydraulic system
Hydraulic Pressure Map 14
Motor power KW 37+37
Dry cycle S 4
Total Power KW 90
Operating power % 52-70
Others
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 5*1.8*2.2
Net weight Ton 15
Large-scale Injection Blow Molding Machine with 200-1000 mm Opening Stroke 30kw Heating Power and 260 mm Stripping Stroke 1
