Good price online

products details

Home > Products >
IBM Injection Blow Molding Machine
>
ZQ 40 Injection Blow Molding Machine with 400KN Clamping Force 11KW Motor Power and 14 Mpa Hydraulic Pressure for High Efficiency Production
All Category

IBM Injection Blow Molding Machine

Extrusion Blow Molding Machine

Injection Stretch Blow Molding Machine

Bottle Mold

Bottle Cap Mold

MTC Mould Temperature Controller

Injection Mold Chiller

Semi Automatic Blow Molding Machine

Bottle Packaging Machine
Contact Us
Ms. Isabel Zhu
isabel@ziqiangmachine.com
+8613913614902
wechat +8613913614902
Contact Now

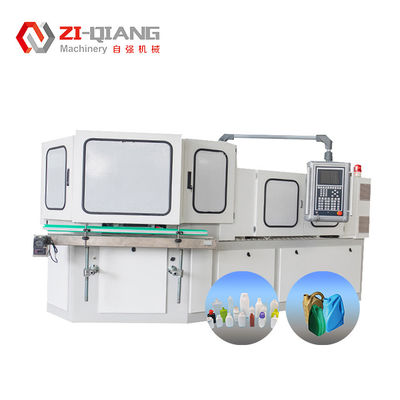

ZQ 40 Injection Blow Molding Machine with 400KN Clamping Force 11KW Motor Power and 14 Mpa Hydraulic Pressure for High Efficiency Production
  • name
  • name
  • name
  • name
  • name
  • name

ZQ 40 Injection Blow Molding Machine with 400KN Clamping Force 11KW Motor Power and 14 Mpa Hydraulic Pressure for High Efficiency Production

Brand Name: ZI QIANG
Model Number: ZQ 40
MOQ: 1
Price: 30000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Material:
Plastic
Production Capacity:
As Per Samples
Plastic Materials:
PP, HDPE, PE, PE/PP
Capacity:
10-500ml
Suitable Material:
HDPE,PP
Color:
White
Injection Pressure:
10-200 MPa
Suitable Materials:
PP, HDPE, PE/PP
Control System:
PLC
Power:
380V/50Hz
Hydraulic Pressure:
14 Map
Operating Power:
52-70%
Blow Molding Type:
Injection Blow Molding
Warranty:
1 Year
Heating Capacity:
10kw
Supply Ability:
15 SET/MONTH
Highlight:

400KN Clamping Force Injection Blow Molding Machine

,

11KW Motor Power IBM Machine

,

14 Mpa Hydraulic Pressure Blow Molding Machine

Product Description
ZQ 40 Injection Blown Hollow Forming Machine
A compact, high-efficiency machine specialized for manufacturing injection blown hollow forming with superior quality output.
Technical Specifications
Item Unit ZQ40
Injection System
Screw Diameter mm 40
Screw L/D % 21:1
Injection weight g 140
Heating power KW 7.5
Number of barrel zone 3+N
Injection stroke mm 120
Clamping System
Clamping force of injection KN 400
Opening stroke for injection mm 140
Clamping force of blowing KN 60
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould
Max.Platen size(L*W) mm 480*340
Mold thickness mm 180
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 220
Hydraulic system
Hydraulic Pressure Map 14
Motor power KW 11
Dry cycle S 4
Total Power KW 20
Operating power % 52-70
Others
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 3*1.3*1.7
Net weight Ton 3.8
