ZQ 80 High Efficiency Fully Automatic Injection Blow Molding Machine for 220mm Bottle Height and 5ml To 2L Hollow Part Volume with 800KN Clamping Force
  • name
  • name
  • name
  • name
  • name
  • name
  • name

ZQ 80 High Efficiency Fully Automatic Injection Blow Molding Machine for 220mm Bottle Height and 5ml To 2L Hollow Part Volume with 800KN Clamping Force

Brand Name: ZI QIANG
Model Number: ZQ 80
MOQ: 1
Price: 60000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Bottle Height:
220mm
Blow Stroke:
Depends On Model
Blow Moulding Type:
Injection Blow Moulding
Hollow Part Volume:
5ml To 2L
Controlling System:
Act Technologies
Injection Stroke:
180mm
Application:
Bottle Production
Trademark:
DAWSON
Blow Molding Type:
Injection Blow Molding
Marketing Type:
Ordinary Product
Applications:
5ml To 2L Small Plastic Bottles
Clamping System:
Toggle Type Clamping System
Origin:
Jiangsu Zhangjiagang
Supply Ability:
15 SET/MONTH
Highlight:

220mm Bottle Height Injection Blow Molding Machine

,

5ml To 2L Hollow Part Volume IBM Machine

,

800KN Clamping Force Blow Molding Machine

Product Description
ZQ 80 High-Efficiency Fully Automatic Injection Blow Molding Machine
The ZQ 80 is a state-of-the-art, fully automatic integrated injection blow molding machine designed for producing plastic bottles, beverage containers, and cosmetic packaging with exceptional efficiency and precision.
Technical Specifications
Injection System
Screw Diameter mm 55
Screw L/D % 22:1
Injection weight g 314
Heating power KW 20
Number of barrel zone 5+N
Injection stroke mm 160
Clamping System
Clamping force of injection KN 800
Opening stroke for injection mm 140
Clamping force of blowing KN 120
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould Specifications
Max.Platen size(L*W) mm 800*400
Mold thickness mm 280
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 230
Hydraulic System
Hydraulic Pressure Map 14
Motor power KW 22+22
Dry cycle S 4
Total Power KW 70
Operating power % 52-70
Additional Specifications
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 4.5*1.6*2
Net weight Ton 10

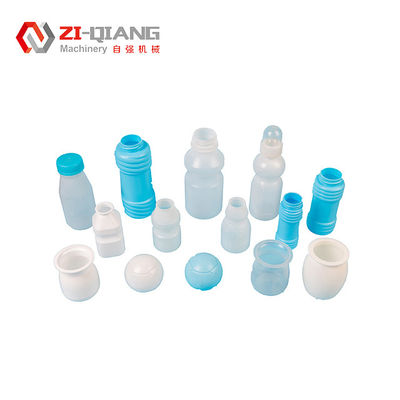

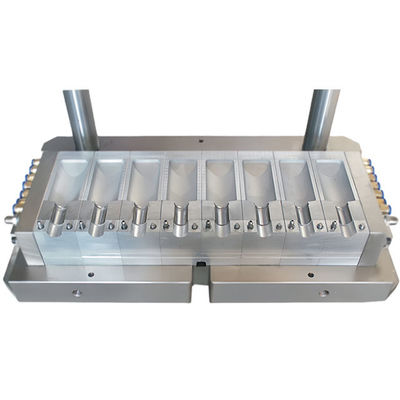

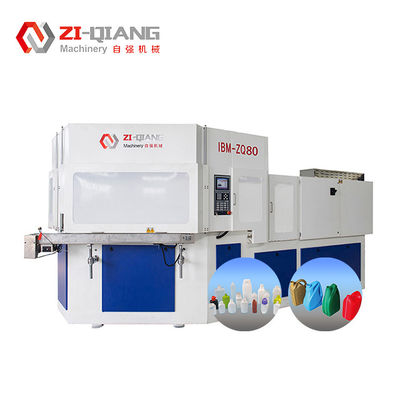

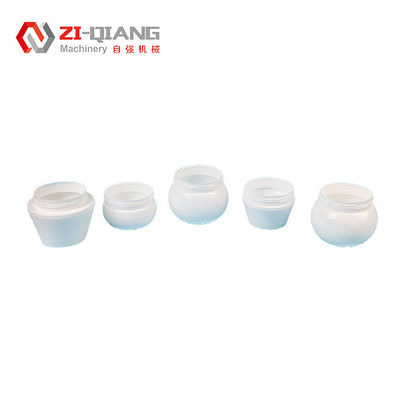

Product Images
ZQ 80 High Efficiency Fully Automatic Injection Blow Molding Machine for 220mm Bottle Height and 5ml To 2L Hollow Part Volume with 800KN Clamping Force 0 ZQ 80 High Efficiency Fully Automatic Injection Blow Molding Machine for 220mm Bottle Height and 5ml To 2L Hollow Part Volume with 800KN Clamping Force 1 ZQ 80 High Efficiency Fully Automatic Injection Blow Molding Machine for 220mm Bottle Height and 5ml To 2L Hollow Part Volume with 800KN Clamping Force 2
