ZQ40 Small and Highly Efficient Injection Blow Molding Machine with 220mm Bottle Height and 14Map Hydraulic Pressure

Brand Name: ZI QIANG
Model Number: ZQ 40
MOQ: 1
Price: 30000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Hydraulic Pressure:
14Map
Machine Appearance Color:
Customizable
Control System:
PLC
Mould Material:
S136, 4Cr13
Model No:
IBM35D
Suitable Material:
HDPE, PP
Machine Type:
Injection Blow Molding Machine
Operating Power:
52-70%
Color:
White
Suitable Bottle Height:
220mm
Material:
Plastic
Production Capacity:
As Per Samples
Hs Code:
8477301000
Supply Ability:
15 SET/MONTH
Highlight:

220mm Bottle Height Injection Blow Molding Machine

,

14Map Hydraulic Pressure IBM Machine

,

52-70% Operating Power Blow Molding Machine

Product Description
ZQ40 Injection Blow Molding Machine
A compact yet highly efficient injection blow molding machine specialized in manufacturing precision plastic bottles with consistent quality.
Technical Specifications
Item Unit ZQ40
Injection System
Screw Diameter mm 40
Screw L/D % 21:1
Injection weight g 140
Heating power KW 7.5
Number of barrel zone 3+N
Injection stroke mm 120
Clamping System
Clamping force of injection KN 400
Opening stroke for injection mm 140
Clamping force of blowing KN 60
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould
Max.Platen size(L*W) mm 480*340
Mold thickness mm 180
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 220
Hydraulic system
Hydraulic Pressure Map 14
Motor power KW 11
Dry cycle S 4
Total Power KW 20
Operating power % 52-70
Others
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 3*1.3*1.7
Net weight Ton 3.8
Product Images

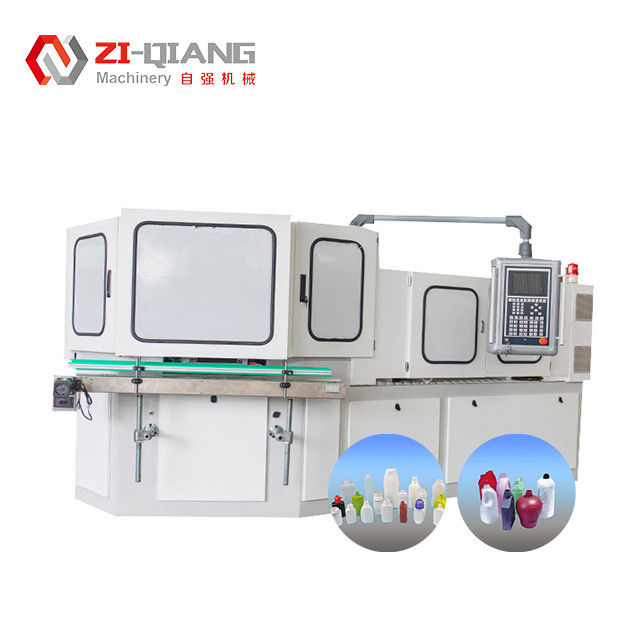

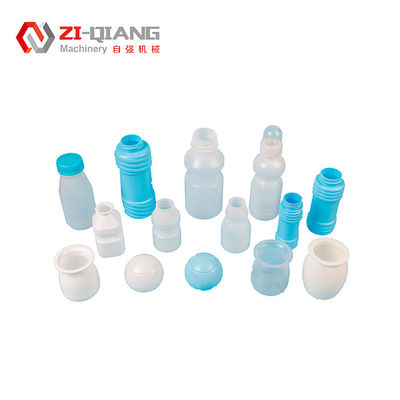

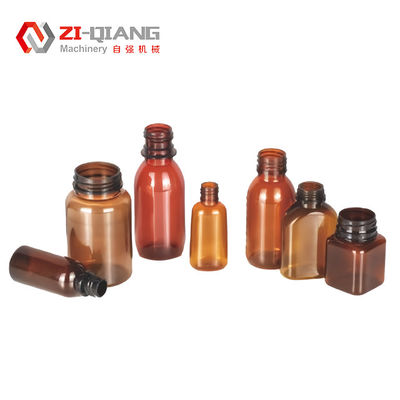

ZQ40 Small and Highly Efficient Injection Blow Molding Machine with 220mm Bottle Height and 14Map Hydraulic Pressure 0
ZQ40 Small and Highly Efficient Injection Blow Molding Machine with 220mm Bottle Height and 14Map Hydraulic Pressure 1
ZQ40 Small and Highly Efficient Injection Blow Molding Machine with 220mm Bottle Height and 14Map Hydraulic Pressure 2
ZQ40 Small and Highly Efficient Injection Blow Molding Machine with 220mm Bottle Height and 14Map Hydraulic Pressure 3
ZQ40 Small and Highly Efficient Injection Blow Molding Machine with 220mm Bottle Height and 14Map Hydraulic Pressure 4
