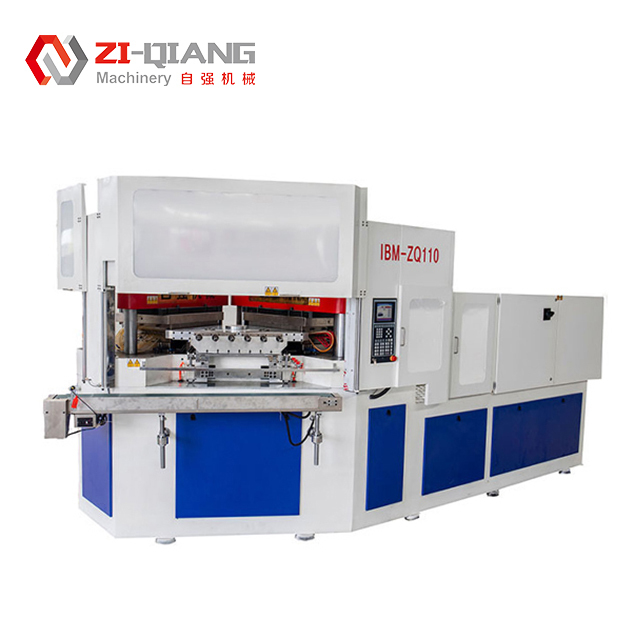

ZQ110 Full Automatic Injection Blow Molding Machine 1100KN Clamping Force

Brand Name: ZI QIANG
Model Number: ZQ 110
MOQ: 1
Price: 95000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Control System:
PLC
Blow Mold Stroke:
120 Mm
Plastic Processed:
PET,PP,PE,PC,PS,HDPE
Mold Opening Stroke:
200-400mm
More Application:
Milk & Yogurt Bottle
Material:
HDPE,PP,PVC,PS,PETG,LDPE
Automatic:
Full Automatic
Power Source:
Electric
Pneumatic Valve Connector:
Festo
Operation Mode:
Automatic
Injection Mold Stroke:
120 Mm
Clamping Force:
Varies Depending On Model
Suitable Materials:
PP, HDPE, PE, PE/PP
Controlling System:
Act Technologies
Warranty:
12 Months
Supply Ability:
15 SET/MONTH
Highlight:

full automatic injection blow molding machine

,

1100KN clamping force blow molding machine

,

ZQ110 injection blow molding machine

Product Description
ZQ 110: Fully Automatic Injection Molding Machine

Advanced one-step molding technology for intelligent manufacturing of perfect hollow products with precision and efficiency.

Injection System Specifications
Item Unit ZQ110
Screw Diameter mm 65
Screw L/D % 22:1
Injection weight g 415
Heating power KW 22
Number of barrel zone 6+N
Injection stroke mm 200
Clamping System Specifications
Item Unit ZQ110
Clamping force of injection KN 1100
Opening stroke for injection mm 140
Clamping force of blowing KN 150
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mold Specifications
Item Unit ZQ110
Max.Platen size(L*W) mm 1100*460
Mold thickness mm 280
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 260
Hydraulic System Specifications
Item Unit ZQ110
Hydraulic Pressure Map 14
Motor power KW 37+37
Dry cycle S 4
Total Power KW 90
Operating power % 52-70
Additional Specifications
Item Unit ZQ110
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 5*1.8*2.2
Net weight Ton 15
