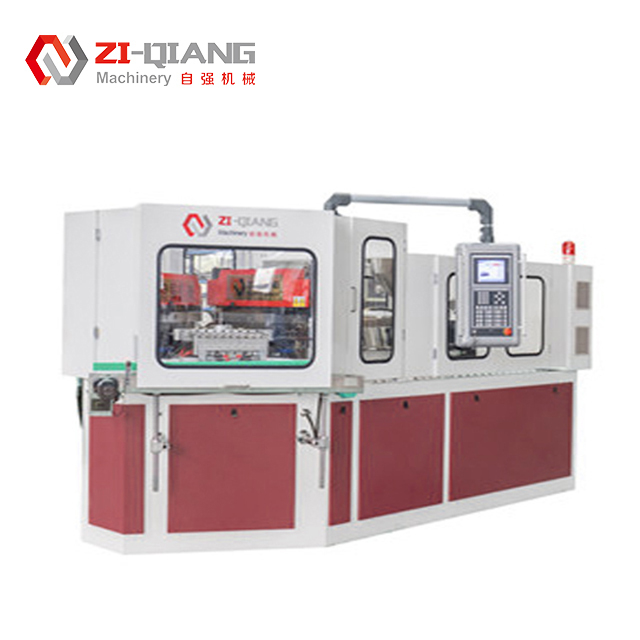

ZQ60 Full Automatic IBM Injection Blow Molding Machine 600KN Clamping Force

Brand Name: ZI QIANG
Model Number: ZQ 60
MOQ: 1
Price: 45000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Machine Dimension:
3.8m X 1.4m X 1.8m
Control System:
PLC
Screw Diameter:
20-50mm
Cooling Water Pressure:
0.3-0.4 MPa
Injection Weight:
260/383g
Plastic Materials:
PP, HDPE, PE, PE/PP
Hollow Part Volume:
5ml To 2L
Blow Unit:
Single
Water Flowage:
4M³/h
Product Dia:
≤80 Mm
Specification:
IBM65D
Trademark:
DAWSON
Station:
Three In One
Automatic:
Full Automatic
Supply Ability:
15 SET/MONTH
Highlight:

Full Automatic IBM Blow Molding Machine

,

600KN Clamping Force Molding Machine

,

ZQ60 Injection Blow Molding Machine

Product Description
ZQ60 Intelligent Injection Blown Hollow Forming Machine
A new generation intelligent injection blown hollow forming machine featuring an advanced injection blown hollow forming system.
Injection System Specifications
Item Unit ZQ60
Screw Diameter mm 45
Screw L/D % 22:1
Injection weight g 260
Heating power KW 14
Number of barrel zone 3+N
Injection stroke mm 160
Clamping System Specifications
Item Unit ZQ60
Clamping force of injection KN 600
Opening stroke for injection mm 140
Clamping force of blowing KN 100
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould Specifications
Item Unit ZQ60
Max.Platen size(L*W) mm 600*390
Mold thickness mm 240
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 230
Hydraulic System Specifications
Item Unit ZQ60
Hydraulic Pressure Map 14
Motor power KW 22
Dry cycle S 4
Total Power KW 37
Operating power % 52-70
Additional Specifications
Item Unit ZQ60
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 3.5*1.4*1.8
Net weight Ton 5
