Injection Blow Molding Machine 600KN Clamping Force 10-500ml Capacity

Brand Name: ZI QIANG
Model Number: ZQ 40
MOQ: 1
Price: 40000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Features:
High Efficiency, Energy Saving, Easy Operation
Model:
Injection Blow Molding Machine
Stripping Stroke:
260 Mm
Transport Package:
Film Packing
Plastic Materials:
PP, HDPE, PE/PP
Manpower Required:
1 Operator
Condition:
New
Injection Clamping:
600KN
Control System:
PLC
Dry Cycle:
20 S
Type:
Injection Blow Molding
Motor Power:
37+37KW
Capacity:
10-500ml
Color:
White
Supply Ability:
15 SET/MONTH
Highlight:

600KN clamping force injection blow molding machine

,

10-500ml capacity injection blow molding machine

,

IBM injection blow molding machine with warranty

Product Description
ZQ40 Integrated Injection and Blowing Machine for Small Bottle Manufacturing

This advanced plastic container production system combines injection and blowing processes to overcome manufacturing barriers in small bottle production, offering high efficiency and precision.

Technical Specifications
Injection System
Item Unit ZQ40
Screw Diameter mm 40
Screw L/D % 21:1
Injection weight g 140
Heating power KW 7.5
Number of barrel zone 3+N
Injection stroke mm 120
Clamping System
Item Unit ZQ40
Clamping force of injection KN 400
Opening stroke for injection mm 140
Clamping force of blowing KN 60
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould Specifications
Item Unit ZQ40
Max.Platen size(L*W) mm 480*340
Mold thickness mm 180
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 220
Hydraulic System
Item Unit ZQ40
Hydraulic Pressure Map 14
Motor power KW 11
Dry cycle S 4
Total Power KW 20
Operating power % 52-70
Additional Specifications
Item Unit ZQ40
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 3*1.3*1.7
Net weight Ton 3.8
Product Images

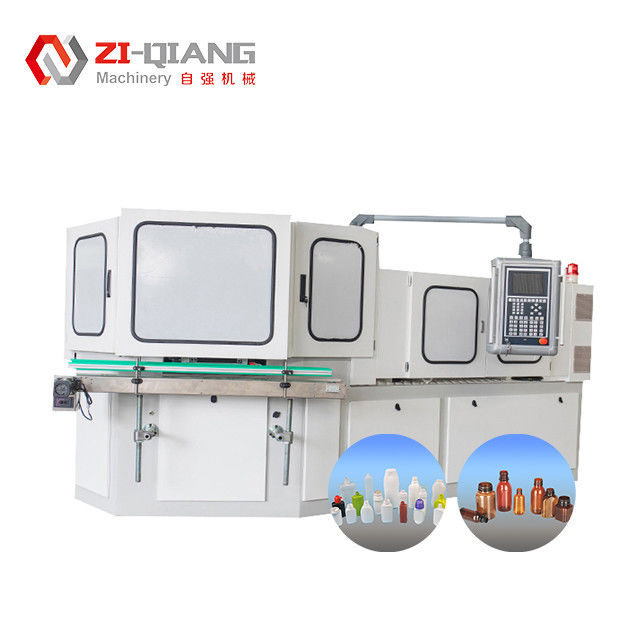

Injection Blow Molding Machine 600KN Clamping Force 10-500ml Capacity 0 Injection Blow Molding Machine 600KN Clamping Force 10-500ml Capacity 1 Injection Blow Molding Machine 600KN Clamping Force 10-500ml Capacity 2
