Good price online

products details

Home > Products >
IBM Injection Blow Molding Machine
>
ZQ80 Injection Blow Molding Machine 800KN Clamping Force 160mm Stroke
All Category

IBM Injection Blow Molding Machine

Extrusion Blow Molding Machine

Injection Stretch Blow Molding Machine

Bottle Mold

Bottle Cap Mold

MTC Mould Temperature Controller

Injection Mold Chiller

Semi Automatic Blow Molding Machine

Bottle Packaging Machine
Contact Us
Ms. Isabel Zhu
isabel@ziqiangmachine.com
+8613913614902
wechat +8613913614902
Contact Now
name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

ZQ80 Injection Blow Molding Machine 800KN Clamping Force 160mm Stroke

Brand Name: ZI QIANG
Model Number: ZQ 80
MOQ: 1
Price: 60000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Mold Thickness:
150-400mm
Pneumatic Valve Connector:
Valqua
Automation:
Fully Automatic
Station:
Three In One
Product Height:
≤175 Mm
Suitable Materials:
PP, HDPE, PE, PE/PP
Origin:
Jiangsu Zhangjiagang
Mold Cooling System:
Water Or Oil
Injection Stroke:
160mm
Condition:
New
Hydraulic Pressure:
14Map
Color:
White
Type:
Injection Blow Molding
Made In:
China
Supply Ability:
15 SET/MONTH
Highlight:

800KN clamping force blow molding machine

,

160mm stroke injection blow molder

,

ZQ80 IBM molding machine with warranty

Product Description
ZQ 80 High-Efficiency Energy-Saving Injection Blow Molding Machine
Precision Engineered for Stable Production

This industrial-grade injection blow molding machine delivers exceptional performance with energy-efficient operation, designed for high-volume production of plastic containers.

Technical Specifications
System Parameter Value
Injection System Screw Diameter 55 mm
Screw L/D 22:1
Injection Weight 314 g
Heating Power 20 KW
Number of Barrel Zones 5+N
Injection Stroke 160 mm
Clamping System Clamping Force (Injection) 800 KN
Opening Stroke (Injection) 140 mm
Clamping Force (Blowing) 120 KN
Opening Stroke (Blowing) 140 mm
Lifting Height of Rotary Table 70 mm
Mold Specifications Max Platen Size (L*W) 800*400 mm
Mold Thickness 280 mm
Bottle Diameter 120 mm
Bottle Height 220 mm
Suitable Bottle Height Range 1-1000 mm
Stripping Stroke 230 mm
Hydraulic System Hydraulic Pressure 14 Map
Motor Power 22+22 KW
Dry Cycle 4 S
Total Power 70 KW
Operating Power 52-70%
Additional Specifications Min. Air Pressure 0.7-1.2 MPa
Compressed Air Capacity 0.7 M³/min
Water Flow Rate 4 M³/h
Cooling Water Pressure 0.3-0.4 MPa
Dimensions (L*W*H) 4.5*1.6*2 M
Net Weight 10 Ton

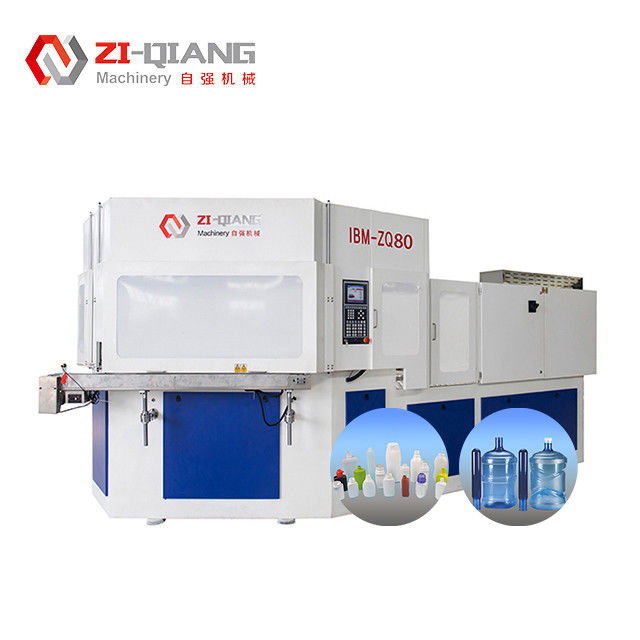

Machine Overview
ZQ80 Injection Blow Molding Machine 800KN Clamping Force 160mm Stroke 0 ZQ80 Injection Blow Molding Machine 800KN Clamping Force 160mm Stroke 1
Key Features
High-efficiency energy-saving design reduces operational costs
Precision injection system with 5+N heating zones
Robust clamping system with 800KN injection force
Versatile mold compatibility for various container sizes
Optimized hydraulic system for smooth operation
Compact footprint with 4.5m length design
