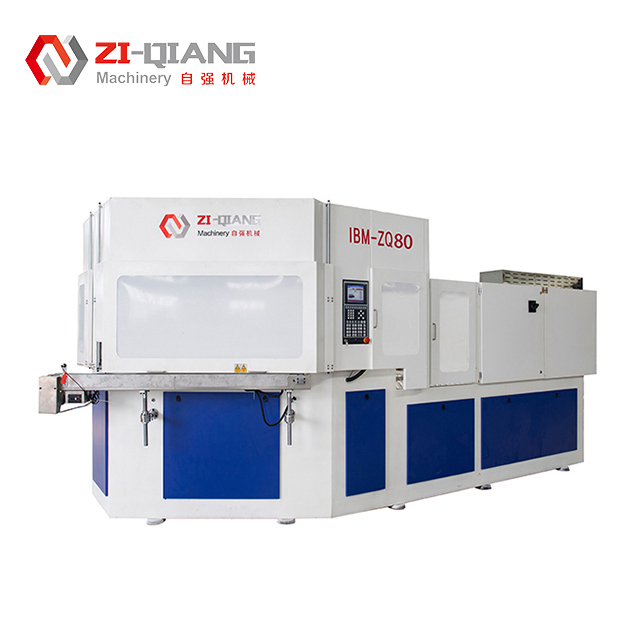

ZQ80 Automatic Injection Blow Molding Machine 100 Tons 35KW

Brand Name: ZI QIANG
Model Number: ZQ 80
MOQ: 1
Price: 60000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Compressed Air Capacity:
0.7M³/min
More Application:

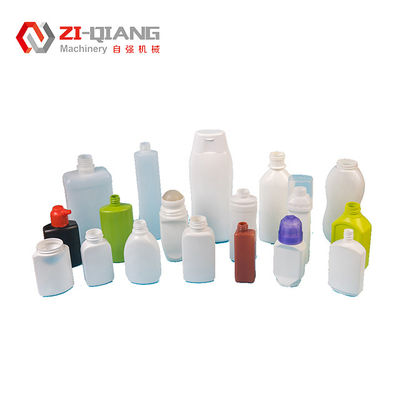

Milk & Yogurt Bottle
Automation Grade:
Automatic
Clamping System:
Toggle Type Clamping System
Color:
White
Stripping Stroke:
220 Mm
Hollow Part Volume:
5ml To 2L
Machine Weight:
7000kg
Suitable Bottle Height:
1-2000mm
Motor Power:
35KW
Suitable Materials:
PP, HDPE, PE, PE/PP
Blow Moulding Type:
Injection Blow Moulding
Power Source:
Electric
Machine Type:
Injection Blow Molding Machine
Capacity:
100 Tons
Supply Ability:
15 SET/MONTH
Highlight:

100 ton injection blow molding machine

,

35KW automatic blow molding machine

,

ZQ80 IBM molding machine with warranty

Product Description
Precision Core, Intelligent Future: ZQ 80 Precision Injection Molding Platform
Technical Specifications
Injection System
Item Unit ZQ80
Screw Diameter mm 55
Screw L/D % 22:1
Injection weight g 314
Heating power KW 20
Number of barrel zone 5+N
Injection stroke mm 160
Clamping System
Item Unit ZQ80
Clamping force of injection KN 800
Opening stroke for injection mm 140
Clamping force of blowing KN 120
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70

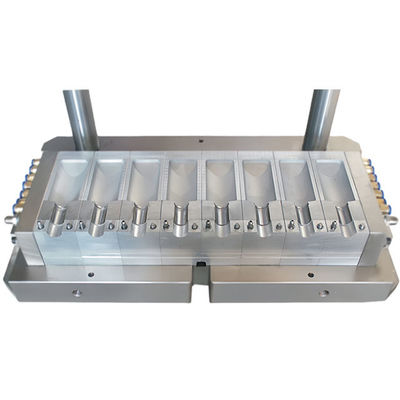

Mould
Item Unit ZQ80
Max.Platen size(L*W) mm 800*400
Mold thickness mm 280
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 230
Hydraulic system
Item Unit ZQ80
Hydraulic Pressure Map 14
Motor power KW 22+22
Dry cycle S 4
Total Power KW 70
Operating power % 52-70
Others
Item Unit ZQ80
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 4.5*1.6*2
Net weight Ton 10
