ZQ40 Injection Blow Molding Machine 11KW Motor 400KN Clamping Force

Brand Name: ZI QIANG
Model Number: ZQ 40
MOQ: 1
Price: 30000 USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Machine Type:
Injection Blow Molding Machine
Pneumatic Valve Connector:
Valqua
Specification:
IBM35D
Motor Power:
11/15 Kw
Applications:

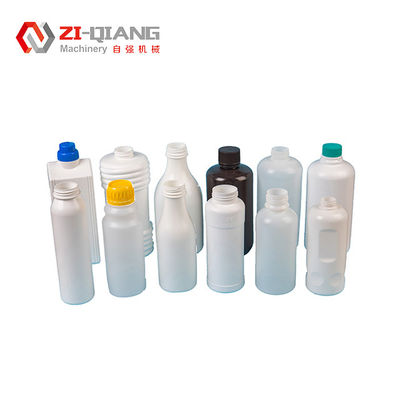

5ml To 1L Small Plastic Bottles
Ejector Stroke:
50-150mm
Operating Power:
52-70
Blow Unit:
Horizontal Blow Unit
Automation Grade:
Automatic
Blow Mold Stroke:
120 Mm
Warranty:
1 Year
Hydraulic Pressure:
14Map
Injection Clamping Force:
600 KN
Supply Ability:
15 SET/MONTH
Highlight:

ZQ40 injection blow molding machine 11KW motor

,

IBM injection blow molding machine 400KN clamping force

,

injection blow molding machine with warranty

Product Description

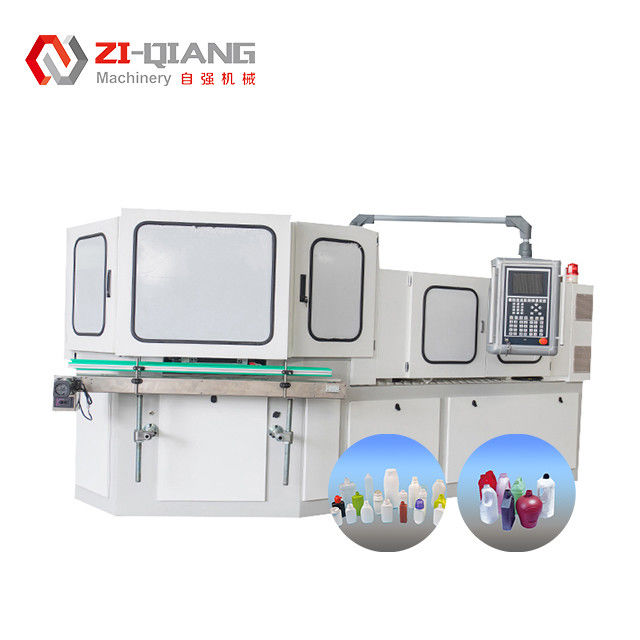

ZQ 40 High-Speed Injection Blown Hollow Forming Machine
The ZQ 40 is a compact yet high-performance injection blown hollow forming machine designed for efficient production of plastic containers and bottles.
Injection System Specifications
Parameter Unit Value
Screw Diameter mm 40
Screw L/D % 21:1
Injection weight g 140
Heating power KW 7.5
Number of barrel zone 3+N
Injection stroke mm 120
Clamping System Specifications
Parameter Unit Value
Clamping force of injection KN 400
Opening stroke for injection mm 140
Clamping force of blowing KN 60
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould Specifications
Parameter Unit Value
Max.Platen size(L*W) mm 480*340
Mold thickness mm 180
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 220
Hydraulic System Specifications
Parameter Unit Value
Hydraulic Pressure Map 14
Motor power KW 11
Dry cycle S 4
Total Power KW 20
Operating power % 52-70
Additional Specifications
Parameter Unit Value
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 3*1.3*1.7
Net weight Ton 3.8
