IBM Injection Blow Molding Machine

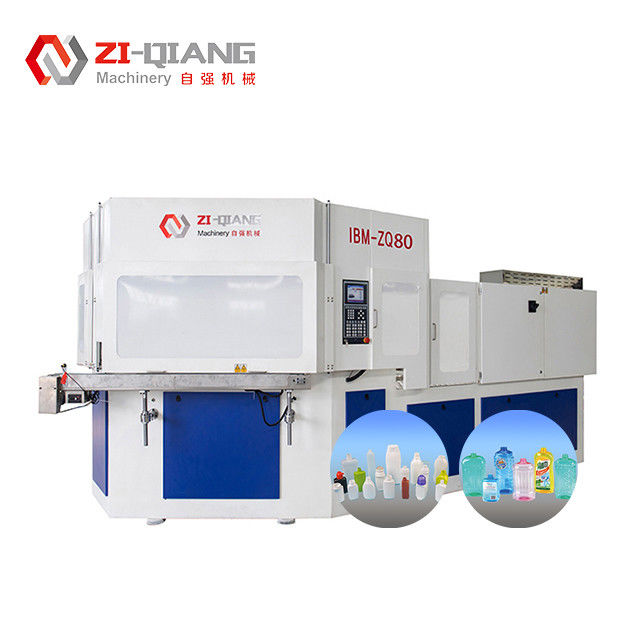

DAWSON Automatic IBM Injection Blow Molding Machine 20KW 1100KN

All Category

IBM Injection Blow Molding Machine

Extrusion Blow Molding Machine

Injection Stretch Blow Molding Machine

Bottle Mold

Bottle Cap Mold

MTC Mould Temperature Controller

Injection Mold Chiller

Semi Automatic Blow Molding Machine

Bottle Packaging Machine

Ms. Isabel Zhu

isabel@ziqiangmachine.com

+8613913614902

+8613913614902

Contact Now

DAWSON Automatic IBM Injection Blow Molding Machine 20KW 1100KN

Brand Name:	ZI QIANG
Model Number:	ZQ 80
MOQ:	1
Price:	60000 USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Trademark:

DAWSON

Control System:

Motor Power:

11/15 Kw

Compressed Air Capacity:

0.7M³/min

Warranty:

1 Year

Automation Grade:

Automatic

Plastic Materials:

PP, HDPE, PE/PP

Plastic Processed:

PP,PE

Total Power:

Injection Stroke:

200 Mm

Operation Mode:

Automatic

Frequency:

50/60Hz

Station:

Electronic Rulers:

Gefran

Injection Clamping Force:

1100 KN

Supply Ability:

15 SET/MONTH

Highlight:

IBM injection blow molding machine 20KW

automatic IBM molding machine 1100KN

industrial blow molding machine with warranty

Product Description

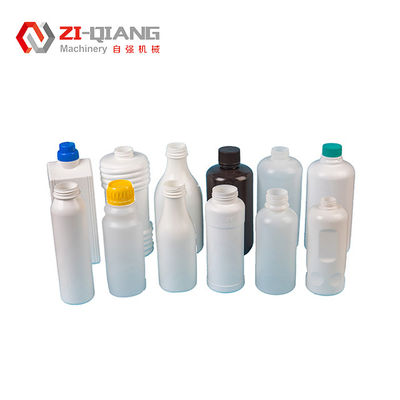

Injection Blowing Machine - High-Efficiency Hollow Forming Machine for Small Bottles (5-2000ml)

Product Specifications

Attribute	Value
Trademark	DAWSON
Control System	PLC
Motor Power	11/15 Kw
Compressed Air Capacity	0.7M³/min
Warranty	1 year
Automation Grade	Automatic
Plastic Materials	PP, HDPE, PE/PP
Plastic Processed	PP,PE
Total Power	20KW
Injection Stroke	200 Mm
Operation Mode	Automatic
Frequency	50/60Hz
Station	50mm
Electronic Rulers	Gefran
Injection Clamping Force	1100 KN

Technical Parameters

Item	Unit	ZQ80
Injection System
Screw Diameter	mm	55
Screw L/D	%	22:1
Injection weight	g	314
Heating power	KW	20
Number of barrel zone		5+N
Injection stroke	mm	160
Clamping System
Clamping force of injection	KN	800
Opening stroke for injection	mm	140
Clamping force of blowing	KN	120
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	800*400
Mold thickness	mm	280
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	230
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	22+22
Dry cycle	S	4
Total Power	KW	70
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	4.51.62
Net weight	Ton	10
