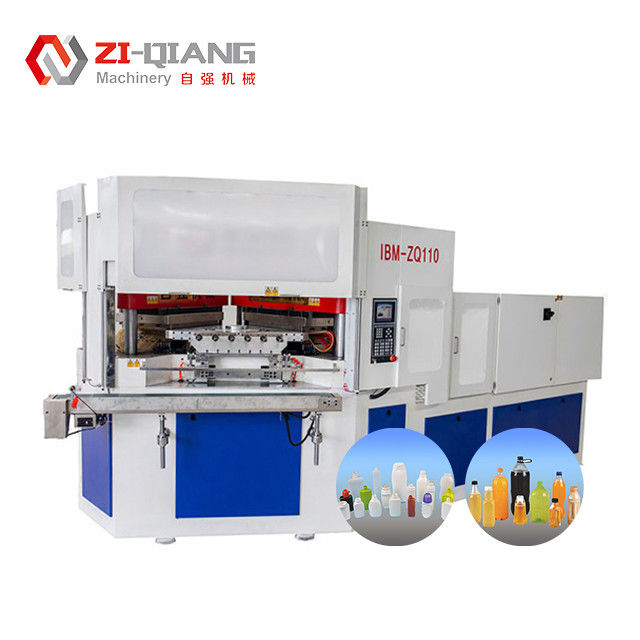

ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles

Brand Name: ZIQIANG
Model Number: ZQ110
MOQ: 1
Price: 95000USD
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Warranty:
1 Year
Injection Unit:
Single/Double
Model No:
IBM35D
Screw Diameter:
40mm
Machine Appearance Color:
Customization
Head Heating Power:
5.7kw
Application:
Household Products \ Food Packaging
Frequency:
50/60Hz
Controlling System:
Act Technologies
Voltage:
Customized According To Customer Needs
Logo Customized:
Yes
Hydraulic Pressure:
14 Map
Motor Power:
35KW
Operating Power:
52-70%
Applications:
5ml To 1L Small Plastic Bottles
Supply Ability:
15 SET/MONTH
Highlight:

ZQ110 injection blow molding machine

,

5ml-1L plastic bottle molding machine

,

IBM blow molding machine with warranty

Product Description
ZQ 110 Professional Injection Blowing Integrated Hollow Forming Machine
Product Specifications
Attribute Value
Warranty 1 year
Injection Unit Single/Double
Model No IBM35D
Screw Diameter 40mm
Machine Appearance Color Customization
Head Heating Power 5.7kw
Application Household Products / Food Packaging
Frequency 50/60Hz
Controlling System Act Technologies
Voltage Customized According To Customer Needs
Logo Customized Yes
Hydraulic Pressure 14 Map
Motor Power 35KW
Operating Power 52-70%
Applications 5ml to 1L small plastic bottles
Technical Parameters
Injection System
Screw Diameter mm 65
Screw L/D % 22:1
Injection weight g 415
Heating power KW 22
Number of barrel zone 6+N
Injection stroke mm 200
Clamping System
Clamping force of injection KN 1100
Opening stroke for injection mm 140
Clamping force of blowing KN 150
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould
Max.Platen size(L*W) mm 1100*460
Mold thickness mm 280
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 260
Hydraulic system
Hydraulic Pressure Map 14
Motor power KW 37+37
Dry cycle S 4
Total Power KW 90
Operating power % 52-70
Others
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 5*1.8*2.2
Net weight Ton 15
ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles 0 ZQ110 Injection Blow Molding Machine for 5ml-1L Plastic Bottles 1
