ZQ60 Electric Injection Blow Molding Machine 500-1000 Bottles/Hour

Brand Name:	ZIQIANG
Model Number:	ZQ 60
MOQ:	1
Price:	40000 USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Power Source:

Electric

Controlling System:

Hydraulic Pressure

Machine Weight:

4 Ton

Capacity:

500-1000 Bottles Per Hour

Injection Weight:

50-200g

Machine Appearance Color:

Customization

Hydraulic Pressure:

14Map

Suitable Bottle Range:

5ml-2L

Heating Power:

Screw Diameter:

Color:

White

Bottle Height:

220mm

Hollow Part Volume:

5ml To 2L

Water Flowage:

4M³/h

Supply Ability:

15 SET/MONTH

Highlight:

ZQ60 electric blow molding machine

injection blow molding machine 500-1000 bottles/hour

IBM blow molding machine with warranty

Product Description

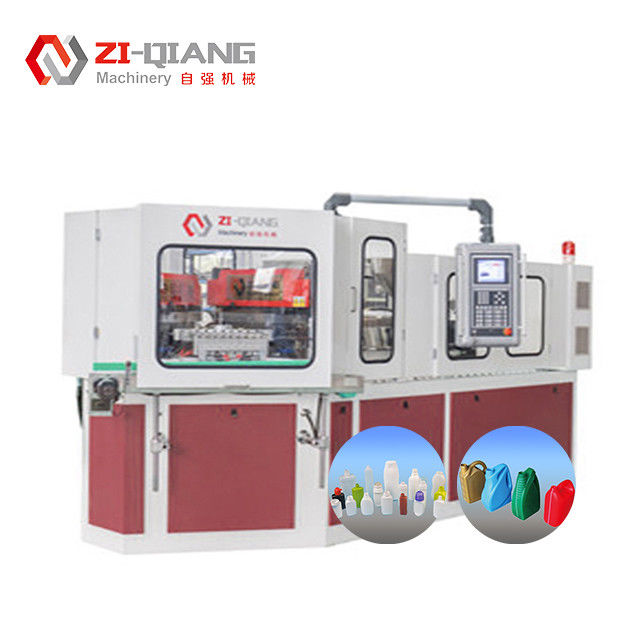

ZQ 60 Fully Automatic Integrated Injection Blowing Machine

Professional equipment for high-efficiency manufacturing of small bottles with precision and reliability.

Key Specifications

Attribute	Value
Power Source	Electric
Controlling System	Hydraulic Pressure
Machine Weight	4 Ton
Capacity	500-1000 bottles per hour
Injection Weight	50-200g
Machine Appearance Color	Customization
Hydraulic Pressure	14Map
Suitable Bottle Range	5ml-2L
Heating Power	14KW
Screw Diameter	65mm
Color	White
Bottle Height	220mm
Hollow Part Volume	5ml To 2L
Water Flowage	4M³/h

Technical Specifications

Injection System

Screw Diameter	45 mm
Screw L/D	22:1
Injection weight	260 g
Heating power	14 KW
Number of barrel zone	3+N
Injection stroke	160 mm

Clamping System

Clamping force of injection	600 KN
Opening stroke for injection	140 mm
Clamping force of blowing	100 KN
Opening stroke for blowing	140 mm
Lifing height of rotary table	70 mm

Mould

Max.Platen size(L*W)	600*390 mm
Mold thickness	240 mm
Dia.of bottle	120 mm
Bottle height	220 mm
Suitable bottle height	1-1000 mm
Stripping stroke	230 mm

Hydraulic system

Hydraulic Pressure	14 Map
Motor power	22 KW
Dry cycle	4 S
Total Power	37 KW
Operating power	52-70%

Other Specifications

Min.Air pressure of compressed air	0.7-1.2 MPa
Compressed air capacity	0.7 M³/min
Water flowage	4 M³/h
Cooling water pressure	0.3-0.4 MPa
Dimension(LWH)	3.51.41.8 M
Net weight	5 Ton
