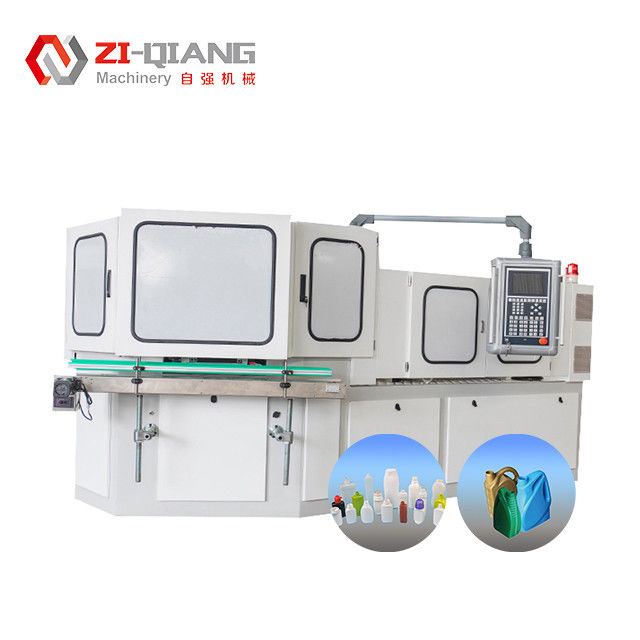

ZQ40 Automatic PP PE Plastic Bottle Injection Blow Molding Machine

Brand Name:	ZI QIANG
Model Number:	ZQ 40
MOQ:	1
Price:	30000 USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Operating Power:

52-70%

Suitable Bottle Range:

5ml-2L

Injection Weight:

Clamping Force:

Varies Depending On Model

Logo Customized:

Hydraulic Pressure:

14 Map

Blow Mold Stroke:

120 Mm

Injection Mold Stroke:

120 Mm

Material Compatibility:

Thermoplastic Materials Such As PE, PP, PS, PC, Etc.

Weight:

10Ton

Total Power:

Bottle Height:

220mm

Blow Molding Type:

Injection Blow Molding

Marketing Type:

Ordinary Product

Mould Material:

S136, 4Cr13

Supply Ability:

15 SET/MONTH

Highlight:

automatic PP PE bottle molding machine

injection blow molding machine for plastic bottles

ZQ40 plastic bottle molding machine with warranty

Product Description

ZQ 40 Fully Automatic Integrated High-Speed Production PP/PE Plastic Bottle Injection Blowing Machine

Key Specifications

Operating Power	52-70%
Suitable Bottle Range	5ml-2L
Injection Weight	540g
Clamping Force	Varies depending on model
Logo Customization	Yes
Hydraulic Pressure	14 Map
Material Compatibility	Thermoplastic materials (PE, PP, PS, PC, etc.)
Total Power	37KW
Weight	10Ton

Technical Specifications

Item	Unit	ZQ40
Injection System
Screw Diameter	mm	40
Screw L/D	%	21:1
Injection weight	g	140
Heating power	KW	7.5
Number of barrel zone		3+N
Injection stroke	mm	120
Clamping System
Clamping force of injection	KN	400
Opening stroke for injection	mm	140
Clamping force of blowing	KN	60
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	480*340
Mold thickness	mm	180
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	220
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	11
Dry cycle	S	4
Total Power	KW	20
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	31.31.7
Net weight	Ton	3.8

Key Features

Fully automatic high-speed production for PP/PE plastic bottles
Injection blow molding technology for precise bottle formation
Wide material compatibility with various thermoplastics
Custom logo capability for branded packaging
Energy efficient operation with 52-70% power utilization
Robust construction with high-quality mold materials (S136, 4Cr13)
