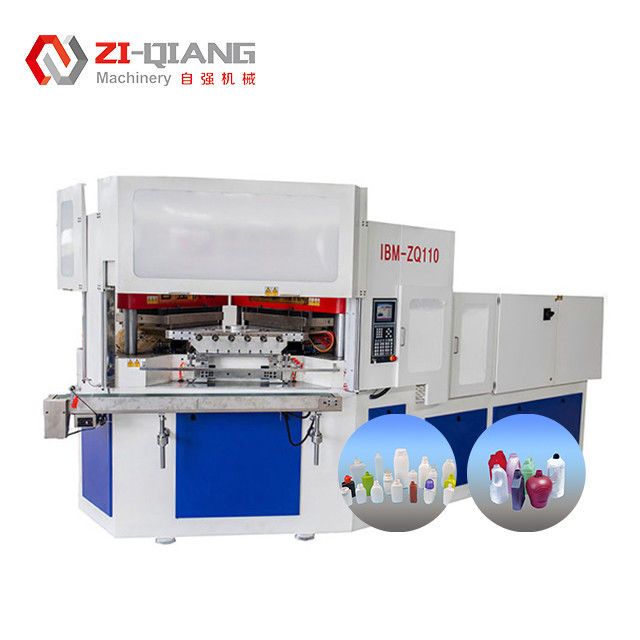

High Purity Raw Material and Low Noise in IBM Injection Blow Molding Machine for Symmetrical Structures

Brand Name: ZIQIANG
Model Number: ZQ110
MOQ: 1SET
Price: 150000
Packaging Details: 20 containers
Payment Terms: D/A,T/T,D/P
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Screw Diameter::
65mm
Screw L/D::
22:1%
Injection Weight::
540g
Heating Power::
20KW
Opening Stroke For Blowing::
140mm
Max.Platen Size(LxW)::
1100X460mm
Suitable Bottle Height::
1-2000mm
Supply Ability:
Ten Units Per Month
Product Description

High requirements for raw material purity: Because it is necessary to form a precise structure (such as bottle mouth thread) in one step, impurities in the raw material can easily lead to molding defects, so raw materials with higher purity need to be used.

•A The equipment investment is relatively high: The integrated design and precision components make the initial purchase cost higher than that of ordinary split equipment, but long-term mass production can dilute the cost through efficiency improvement.

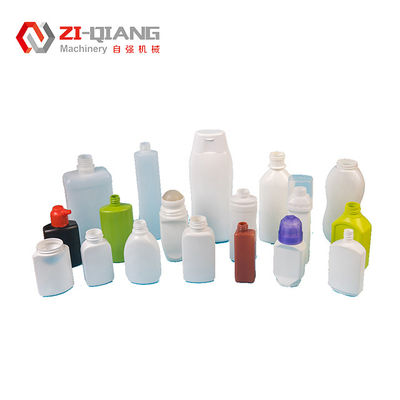

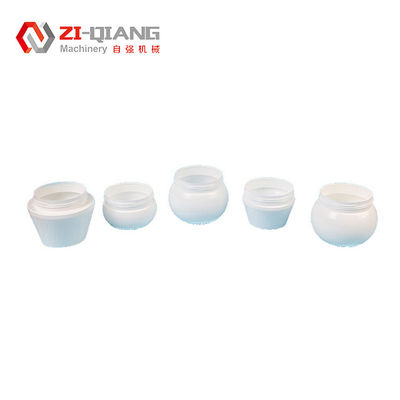

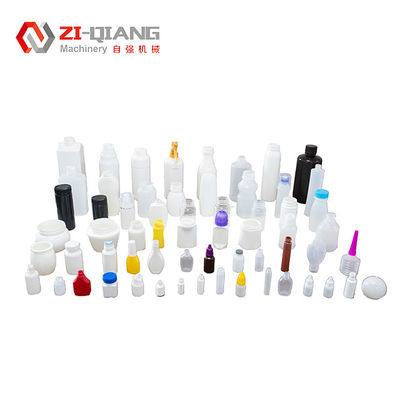

• B Suitable for the production of products with relatively symmetrical structures: Due to the limitations of blow molding molds, it is slightly less adaptable to products with asymmetric and special-shaped complex structures, and is better at producing symmetrical hollow products such as bottles and cans.

• C The cooling system is precisely designed: Precise temperature control is required in both the injection molding and blow molding stages, and the equipment is equipped with an efficient cooling circuit to ensure that the product is quickly finalized and reduce the risk of deformation.

• D Good noise control: The closed production environment and mature transmission system design make the operating noise lower than some open extrusion blow molding equipment, which is more suitable for workshop environment management.
