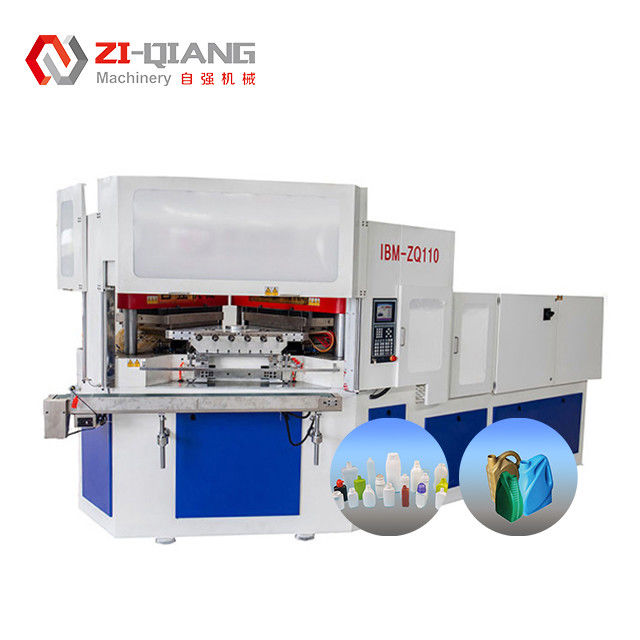

PP, PE Fully Automatic Vacuum Injection Molding Machine

Brand Name:	Zi-Qiang
Model Number:	ZQ110
MOQ:	1
Price:	95000USD
Packaging Details:	20'Container
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Voltage:

Customized According To Customer Needs

Injection System:

Injection Blow Molding

Injection Clamping Force:

1100 KN

Cooling System:

Water Cooling

Model:

Injection Blow Molding Machine

Control System:

Plastic Processed:

PP,PE

Hs Code:

8477301000

Warranty:

1 Year

Mold Thickness:

280mm

Heating Power:

Blow Moulding Type:

Injection Blow Moulding

Supply Ability:

15 SET/MONTH

Product Description

Item	Unit	ZQ110
Injection System
Screw Diameter	mm	65
Screw L/D	%	22:1
Injection weight	g	415
Heating power	KW	22
Number of barrel zone		6+N
Injection stroke	mm	200
Clamping System
Clamping force of injection	KN	1100
Opening stroke for injection	mm	140
Clamping force of blowing	KN	150
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	1100*460
Mold thickness	mm	280
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	260
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	37+37
Dry cycle	S	4
Total Power	KW	90
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	51.82.2
Net weight	Ton	15

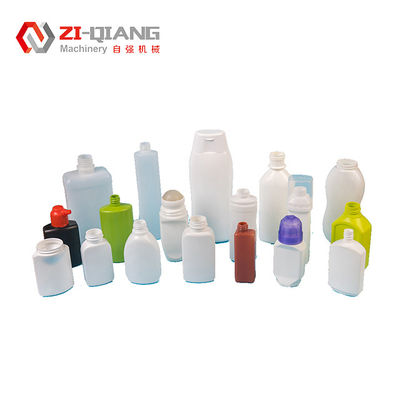

PP, PE Fully Automatic Vacuum Injection Molding Machine 0

PP, PE Fully Automatic Vacuum Injection Molding Machine 1
