IBM Plastic Bottle Molding Machine PET Moulding Machine For Food Packaging

Brand Name:	Zl-Qiang
Model Number:	ZQ135
MOQ:	1 set
Price:	178888
Packaging Details:	20'Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

IBM Injection Blow Molding Machine

Heating Power:

Number Of Barrel Zone:

Injection Stroke:

200mm

Min.Air Pressure Of Compressed Air:

0.7-1.2MPa

Compressed Air Capacity:

0.7M³/min

Water Flowage:

4M³/h

Cooling Water Pressure:

0.3-0.4MPa

Application:

Pharmaceutical Packaging 、 Industrial Packaging ； Food Packaging

Supply Ability:

10 set/ Month

Highlight:

IBM plastic bottle molding machine

PET plastic bottle molding machine

Plastic pet moulding machine

Product Description

Containers IBM Injection Blow Molding Machine For Food Packaging

IBM Injection Blow Molding Machine Description

1. Injection mold, blow molding model cavity, neck block activity design, oil circuit, water circuit special design to ensure that the tube also bottle size stability. And easy to replace.

2. Optimized heat circulation system, bottle embryo design, to ensure that the gram deviation and wall thickness deviation is minimized.

3. Special structure mandrel, fast molding cycle, good cooling effect of mandrel.

ZQ Series Injection Blow Mould Application

Cosmetic Packaging: The precision and versatility of IBM machines make them ideal for producing cosmetic containers, jars, and tubes.

Industrial Packaging: IBM machines can be used in the production of industrial packaging solutions like drums, canisters, and industrial containers.

Pharmaceutical Packaging: IBM machines are employed in the pharmaceutical industry for manufacturing various types of packaging for medicines, vitamins, and supplements.

IBM Injection Blow Molding Machine Details

Item	Unit	ZQ135
Injection System
Screw Diameter	mm	70
Screw L/D	%	22:01
Injection weight	g	650
Heating power	KW	30
Number of barrel zone		6+N
Injection stroke	mm	200
Clamping System
Clamping force of injection	KN	1350
Opening stroke for injection	mm	140
Clamping force of blowing	KN	200
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	1300*500
Mold thickness	mm	280
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	280
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	37+37
Dry cycle	S	4
Total Power	KW	95
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	5.522.4
Net weight	Ton	18

Bottle Volume
Cavity Number	Machine Model	10ml	30ml	60ml	100ml	250ml	500ml	1000ml
	ZQ40	9	8	6	4	3	2	1
	ZQ60	14	12	10	8	5	3	2
	ZQ80	20	18	14	12	8	5-6	3-4
	ZQ110	24	22	18	14	10	8	6
	ZQ135	30	26	22	18	14	10	8

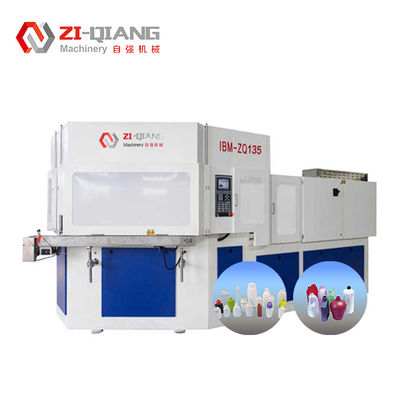

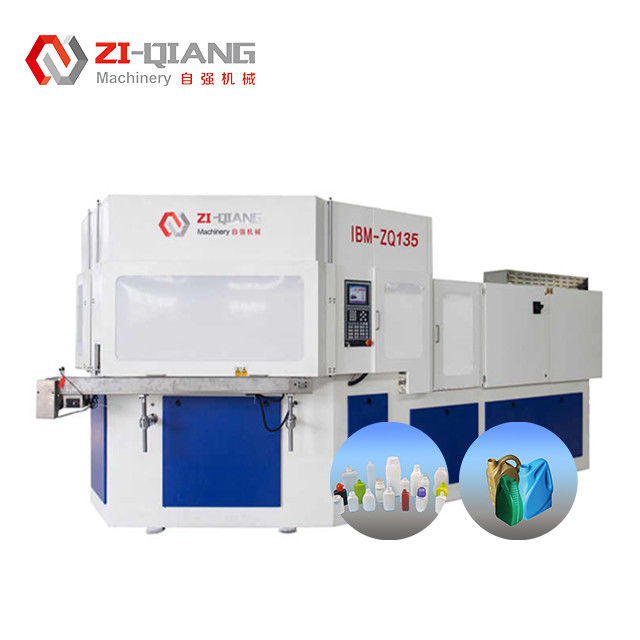

ZQ135 IBM Injection Blow Molding Machine :

ZIQIANG MACHINE FACTORY :

IBM Plastic Bottle Molding Machine PET Moulding Machine For Food Packaging 2
