Precision IBM Injection Blow Molding Machine For PE PP Pharmaceutical Bottle

Brand Name:	Zl-Qiang
Model Number:	ZQ110
MOQ:	1 set
Price:	100000
Packaging Details:	20'Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name::

IBM Injection Blow Molding Machines

Screw Diameter:

Screw L/D:

22:01%

Injection Weight:

Heating Power:

Number Of Barrel Zone:

Injection Stroke:

200mm

Net Weight :

15 Ton

Application:

Plastic Manufacturing 、Cosmetic Packaging 、Personal Care Products

Supply Ability:

10 set/ Month

Highlight:

Pharma Bottle injection blow molding machine

Pet injection blow molding machine

Precision pet molding machine

Product Description

Precision IBM Injection Blow Molding Machines for Pharmaceutical Containers

ZQ110 IBM Injection Blow Molding Machine PP PE Bottle 110 Ton Machine

IBM machine Description

IBM machines can create bottles of various sizes, shapes, and designs, catering to diverse packaging needs.

IBM machines offer precise control over the molding process, ensuring consistent bottle dimensions and quality.

IBM machine Applications:
Injection blow molding machines are commonly used in industries such as packaging, cosmetics, pharmaceuticals, and consumer goods for producing items like bottles, containers, jars, and other hollow plastic products.

IBM machine Advantages:

· Cost-effective for high-volume production.

· Reduced material wastage compared to other molding processes.

· Enhanced design flexibility for complex shapes and patterns.

· Suitable for producing lightweight yet durable products.

Injection Blow Molding Machine Details

Item	Unit	ZQ110
Injection System
Screw Diameter	mm	65
Screw L/D	%	22:01
Injection weight	g	415
Heating power	KW	22
Number of barrel zone		6+N
Injection stroke	mm	200
Clamping System
Clamping force of injection	KN	1100
Opening stroke for injection	mm	140
Clamping force of blowing	KN	150
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	1100*460
Mold thickness	mm	280
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	260
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	37+37
Dry cycle	S	4
Total Power	KW	90
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	51.82.2
Net weight	Ton	15

Bottle Volume
Cavity Number	Machine Model	10ml	30ml	60ml	100ml	250ml	500ml	1000ml
	ZQ40	9	8	6	4	3	2	1
	ZQ60	14	12	10	8	5	3	2
	ZQ80	20	18	14	12	8	5-6	3-4
	ZQ110	24	22	18	14	10	8	6
	ZQ135	30	26	22	18	14	10	8

Benefits of IBM Machines in Bottle Production

Precision: IBM machines offer precise control over the molding process, ensuring consistent bottle dimensions and quality.

Efficiency: The integration of injection and blow molding in a single machine streamlines the production process, reducing cycle times and increasing productivity.

Versatility: IBM machines can create bottles of various sizes, shapes, and designs, catering to diverse packaging needs.

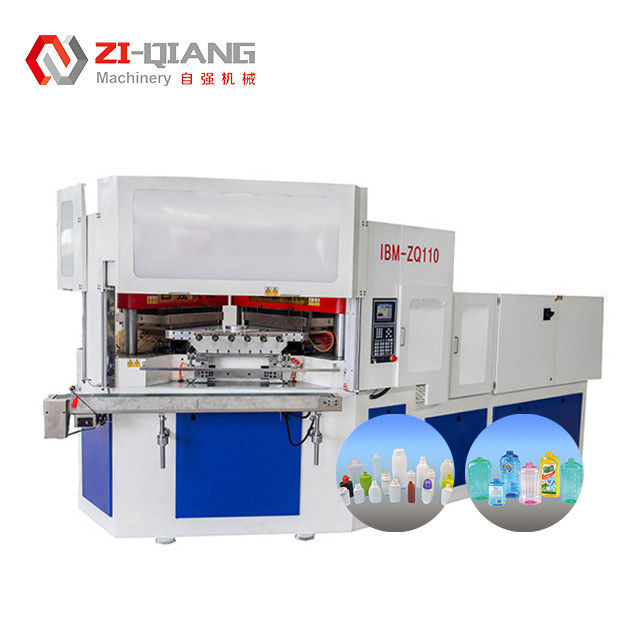

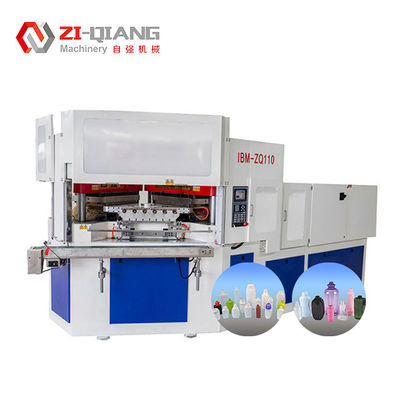

ZQ110 IBM Injection Blow Molding Machine :

Precision IBM Injection Blow Molding Machine For PE PP Pharmaceutical Bottle 0

ZIQIANG MACHINE FACTORY :

The company's product applications cover pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and other plastic packaging. lt canproduce 1ml-1000ml plastic products such as HDPE, LDPE, PP, PS (lactic acid bacte.ria), high transparent PS, ABS, environmental corn material, EVA, PCTG and so on.
