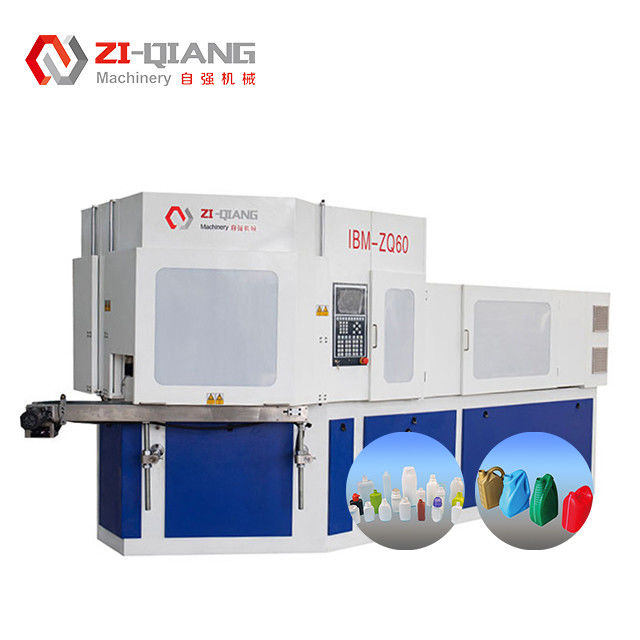

OEM Plastic Bottle IBM Injection Blow Molding Machine Cosmetic Packaging 14KW

Brand Name:	Zl-Qiang
Model Number:	ZQ60
MOQ:	1 set
Price:	40000
Packaging Details:	20'Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name::

IBM Plastic Bottle Molding Machine

Screw Diameter:

Screw L/D:

22:01%

Injection Weight:

Heating Power:

Number Of Barrel Zone:

Net Weight :

5 Ton

Cooling Water Pressure:

0.3-0.4 MPa

Application:

Beverage Industry 、Industrial Packaging 、 Cosmetic Packaging

Supply Ability:

10 set/ Month

Highlight:

OEM IBM Injection Blow Molding Machine

14KW IBM Injection Blow Molding Machine

OEM injection blowing machine

Product Description

IBM Plastic Bottle Molding Machine For Cosmetic Packaging

IBM Plastic Bottle Molding Machine Description

IBM machines can be employed to create automotive parts such as reservoirs, fluid containers, and other hollow components.

IBM machines are suitable for producing containers for personal care products such as shampoo bottles, lotion containers, and soap dispensers.

IBM machines offer precise control over the molding process, ensuring consistent bottle dimensions and quality.

IBM (Injection Blow Molding) machines play a vital role in the production of high-quality bottles for various industries. From pharmaceuticals to beverages, these machines offer precision and efficiency in creating hollow plastic containers.

IBM Plastic Bottle Molding Machine Details

Item	Unit	ZQ60
Injection System
Screw Diameter	mm	45
Screw L/D	%	22:01
Injection weight	g	260
Heating power	KW	14
Number of barrel zone		3+N
Injection stroke	mm	160
Clamping System
Clamping force of injection	KN	600
Opening stroke for injection	mm	140
Clamping force of blowing	KN	100
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	600*390
Mold thickness	mm	240
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	230
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	22
Dry cycle	S	4
Total Power	KW	37
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	3.51.41.8
Net weight	Ton	5

Bottle Volume
Cavity Number	Machine Model	10ml	30ml	60ml	100ml	250ml	500ml	1000ml
	ZQ40	9	8	6	4	3	2	1
	ZQ60	14	12	10	8	5	3	2
	ZQ80	20	18	14	12	8	5-6	3-4
	ZQ110	24	22	18	14	10	8	6
	ZQ135	30	26	22	18	14	10	8

IBM Injection Blow Molding Machine Application

Bottle Production: IBM machines are extensively used for producing various types of bottles, including pharmaceutical bottles, cosmetic containers, and food and beverage packaging.

Medical Devices: IBM machines can be utilized to manufacture medical devices like inhalers, vials, and other medical containers.

Cosmetic Packaging: The precision and versatility of IBM machines make them ideal for producing cosmetic containers, jars, and tubes.

Food Packaging: IBM machines are utilized for producing food-grade packaging such as sauce bottles, condiment containers, and other food storage solutions.

Aerosol Containers: IBM machines can be used to manufacture aerosol containers for products like hairsprays, air fresheners, and other spray products.

ZIQIANG MACHINE Comapany Information :

The company's product applications cover pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and other plastic packaging. lt canproduce 1ml-1000ml plastic products such as HDPE, LDPE, PP, PS (lactic acid bacte.ria), high transparent PS, ABS, environmental corn material, EVA, PCTG and so on.

OEM Plastic Bottle IBM Injection Blow Molding Machine Cosmetic Packaging 14KW 0

OEM Plastic Bottle IBM Injection Blow Molding Machine Cosmetic Packaging 14KW 1

Why choose us?

1. Provide comprehensive training for customers.

2. Ensure 100% operational stability of products before delivery.

3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.

4. Customized design to meet various needs of different customers.

5. 24 hours debugging, with after-sales personnel ready at all times.

6. Provide a complete set of production lines.

7. Offer online product testing equipment, image inspection, and reliable quality control.

8. Our company provides a one-year warranty for equipment molds and lifetime maintenance.
