Automatic Stretch IBM Injection Blow Molding Machine For Industrial Packing

Brand Name:	ZI-Qiang
Model Number:	ZQ40
MOQ:	1 set
Price:	30000-35000
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

IBM Injection Blow Molding Machine

Screw Diameter:

Screw L/D:

21:1%

Injection Weight:

Heating Power:

7.5KW

Number Of Barrel Zone:

Injection Stroke:

120mm

Machine Dimension(L×W×H):

3×1.3×1.7m

Condition:

Application:

Industrial Packaging 、 Pharmaceutical Packaging

Supply Ability:

10 set/ Month

Highlight:

Automatic ibm blow moulding machine

Industrial Packing ibm blow moulding machine

Industrial stretch blow molding machines

Product Description

IBM Injection Blow Molding Machine for Industrial Packaging

Injection Blow Molding Machine Description

1. Injection mold, blow molding model cavity, neck block activity design, oil circuit, water circuit special design to ensure that the tube also bottle size stability. And easy to replace.

2. Emblem injection mold body, blow mold body material using 4Cr13 stainless steel or imported high-strength S136 Tajin steel, to extend the service life. Blow mold body can also be used magnesium aluminum material, cooling effect is good.

3. Optimized heat circulation system, bottle embryo design, to ensure that the gram deviation and wall thickness deviation is minimized.

ZQ Series Injection Blow Mould Features

1. Full European-style structure, the clamping force is 20%-30% larger than the products in the same industry.

2. Standard servo rotation, simple structure and convenient operation.

3. Unique pressurized clamping structure, the booster cylinder does not participate in the opening and closing mode, and the energy consumption is 10%-20% lower than that of the same industry.

Injection Blow Molding Machine Details

Item	Unit	ZQ40
Injection System
Screw Diameter	mm	40
Screw L/D	%	21:01
Injection weight	g	140
Heating power	KW	7.5
Number of barrel zone		3+N
Injection stroke	mm	120
Clamping System
Clamping force of injection	KN	400
Opening stroke for injection	mm	140
Clamping force of blowing	KN	60
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	480*340
Mold thickness	mm	180
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	220
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	11
Dry cycle	S	4
Total Power	KW	20
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	31.31.7
Net weight	Ton	3.8

Bottle Volume
Cavity Number	Machine Model	10ml	30ml	60ml	100ml	250ml	500ml	1000ml
	ZQ40	9	8	6	4	3	2	1
	ZQ60	14	12	10	8	5	3	2
	ZQ80	20	18	14	12	8	5-6	3-4
	ZQ110	24	22	18	14	10	8	6
	ZQ135	30	26	22	18	14	10	8

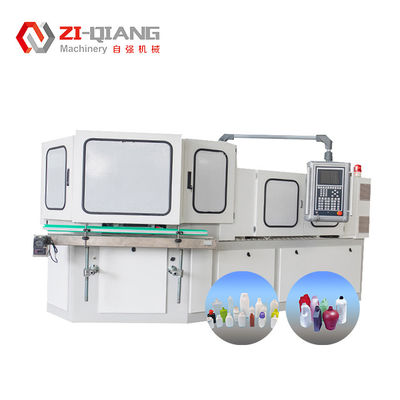

ZQ40 IBM Injection Blow Molding Machine :

Automatic Stretch IBM Injection Blow Molding Machine For Industrial Packing 0

ZQ60 IBM Injection Blow Molding Machine :

ZIQIANG MACHINE FACTORY :

The company's product applications cover pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and other plastic packaging. lt canproduce 1ml-1000ml plastic products such as HDPE, LDPE, PP, PS (lactic acid bacte.ria), high transparent PS, ABS, environmental corn material, EVA, PCTG and so on.

Automatic Stretch IBM Injection Blow Molding Machine For Industrial Packing 2

Why choose us?

1. Provide comprehensive training for customers.
2. Ensure 100% operational stability of products before delivery.
3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.
4. Customized design to meet various needs of different customers.
5. 24 hours debugging, with after-sales personnel ready at all times.
6. Provide a complete set of production lines.
7. Offer online product testing equipment, image inspection, and reliable quality control.
8. Our company provides a one-year warranty for equipment molds and lifetime maintenance.
