EBM Continous Extrusion Pet Bottle Blowing Machine Moulding 90D

Brand Name:	ZI-Qiang
Model Number:	TCG90D
MOQ:	1 set
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

EBM-Continous Extrusion Blow Molding Machine

Size Of Machine:

4.5x3.0x2.7 (LxWxH)/m

Theoretical Output:

550x2 (PC/h)

Screw Diameter:

90 (mm)

Screw L/D Ratio:

22-30 (L/D)

Application:

Industrial Packaging

Oil Pump Drive Power(with Servo):

18.5 (KW)

Platen Size:

550x550 (WxH) Mm

Supply Ability:

10 set/ Month

Highlight:

EBM pet bottle blowing machine

Continous Extrusion pet bottle blowing machine

EBM pet blow moulding machine

Product Description

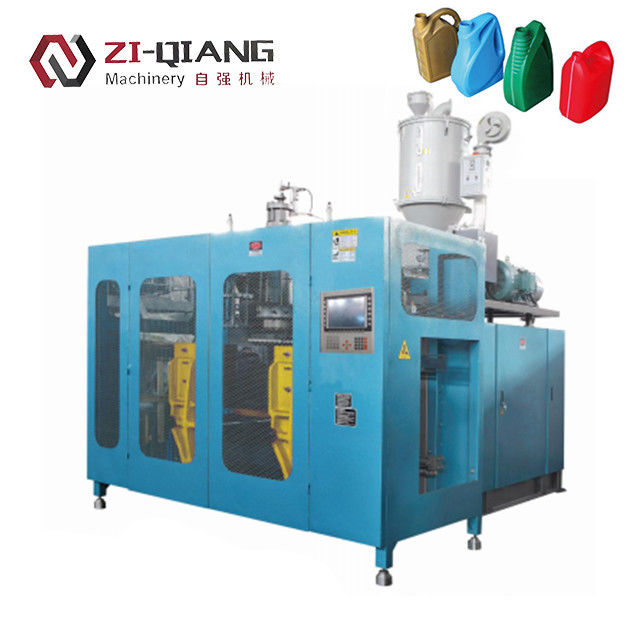

TCG Fully Automatic EBM-Continous Extrusion Blow Molding Machine 90D for Industrial Packaging

EBM (Extrusion Blow Molding) machines Description

Fully automatic EBM (Extrusion Blow Molding) machines are advanced manufacturing tools used in various industries for the efficient production of hollow plastic products.

A fully automatic EBM machine offers a range of benefits, including increased production efficiency, consistent product quality, cost savings, and enhanced safety measures. By automating key processes in extrusion blow molding, these machines improve overall productivity and competitiveness in the manufacturing industry.

Main Technical Parameter
Max. Product Volume	(L)	12
Theoretical Output	(PC/h)	550x2
Screw Diameter	(mm)	90
Screw L/D ratio	(L/D)	22-30
Screw drive power	(KW)	45-75
Screw heating capacity	(KW)	20-30
Output of HDPE	(kg/h)	120-200
Oil pump drive power(with servo)	(KW)	18.5
Clamping force	(KN)	150
Platen size	(WxH) mm	550x550
Platen Moving Stroke	(mm)	660
Platen Opening Stroke	(mm)	220-660
Max. Die diameter	(mm)	220
Central distance of bi-die	(mm)	240-280
Central distance of three-die	(mm)	90-160
Central distance of four-die	(mm)	90-120
Central distance of six-die	(mm)	80
Blowing pressure	(Mpa)	0.6-0.8
Air Consumption	(M²/H)	12
Cooling water pressure	(Mpa)	0.3
Water consumption	(L/MIN)	100
Size of machine	(LxWxH)/m	4.5x3.0x2.7
Weight of machine	(TON)	16.5

Application of Fully Automatic EBM Machine

Industrial Packaging

Industries rely on fully automatic EBM machines to create industrial packaging solutions like drums, canisters, and other specialized containers.

Medical Device Packaging

The precision and efficiency of fully automatic EBM machines make them suitable for manufacturing medical device packaging such as vials, containers, and parts.

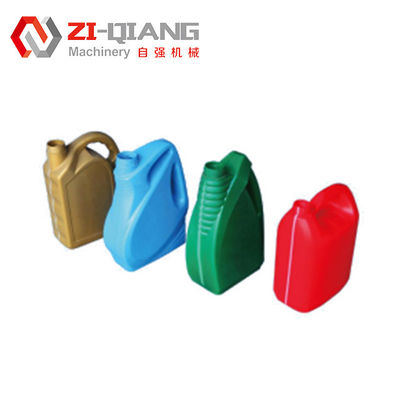

Household Products

Products like detergent bottles, cleaning solution containers, and storage containers are efficiently produced using fully automatic EBM machines.

Automatic EBM Machine

EBM Continous Extrusion Pet Bottle Blowing Machine Moulding 90D 0

Why choose us?

1. Provide comprehensive training for customers.

2. Ensure 100% operational stability of products before delivery.

3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.

4. Customized design to meet various needs of different customers.

5. 24 hours debugging, with after-sales personnel ready at all times.

6. Provide a complete set of production lines.

7. Offer online product testing equipment, image inspection, and reliable quality control.

8. Our company provides a one-year warranty for equipment molds and lifetime maintenance.
