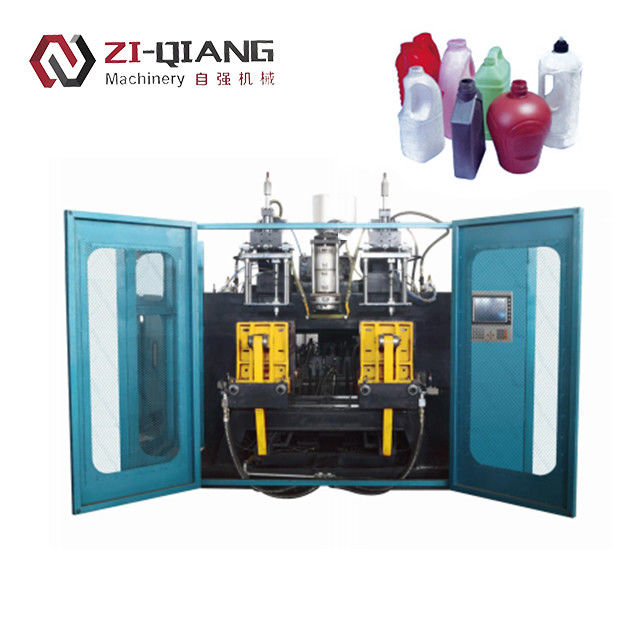

TCG EBM Plastic Extrusion Blow Molding Machine 70D Fully Automatic

Brand Name:	ZI-Qiang
Model Number:	TCG70D
MOQ:	1 set
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Automatic EBM Machine

Max. Product Volume:

6 (L)

Theoretical Output:

600x2 (PC/h)

Oil Pump Drive Power(with Servo):

11 (KW)

Platen Size:

370x450 (WxH) Mm

Platen Moving Stroke:

440 (mm)

Platen Opening Stroke:

180-530 (mm)

Central Distance Of Bi-die:

150-200 (mm)

Supply Ability:

10 set/ Month

Highlight:

EBM plastic Extrusion Blow Molding Machine

TCG Extrusion Blow Molding Machine

Fully Automatic ebm plastic machine

Product Description

TCG Fully Automatic EBM Machine 70D(Double Station)

Automatic EBM Machine Description

Fully automatic EBM machines find extensive applications across industries for the production of hollow plastic products. Their versatility, precision, and efficiency make them indispensable tools for manufacturing a wide range of items, from bottles and containers to automotive parts and medical device packaging.

Key Applications of EBM Machine :

Cosmetic Packaging

Fully automatic EBM machines cater to the cosmetic industry by producing packaging for lotions, creams, shampoos, and other beauty products.

Pharmaceutical Packaging

These machines are crucial in the pharmaceutical industry for creating packaging solutions that meet the stringent requirements for drug storage and dispensing.

Agricultural Products

Fully automatic EBM machines are utilized in the production of containers for agricultural chemicals, fertilizers, and other agricultural products.

Main Technical Parameter
Max. Product Volume	(L)	6
Theoretical Output	(PC/h)	600x2
Screw Diameter	(mm)	70
Screw L/D ratio	(L/D)	22-30
Screw drive power	(KW)	18.5-30
Screw heating capacity	(KW)	12-16
Output of HDPE	(kg/h)	70-105
Oil pump drive power(with servo)	(KW)	11
Clamping force	(KN)	90
Platen size	(WxH) mm	370x450
Platen Moving Stroke	(mm)	440
Platen Opening Stroke	(mm)	180-530
Max. Die diameter	(mm)	150
Central distance of bi-die	(mm)	150-200
Central distance of three-die	(mm)	80-120
Central distance of four-die	(mm)	60-85
Central distance of six-die	(mm)	60
Blowing pressure	(Mpa)	0.6-0.8
Air Consumption	(M²/H)	56
Cooling water pressure	(Mpa)	0.3
Water consumption	(L/MIN)	90
Size of machine	(LxWxH)/m	3.6x2.6x2.5
Weight of machine	(TON)	10.5

Automatic EBM Machine

TCG EBM Plastic Extrusion Blow Molding Machine 70D Fully Automatic 0

ZIQIANG MACHINE COAMPANY :

The company's product applications cover pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and other plastic packaging. lt canproduce 1ml-1000ml plastic products such as HDPE, LDPE, PP, PS (lactic acid bacte.ria), high transparent PS, ABS, environmental corn material, EVA, PCTG and so on.
