Extrusion Blow Molding Machine

Cosmetic Bottles Shuttle Automatic Extrusion Blow Moulding Machine OEM

All Category

IBM Injection Blow Molding Machine

Extrusion Blow Molding Machine

Injection Stretch Blow Molding Machine

MTC Mould Temperature Controller

Semi Automatic Blow Molding Machine

Bottle Packaging Machine

Ms. Isabel Zhu

isabel@ziqiangmachine.com

+8613913614902

+8613913614902

Contact Now

Cosmetic Bottles Shuttle Automatic Extrusion Blow Moulding Machine OEM

Brand Name:	ZI-Qiang
Model Number:	TCB80/90
MOQ:	1 set
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Extrusion Blow Molding Machine

Max.Product Volume:

40 (L)

Theoretical Output:

600 (PC/h)

Screw Diameter:

80 (mm)

Screw L/D Ratio:

25-30 (L/D)

Output Of HDPE:

Output Of HDPE 120-140 (kg/h)

Oil Pump Drive Power:

15-22 (KW)

Clamping Force:

240 (KN)

Supply Ability:

10 set/ Month

Highlight:

Cosmetic bottles automatic extrusion blow moulding machine

OEM automatic extrusion blow moulding machine

OEM shuttle blow molding machine

Product Description

Automatic Extrusion Blow Molding Machine For Cosmetic Packaging

Extrusion Blow Molding Machine

A fully automatic EBM machine offers a range of benefits, including increased production efficiency, consistent product quality, cost savings, and enhanced safety measures. By automating key processes in extrusion blow molding, these machines improve overall productivity and competitiveness in the manufacturing industry.

Extrusion Blow Molding (EBM) machines are a type of equipment used in the manufacturing industry to produce hollow plastic products such as bottles, containers, and other similar items.

Extrusion Blow Molding Machine Details

Main Technical Parameter
Model		80	90
Max.Product Volume	(L)	40	60
Theoretical Output	(PC/h)	600	450
Screw Diameter	(mm)	80	90
Screw L/D ratio	(L/D)	25-30	25-30
Screw drive power	(KW)	37-45	45-55
Screw heating capacity	(KW)	16-20	20-25
Output of HDPE	(kg/h)	120-140	140-180
Oil pump drive power	(KW)	15-22	18.5-37
Clamping force	(KN)	240	300
Platen Opening Stroke	(mm)	400-900	450-1050
Storage Capacity	(L)	4.8	6.6
Max.Die Diameter	(mm)	300	350
Die heat capacity	(kw)	9.5	11.5
Average Energy Consumption	(kw/h)	27.5	33.5
Blowing pressure	(Mpa)	0.8	0.8
Air Consumption	(M³/MIN)	0.8	1
Cooling water pressure	(Mpa)	0.3	0.3
Water consumption	(L/MIN)	80	100
Size of machine	(LxWxH) /m	4.3x2.2x3.6	4.6x2.5x4.0
Weight of machine	(TON)	12.5	14.5

Extrusion Blow Molding Machine Working Principle

· The process begins with plastic resin being fed into the extruder, where it is heated and formed into a tube-shaped parison.

· The parison is then transferred to the mold cavity and clamped into place.

· Compressed air is blown into the parison, expanding it to conform to the shape of the mold.

· Once the plastic has cooled and solidified, the mold opens, and the finished product is ejected.

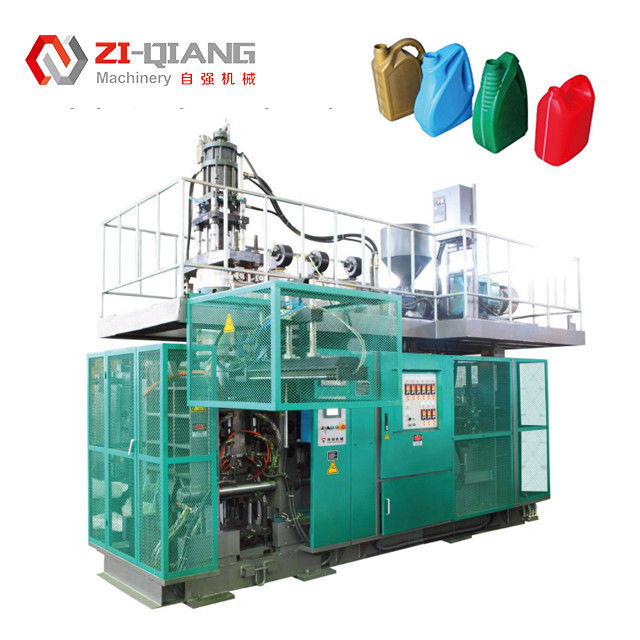

Automatic Extrusion Blow Molding Machine

Cosmetic Bottles Shuttle Automatic Extrusion Blow Moulding Machine OEM 0

Why choose us?

1. Provide comprehensive training for customers.

2. Ensure 100% operational stability of products before delivery.

3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.

4. Customized design to meet various needs of different customers.

5. 24 hours debugging, with after-sales personnel ready at all times.

6. Provide a complete set of production lines.

7. Offer online product testing equipment, image inspection, and reliable quality control.

8. Our company provides a one-year warranty for equipment molds and lifetime maintenance.
