Automatic Hollow Plastic Extrusion Blow Molding Machine Equipment 80/90D

Brand Name:	ZI-Qiang
Model Number:	TCY80/90D
MOQ:	1 set
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Extrusion Blow Molding Machines

Max.Product Volume:

20(L)

Theoretical Output:

550x2 (PC/h)

Screw Diameter:

90 (mm)

Screw L/D Ratio:

Screw L/D Ratio 25 (L/D)

Screw Drive Power:

45 (KW)

Screw Heating Capacity:

20 (KW)

Output Of HDPE:

Output Of HDPE 150 (kg/h)

Supply Ability:

10 set/ Month

Highlight:

Automatic Extrusion Blow Molding Machine

90D Extrusion Blow Molding Machine

Hollow Plastic Blow Molding Equipment

Product Description

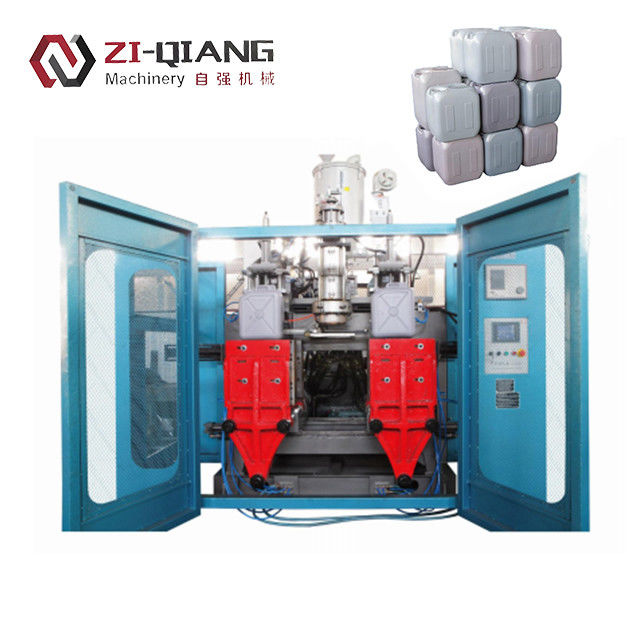

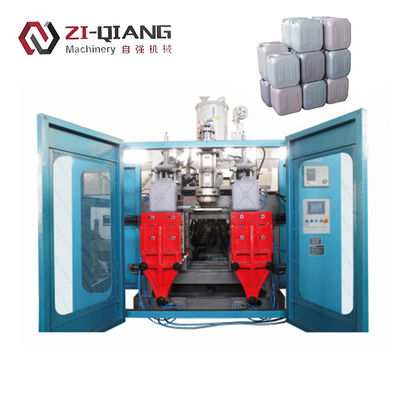

TCY 80/90D Automatic Extrusion Blow Molding Machines Hollow Plastic Products

Extrusion Blow Molding machine

An EBM (Extrusion Blow Molding) machine is commonly used in the manufacturing industry to produce hollow plastic products like bottles and containers. A fully automatic EBM machine enhances efficiency by automating the extrusion blow molding process.

Extrusion Blow Molding machines are essential in the plastics industry for producing a diverse range of hollow plastic products efficiently and cost-effectively. Their versatility, productivity, and design flexibility make them indispensable tools for manufacturers across various sectors.

Advantages of Extrusion Blow Molding machines

· Cost-Effective: EBM is a cost-effective manufacturing process suitable for high-volume production.

· Design Flexibility: EBM allows for the production of a wide range of product shapes and sizes.

· High Productivity: These machines offer efficient production rates, contributing to increased productivity.

· Material Versatility: EBM can process various types of plastics, providing flexibility in material selection.

Main Technical Parameter
Model		80	90
Max.Product Volume	(L)	12	20
Theoretical Output	(PC/h)	600x2	550x2
Screw Diameter	(mm)	80	90
Screw L/D ratio	(L/D)	25	25
Screw drive power	(KW)	37	45
Screw heating capacity	(KW)	16	20
Output of HDPE	(kg/h)	120	150
Oil pump drive power	(KW)	11-18.5	15-22
Clamping force	(KN)	125	200
Platen size	(WxH) mm	550x600	600x660
Platen Opening Stroke	(mm)	220-570	330-730
Max. Die Diameter	(mm)	200	230
Die heat capacity	(kw)	4.5-7.0	6.5
Average Energy Consumption	(kw/h)	24.5	27.5
Blowing pressure	(Mpa)	0.6	0.6
Air Consumption	(M³/MIN)	1	1.1
Cooling water pressure	(Mpa)	0.3	0.3
Water consumption	(L/MIN)	90	100
Size of machine	(LxWxH)/m	4.0x2.6x3.0	4.2x2.8x3.2
Weight of machine	(TON)	12.5	14.5

Application of Automatic Extrusion Blow Molding machines

1. Bottle Production

Fully automatic EBM machines are widely used in the production of plastic bottles for beverages, household products, personal care items, and more.

2. Container Manufacturing

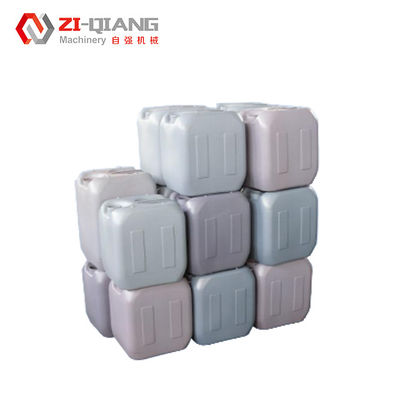

These machines are ideal for producing containers of different shapes and sizes, used in industries such as food packaging, pharmaceuticals, and cosmetics.

3. Automotive Parts

Fully automatic EBM machines can manufacture hollow plastic components for automotive applications, including reservoirs, ducts, and containers.

ZIQIANG MACHINE FACTORY :

Automatic Hollow Plastic Extrusion Blow Molding Machine Equipment 80/90D 0
