Fully Automatic Plastic EBM Extrusion Blow Molding Machine 75mm Screw

Brand Name:	ZI-Qiang
Model Number:	TCY75
MOQ:	1 set
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Fully Automatic EBM Extrusion Blow Molding Machine

Max.Product Volume:

12 (L)

Theoretical Output:

800 (PC/h)

Weight Of Machine:

8.1 (TON)

Size Of Machine:

3.9x2.2x3.1 (LxWxH)/m

Water Consumption:

70 (L/MIN)

Cooling Water Pressure:

0.3 (Mpa)

Air Consumption:

0.8 (M³/MIN)

Supply Ability:

10 set/ Month

Highlight:

Plastic EBM Extrusion Blow Molding Machine

75mm Screw Extrusion Blow Molding Machine

75mm Screw plastic extrusion blow moulding machine

Product Description

Single Station Fully Automatic EBM Extrusion Blow Molding Machine 75mm Screw

EBM Extrusion Blow Molding Machine Description

An EBM machine is a versatile manufacturing tool that utilizes the extrusion process to create hollow plastic products.

A fully automatic EBM machine offers a range of benefits, including increased production efficiency, consistent product quality, cost savings, and enhanced safety measures. By automating key processes in extrusion blow molding, these machines improve overall productivity and competitiveness in the manufacturing industry.

Working Principle of EBM Extrusion Blow Molding Machine

· The process begins with plastic resin being fed into the extruder, where it is heated and formed into a tube-shaped parison.

· The parison is then transferred to the mold cavity and clamped into place.

· Compressed air is blown into the parison, expanding it to conform to the shape of the mold.

· Once the plastic has cooled and solidified, the mold opens, and the finished product is ejected.

EBM Extrusion Blow Molding Machine Details

Main Technical Parameter
Max.Product Volume	(L)	12
Theoretical Output	(PC/h)	800
Screw Diameter	(mm)	75
Screw L/D ratio	(L/D)	24-30
Screw drive power	(KW)	18.5-30
Screw heating capacity	(KW)	12月16日
Output of HDPE	(kg/h)	90-105
Oil pump drive power	(KW)	7.5-11
Clamping force	(KN)	105-150
Platen size	(WxH) mm	500x550
Platen Opening Stroke	(mm)	220-570
Max. Die diameter	(mm)	200
Central distance of bi-die	(mm)	240-290
Max.Die Diameter (Bi-die)	(mm)	160
Central distance of three-die	(mm)	110-160
Max.Die Diameter (three-die)	(mm)	80
Central distance of four-die	(mm)	100-140
Max.Die Diameter (four-die)	(mm)	60
Die heat capacity	(kw)	4.5-7.0
Average Energy Consumption	(kw/h)	22.2
Blowing pressure	(Mpa)	0.6
Air Consumption	(M³/MIN)	0.8
Cooling water pressure	(Mpa)	0.3
Water consumption	(L/MIN)	70
Size of machine	(LxWxH)/m	3.9x2.2x3.1
Weight of machine	(TON)	8.1

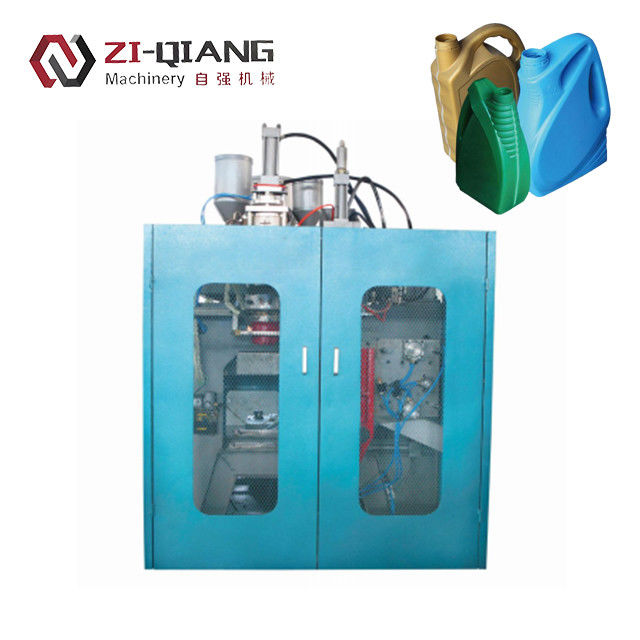

Automatic EBM Machine

ZIQIANG MACHINE FACTORY :
