Industrial Packaging Extrusion Blow Machine Molding EBM Plastic Machine

Brand Name:	ZI-Qiang
Model Number:	TCY70D
MOQ:	1 set
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Extrusion Blow Molding Machine

Max. Product Volume:

6 (L)

Theoretical Output:

700x2 (PC/h)

Screw Diameter:

70 (mm)

Screw L/D Ratio:

24-30 (L/D)

Screw Drive Power:

18.5-30 (KW)

Screw Heating Capacity:

12-14.5 (KW)

Output Of HDPE:

70-95 (kg/h)

Supply Ability:

10 set/ Month

Highlight:

Industrial extrusion blow machine

EBM extrusion blow machine

Industrial ebm plastic machine

Product Description

70 Double Station Fully Automatic Extrusion Blow Molding Machine for Industrial Packaging

Automatic EBM Machine Description

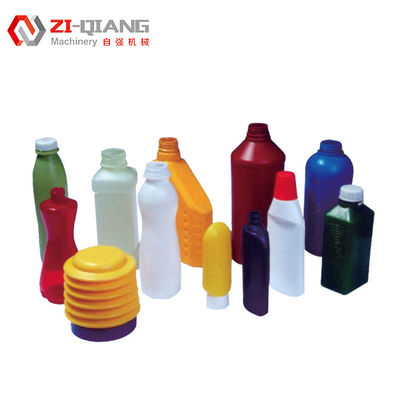

An EBM (Extrusion Blow Molding) machine is commonly used in the manufacturing industry to produce hollow plastic products like bottles and containers. A fully automatic EBM machine enhances efficiency by automating the extrusion blow molding process.

Fully automatic EBM (Extrusion Blow Molding) machines are advanced manufacturing tools used in various industries for the efficient production of hollow plastic products.

Automatic Extrusion Blow Molding Machine Details

Main Technical Parameter
Max. Product Volume	(L)	6
Theoretical Output	(PC/h)	700x2
Screw Diameter	(mm)	70
Screw L/D ratio	(L/D)	24-30
Screw drive power	(KW)	18.5-30
Screw heating capacity	(KW)	12-14.5
Output of HDPE	(kg/h)	70-95
Oil pump drive power	(KW)	5.5-7.5
Clamping force	(KN)	o
Platen size	(WxH) mm	368x430
Platen Opening Stroke	(mm)	178~538
Max. Die diameter	(mm)	150
Central distance of bi-die	(mm)	150-200
Max. Die Diameter (Bidie)	(mm)	100
Central distance of three-die	(mm)	110-140
Max. Die Diameter (three-die)	(mm)	70
Central distance of four-die	(mm)	70-100
Max. Die Diameter (four-die)	(mm)	45
Average Energy Consumption	(kw/h)	18.5
Blowing pressure	(Mpa)	0.6
Air Consumption	(M³/MIN)	0.4
Cooling water pressure	(Mpa)	0.3
Water consumption	(L/MIN)	70
Size of machine	(LxWxH) /m	3.5x2.1x2.6
Weight of machine	(TON)	8

Advantages of Extrusion Blow Molding Machine

· Cost-Effective: EBM is a cost-effective manufacturing process suitable for high-volume production.

· Design Flexibility: EBM allows for the production of a wide range of product shapes and sizes.

· High Productivity: These machines offer efficient production rates, contributing to increased productivity.

· Material Versatility: EBM can process various types of plastics, providing flexibility in material selection.

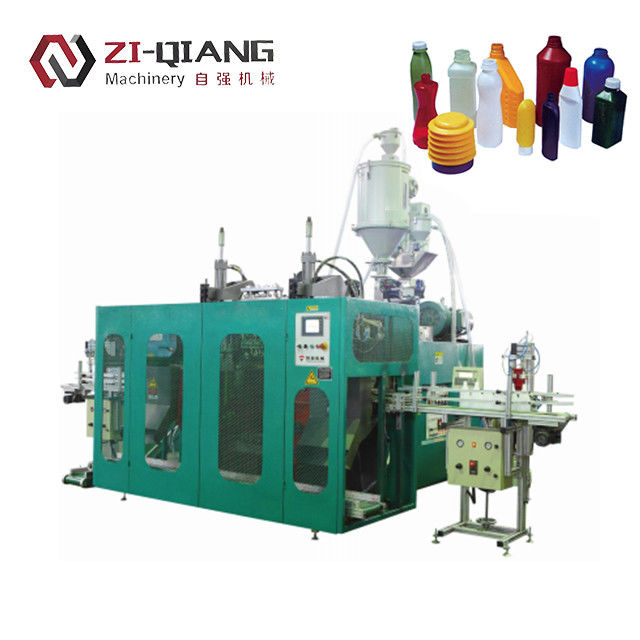

Automatic Extrusion Blow Molding Machine

Industrial Packaging Extrusion Blow Machine Molding EBM Plastic Machine 0

Why choose us?

1. Provide comprehensive training for customers.

2. Ensure 100% operational stability of products before delivery.

3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.

4. Customized design to meet various needs of different customers.

5. 24 hours debugging, with after-sales personnel ready at all times.

6. Provide a complete set of production lines.

7. Offer online product testing equipment, image inspection, and reliable quality control.

8. Our company provides a one-year warranty for equipment molds and lifetime maintenance.
