Pet Plastic Extrusion Blow Molding Machine Double Station 60D 16.5kw/H

Brand Name:	ZI-Qiang
Model Number:	TCY60D
MOQ:	1 set
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Fully Automatic Extrusion Blow Molding Machine

Average Energy Consumption:

16.5 (kw/h)

Blowing Pressure:

0.6 (Mpa)

Air Consumption:

0.4 (M³/MIN)

Cooling Water Pressure:

0.3 (Mpa)

Water Consumption:

60 (L/MIN)

Size Of Machine:

3.1x2.15x2.6 (LxWxH) /m

Weight Of Machine:

6.5 (TON)

Supply Ability:

10 set/ Month

Highlight:

Pet plastic Extrusion Blow Molding Machine

Double Station Extrusion Blow Molding Machine

plastic pet blowing machine

Product Description

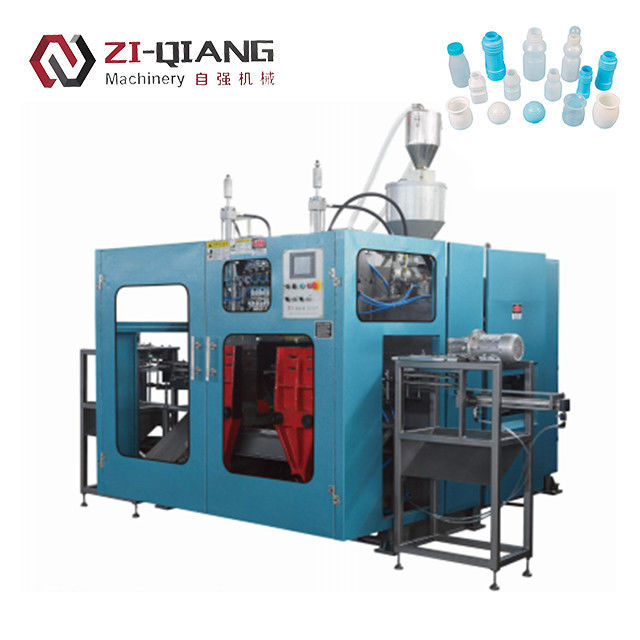

Double Station 60D Automatic Extrusion Blow Moulding Machine

automatic extrusion blow moulding machine

Description

Extrusion Blow Molding (EBM) machines are a type of equipment used in the manufacturing industry to produce hollow plastic products such as bottles, containers, and other similar items.

· An EBM machine is a versatile manufacturing tool that utilizes the extrusion process to create hollow plastic products.

· EBM machines are commonly used in industries such as packaging, automotive, medical, and consumer goods for the production of bottles, containers, tanks, and other hollow plastic products.

automatic extrusion blow moulding machine details

Main Technical Parameter
Max Product Volume	(L)	2
Theoretical Output	(PC/h)	800x2
Screw Diameter	(mm)	60
Screw L/D ratio	(L/D)	24-30
Screw drive power	(KW)	15-18.5
Screw heating capacity	(KW)	10.8-12
Output of HDPE	(kg/h)	60-75
Oil pump drive power	(KW)	5.5
Clamping force	(KN)	40
Platen size	(WxH) mm	338x410
Platen Opening Stroke	(mm)	138~368
Max. Die diameter	(mm)	90
Central distance of bi-die	(mm)	130-150
Max. Die Diameter (Bi-die)	(mm)	80
Central distance of three-die	(mm)	80-110
Max.Die Diameter (three-die)	(mm)	40
Central distance of four-die	(mm)	60-85
Max. Die Diameter (four-die)	(mm)	25
Average Energy Consumption	(kw/h)	16.5
Blowing pressure	(Mpa)	0.6
Air Consumption	(M³/MIN)	0.4
Cooling water pressure	(Mpa)	0.3
Water consumption	(L/MIN)	60
Size of machine	(LxWxH) /m	3.1x2.15x2.6
Weight of machine	(TON)	6.5

Application of Automatic Extrusion Blow Moulding Machine

Cosmetic Packaging

Fully automatic EBM machines cater to the cosmetic industry by producing packaging for lotions, creams, shampoos, and other beauty products.

Pharmaceutical Packaging

These machines are crucial in the pharmaceutical industry for creating packaging solutions that meet the stringent requirements for drug storage and dispensing.

Agricultural Products

Fully automatic EBM machines are utilized in the production of containers for agricultural chemicals, fertilizers, and other agricultural products.

Automatic Extrusion Blow Molding Machine

Why choose us?

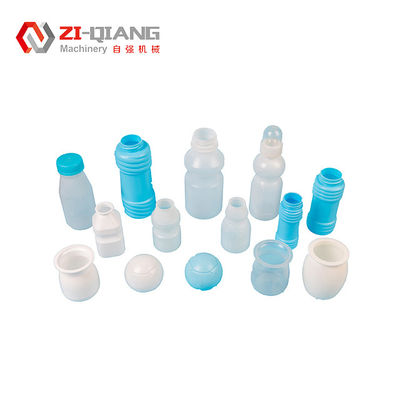

The company's product applications cover pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and other plastic packaging. lt canproduce 1ml-1000ml plastic products such as HDPE, LDPE, PP, PS (lactic acid bacte.ria), high transparent PS, ABS, environmental corn material, EVA, PCTG and so on.

1. Provide comprehensive training for customers.

2. Ensure 100% operational stability of products before delivery.

3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.

4. Customized design to meet various needs of different customers.

5. 24 hours debugging, with after-sales personnel ready at all times.
