Extrusion Blow Molding Machine

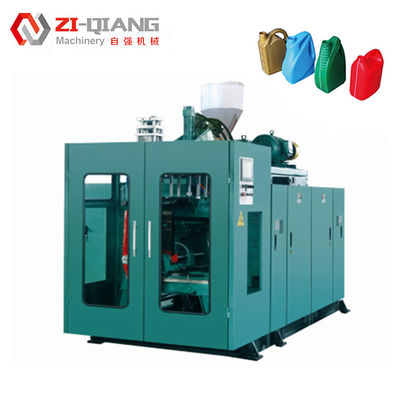

Single Station 60 Automatic Blow Co Eextrusion Moulding Machine For Packaging

All Category

IBM Injection Blow Molding Machine

Extrusion Blow Molding Machine

Injection Stretch Blow Molding Machine

MTC Mould Temperature Controller

Semi Automatic Blow Molding Machine

Bottle Packaging Machine

Ms. Isabel Zhu

isabel@ziqiangmachine.com

+8613913614902

+8613913614902

Contact Now

Single Station 60 Automatic Blow Co Eextrusion Moulding Machine For Packaging

Brand Name:	ZI-Qiang
Model Number:	TCY60
MOQ:	1 set
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Single Station Extrusion Blow Molding Machine

Clamping Force:

70 (KN)

Platen Size:

368x430 (WxH) Mm

Platen Opening Stroke:

188~538 (mm)

Max. Die Diameter:

150 (mm)

Central Distance Of Bi-die:

150-200 (mm)

Max. Die Diameter (Bi-die):

100 (mm)

Central Distance Of Three-die:

100-120 (mm)

Supply Ability:

10 set/ Month

Highlight:

Single Station extrusion moulding machine

blow extrusion moulding machine

Packaging co extrusion blow molding machine

Product Description

Single Station 60 Fully Automatic EBM Extrusion Blow Molding Machine For Packaging

A Single Station Automatic Extrusion Blow Molding Machine is a type of equipment used in the manufacturing industry to produce hollow plastic products through the extrusion blow molding process.

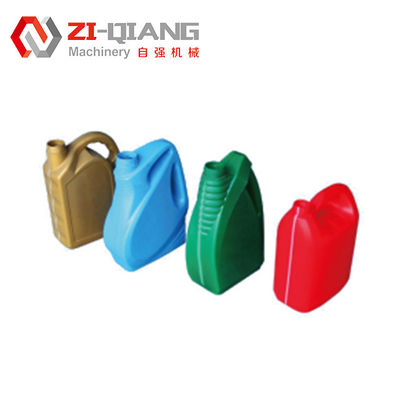

· Single station automatic extrusion blow molding machines are used in industries such as packaging, automotive, pharmaceuticals, and consumer goods for producing a wide range of hollow plastic products.

Advantages of Extrusion Blow Molding Machine

· Automation: Fully automated processes reduce the need for manual intervention, improving efficiency and consistency.

· Product Quality: Automated systems help maintain consistent product quality throughout the production cycle.

· Cost-Effective: Automation leads to cost savings in labor and material usage.

Main Technical Parameter
Max.Product Volume	(L)	6
Theoretical Output	(PC/h)	1500
Screw Diameter	(mm)	60
Screw L/D ratio	(L/D)	24-30
Screw drive power	(KW)	15-18.5
Screw heating capacity	(KW)	10.8-12
Output of HDPE	(kg/h)	60-75
Oil pump drive power	(KW)	5.5
Clamping force	(KN)	70
Platen size	(WxH) mm	368x430
Platen Opening Stroke	(mm)	188~538
Max. Die diameter	(mm)	150
Central distance of bi-die	(mm)	150-200
Max. Die Diameter (Bi-die)	(mm)	100
Central distance of three-die	(mm)	100-120
Max. Die Diameter (three-die)	(mm)	60
Central distance of four-die	(mm)	85
Max. Die Diameter (four-die)	(mm)	30
Average Energy Consumption	(kw/h)	16.5
Blowing pressure	(Mpa)	0.6
Air Consumption	(M³/MIN)	0.5
Cooling water pressure	(Mpa)	0.3
Water consumption	(L/MIN)	50
Size of machine	(LxWxH) /m	2.95x1.9x2.5
Weight of machine	(TON)	5.5

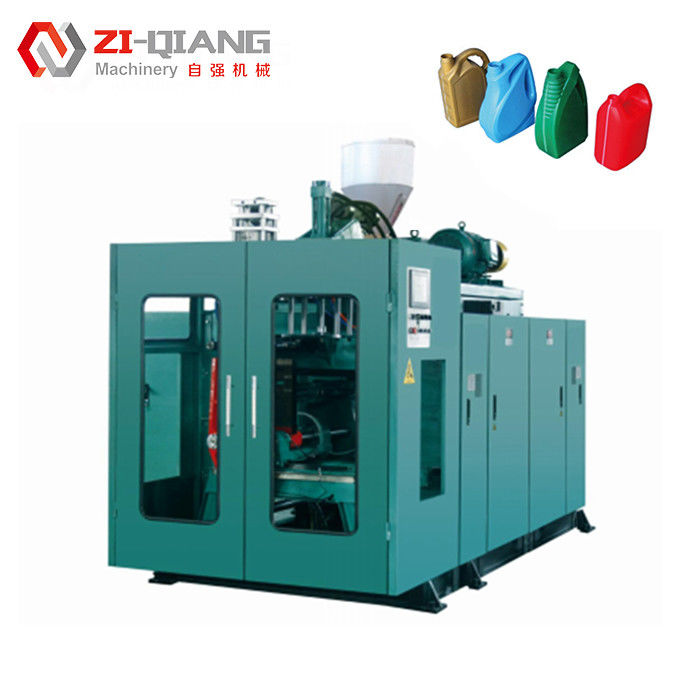

Automatic Extrusion Blow Molding Machine

ZIQIANG MACHINE FACTORY:

Working Principle of Extrusion Blow Molding Machine

· The process begins with plastic resin being fed into the extruder, where it is heated and formed into a tube-shaped parison.

· The parison is then transferred to the mold cavity and clamped into place.

· Compressed air is blown into the parison, expanding it to conform to the shape of the mold.

· Once the plastic has cooled and solidified, the mold opens, and the finished product is ejected.
