Injection Stretch Blow Molding Machine

ODM Injection Stretch Blow Molding Machine Baby PP Bottle Beverage Packaging

All Category

IBM Injection Blow Molding Machine

Extrusion Blow Molding Machine

Injection Stretch Blow Molding Machine

MTC Mould Temperature Controller

Semi Automatic Blow Molding Machine

Bottle Packaging Machine

Ms. Isabel Zhu

isabel@ziqiangmachine.com

+8613913614902

+8613913614902

Contact Now

ODM Injection Stretch Blow Molding Machine Baby PP Bottle Beverage Packaging

Brand Name:	ZI-Qiang
Model Number:	ZQA-ES，ZQA-FS，ZQA-JS
MOQ:	1 set
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Injection Stretch Blow Molding Machine

Clamping Stroke:

150mm ； 200mm ；225mm

Mold-open Distance:

Mold-close Distance:

130mm; 150mm ; 196mm

Stretching Stroke:

350mm ;400mm; 450mm

Application:

Beverage Packaging ；pharmaceuticals, Personal Care Products

Supply Ability:

10 set/ Month

Highlight:

ODM Injection Stretch Blow Molding Machine

PP Bottle Injection Stretch Blow Molding Machine

PP stretch blow moulding machine

Product Description

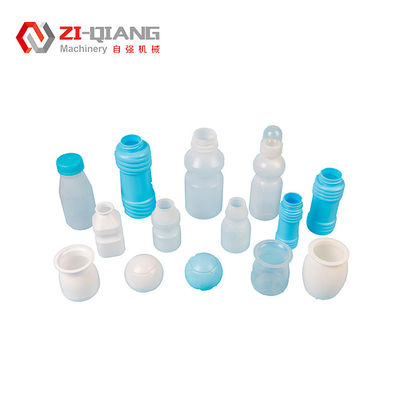

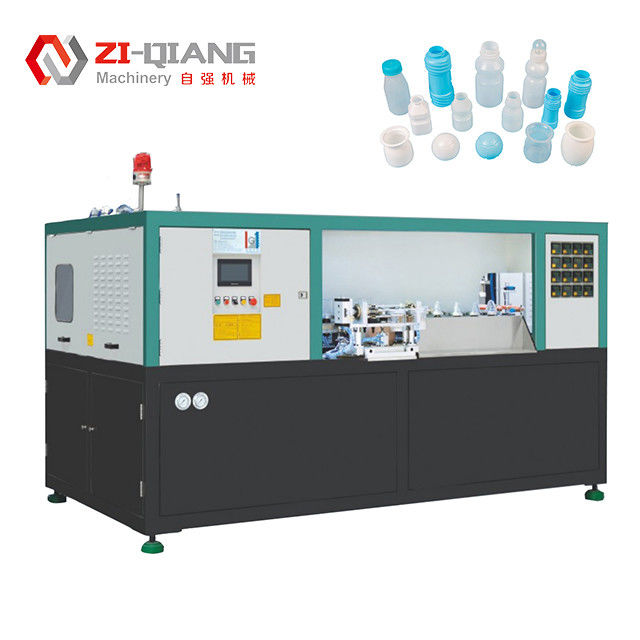

Injection Stretch Blow Molding Machine Baby/ PP Bottle Beverage Packaging

Injection Stretch Blow Molding Machine description

Injection Stretch Blow Molding (ISBM) machines are sophisticated pieces of equipment used in the manufacturing industry to produce hollow plastic containers with high precision and efficiency.

· ISBM machines are compatible with a wide range of materials, including PET (Polyethylene Terephthalate), enabling the production of containers with different properties suited for specific applications.

Stretching and Blowing

· The conditioned preform is transferred to the stretch blow molding station where it is stretched longitudinally and radially before being blown into the final container shape using compressed air.

Mold Design

· ISBM machines utilize molds with intricate designs that allow for the stretching and blowing of preforms into various container shapes with high precision.

Injection Stretch Blow Molding Machine details

Model		Unit	ZQA.FS-1CG130	ZQA.FS-1CG150	ZQA.FS-1CG196	ZQA.FS-1CG220	ZQA.P.FS-2CB130(L)
Forming set specifications	Clamping stroke	mm	150	200	225	225	160
Molding	Mold-open distance	mm	330	430	509	509	360
	Mold-close distance	mm	180	230	284	284	200
	Stretching stroke	mm	350	400	450	500	350
	Mold-open distance	mm	50	50	50	50	50
	Mold-close distance	mm	130	150	196	220	130
	Preform Holder		50	42	40	40	74
	Cavities		1	1	1	1	2
Bottle Specification	Max.Container Volume	ml	1500	2500	5000	5000	1000
Container	Neck Diameter Range	mm	98	110	110	138	100
	Max.Contianer Diameter	mm	110	130	170	190	110
	Max.Container Height	mm	250	250	330	330	250
	Theoretical Output	bph	700	700	600	600	700
Power Specifications	Max.Heating Power	kw	16	12	24	36	66
Electrical System	Heating Power	kw	10	10	12	14	38
Air pressure specifications	Operating Pressure	kg/cm2	7	7	7	7	7
Air System	Low Pressure Air Consumption	Itr/min	800	800	800	800	1500
	Blowing Pressure	kg/cm2	35	35	30	30	30
	High Pressure Air consumption	Itr/min	1200	2000	3500	3500	1000
Cooling water specifications	Operating Pressure	kg/cm2	5-6	5-6	5-6	5-6	5-6
Cooling water	Temperature	°C	8-10	8-12	8-12	8-12	8-10
	Flow rate	Itr/min	30	30	30	30	30 30
Machine specifications	Size (LWH)	mm	316015001800	310014501800	351018302000	420020702000	451018002050
Machine	Weight	kg	2000	2500	2800	3200	4000

· Injection Stretch Blow Molding machines are commonly used in industries such as beverage packaging, pharmaceuticals, personal care products, and household chemicals for manufacturing bottles, jars, and containers.
