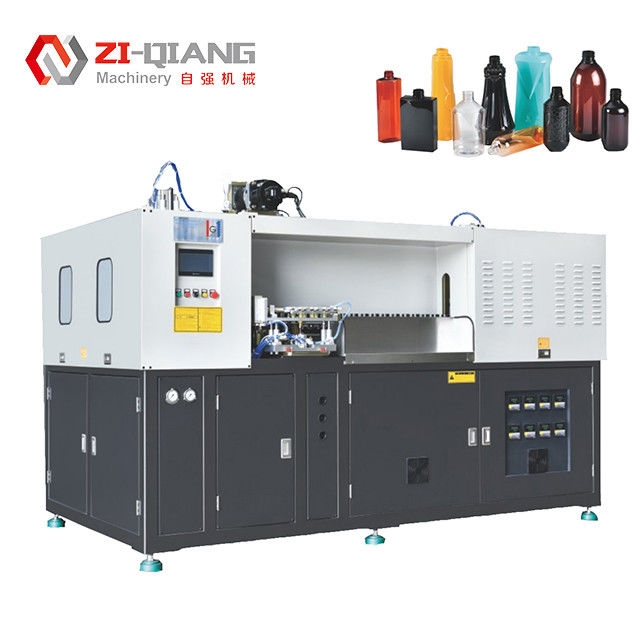

Polyethylene Terephthalate PET Blowing Machine Plastic Bottle moulding

Brand Name:	ZI-Qiang
Model Number:	ZQA-ES，ZQA-FS
MOQ:	1 set
Packaging Details:	20' Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Cosmetic Bottle SeriesBlow Molding Machine

Applications:

Personal Care And Cosmetics / Household Products

Clamping Stroke:

132mm ； 148mm ；

Mold-open Distance:

50mm ；

Mold-close Distance:

114mm ；114.3mm ；130mm

Stretching Stroke:

400mm ； 450mm ；400mm

Supply Ability:

10 set/ Month

Highlight:

Polyethylene pet blowing machine

Plastic Bottle pet blowing machine

PET plastic blow moulding machine

Product Description

Daily Chemicals, Cosmetic Bottle SeriesBlow Molding Machine

Bottle Series Blow Molding Machine Information

Injection Stretch Blow Molding Machines are versatile and efficient equipment used in the manufacturing industry to produce high-quality PET containers through a combination of injection molding and stretch blow molding processes. With their design flexibility, precision molding capabilities, and high output capacity, these machines are crucial for the production of various types of containers for a wide range of applications.

An Injection Stretch Blow Molding Machine is a type of equipment used in the manufacturing industry to produce hollow containers, typically made of PET (Polyethylene Terephthalate), through a combined injection molding and stretch blow molding process.

Bottle SeriesBlow Molding Machine Details

Model		Unit	ZQA.ES-4C114	ZQA.ES-4C114.3	ZQA.ES-4C130	ZQA.ES-4C150	ZQA.ES-6C76	ZQA.ES-6C114	ZQA.FS-1CG130	ZQA.FS-1CG150	ZQA.FS-1CG196	ZQA.FS-1CG220	ZQA.FS-2CG220
Forming set specifications	Clamping stroke	mm	132	132	148	165	100	128	150	200	225	225	225
Molding	Mold-open distance	mm	362	312	378	415	300	328	330	430	509	509	509
	Mold-close distance	mm	230	180	230	250	200	200	180	230	284	284	284
	Stretching stroke	mm	400	450	400	400	350	350/450	350	400	450	500	500
	Mold-open distance	mm	50	50	50	50	50	60	50	50	50	50	50
	Mold-close distance	mm	114	114.3	130	150	76	114	130	150	196	220	220
	Preform Holder		100	100	92	86	130	96	50	42	40	40	58
	Cavities		4	4	4	4	6	6	1	1	1	1	2
Bottle Specification	Max.Container Volume	ml	1300	1000	1500	2500	700	1500	1500	2500	5000	5000	5000
Container	Neck Diameter Range	mm	88	88	98	110	38	68	98	110	110	138	168
	Max.Contianer Diameter	mm	94	94	110	130	68	94	110	130	170	190	190
	Max.Container Height	mm	250/330	260	250	230	240	250/330	250	250	330	330	330
	理论产能 Theoretical Output	bph	3300	4000	3200	4000	7200	5400	700	700	600	600	1000
Power Specifications	Max.Heating Power	kw	50	52	68	78	62.5	72	16	12	24	36	72
Electrical System	Heating Power	kw	25	23	30	32	26	32	10	10	12	14	30
Air pressure specifications	Operating Pressure	kg/cm2	7	7	7	7	7	7	7	7	7	7	7
Air System	Low Pressure Air Consumption	Itr/min	800	1200	800	800	900	1000	800	800	800	800	1600
	Blowing Pressure	kg/cm2	35	35	35	30	35	35	35	35	30	30	30
	High Pressure Air consumption	Itr/min	5000	2400	6000	6500	5800	9500	1200	2000	3500	3500	5800
Cooling water specifications	Operating Pressure	kg/cm2	5-6	5-6	5-6	5-6	5-6	5-6	5-6	5-6	5-6	5-6	5-6
Cooling water	Temperature	°C	8-12	8-12	8-12	8-12	8-12	8-12	8-10	8-12	8-12	8-12	8-10
Cooling water	Flow rate	Itr/min	40	40	40	40	60	40	30	30	30	30	80
Machine specifications	Size (LWH)	mm	512021502350	512021502310	545020702320	620021502050	469020002000	530021502250	316015001800	310014501800	351018302000	420020702000	420023002000
Machine	Weight	kg	5500	5500	6500	8000	5500	6500	2000	2500	2800	3200	4500

Applications of Injection Stretch Blow Molding Machines

1. Bottled Water: Injection Stretch Blow Molding Machines are widely used to produce PET bottles for still and carbonated water.

2. Carbonated Beverages: These machines are employed for manufacturing PET bottles used for carbonated soft drinks and sodas.

3. Juices and Energy Drinks: PET containers for juices, energy drinks, and sports drinks are often produced using Injection Stretch Blow Molding Machines.

Polyethylene Terephthalate PET Blowing Machine Plastic Bottle moulding 0
