Extrusion Blow Molding Machine
>

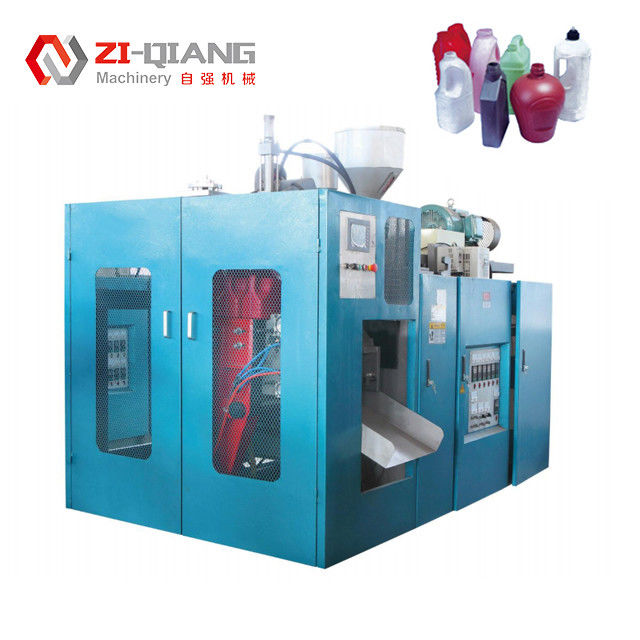

Fully Automatic EBM Shuttle Blow Molding Equipment For Bottle Production

Fully Automatic EBM Shuttle Blow Molding Equipment For Bottle Production

Brand Name: ZI-Qiang
Model Number: TCB50/60
MOQ: 1 set
Packaging Details: 20' Container
Payment Terms: D/A, D/P, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Automatic EBM Machine
Output Of HDPE:
30-35 (kg/h)
Platen Opening Stroke:
138~368 (mm)
Max. Die Diameter:
90 (mm)
Oil Pump Drive Power:
5.5 (KW)
Application:
Household Products ; Cosmetic Packaging
Max Die Diameter (bi-die):
55 (mm)
Central Distance Of Three-die:
80-110 (mm)
Supply Ability:
10 set/ Month
Highlight:

EBM Extrusion Blow Molding Machine

,

Bottle Extrusion Blow Molding Machine

,

Bottle shuttle blow molding machine

Product Description

TCB Fully Automatic EBM Blow Molding Equipment For Bottle Production

Extrusion Blow Molding Machine Description

Extrusion Blow Molding machines are essential in the plastics industry for producing a diverse range of hollow plastic products efficiently and cost-effectively. Their versatility, productivity, and design flexibility make them indispensable tools for manufacturers across various sectors.

Extrusion Blow Molding machines are instrumental in container manufacturing, offering design flexibility, fast production cycles, cost-effectiveness, and quality control features. With their ability to produce a wide range of container types and sizes, EBM machines are essential tools for manufacturers looking to efficiently produce containers for various industries.



Details of Extrusion Blow Molding Machine


Main Technical Parameter
Model 50 60
Max.Product Volume (L) 2.5 6
Theoretical Output (PCh) 1500 1200
Screw Diameter (mm) 50 60
Screw L/D ratio (lD) 24-30 24-30
Screw drive power (KW) 11-15 15-18.5
Screw heating capacity (KW) 7.8-8.5 10.8-12
Output of HDPE (kg/h) 30-35 60-68
Oil pump drive power (KW) 5.5 5.5
Clamping force (KN) 35 68
Platen size (WxH) mm 328x420 368x450
Platen Opening Stroke (mm) 138~368 178~538
Max. Die diameter (mm) 90 150
Central distance of bi-die (mm) 110-130 130-200
Max Die Diameter (bi-die) (mm) 55 100
Central distance of three-die (mm) 80-110 100-120
Max. Die Diameter(three-die) (mm) 40 60
Central distance of four-die (mm) 60-85 60-85
Max. Die Diameter(four-die) (mm) 25 30
Average Energy Consumption (kw/h) 12.5 16.5
Blowing pressure (Mpa) 0.6 0.6
Air Consumption (M³/MIN) 0.4 0.5
Cooling water pressure (Mpa) 0.3 0.3
Water consumption (L/MIN) 30 50
Size of machine (LxWxH) /m 2.8x1.8x2.3 3.0x1.9x2.5
Weight of machine (TON) 3 4.5



Here are some key applications where fully automatic EBM machines excel:

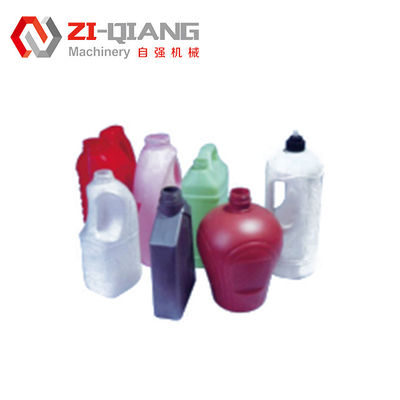

1. Bottle Production

Fully automatic EBM machines are widely used in the production of plastic bottles for beverages, household products, personal care items, and more.

2. Container Manufacturing

These machines are ideal for producing containers of different shapes and sizes, used in industries such as food packaging, pharmaceuticals, and cosmetics.

3. Automotive Parts

Fully automatic EBM machines can manufacture hollow plastic components for automotive applications, including reservoirs, ducts, and containers.

4. Industrial Packaging

Industries rely on fully automatic EBM machines to create industrial packaging solutions like drums, canisters, and other specialized containers.



ZIQIANG MACHINE FACTORY :

Fully Automatic EBM Shuttle Blow Molding Equipment For Bottle Production 0Fully Automatic EBM Shuttle Blow Molding Equipment For Bottle Production 1

Fully Automatic EBM Shuttle Blow Molding Equipment For Bottle Production 2



Why choose us?

1. Provide comprehensive training for customers.

2. Ensure 100% operational stability of products before delivery.

3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.

4. Customized design to meet various needs of different customers.

5. 24 hours debugging, with after-sales personnel ready at all times.

6. Provide a complete set of production lines.

7. Offer online product testing equipment, image inspection, and reliable quality control.

8. Our company provides a one-year warranty for equipment molds and lifetime maintenance.
