Synchronized IBM Injection Blow Molding Machine PP PE Water Bottle

Brand Name:	Zl-Qiang
Model Number:	ZQ135
MOQ:	1 set
Price:	178888
Packaging Details:	20'Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

IBM Injection Blow Molding Machine

Heating Power:

Number Of Barrel Zone:

Injection Stroke:

200mm

Min.Air Pressure Of Compressed Air:

0.7-1.2MPa

Compressed Air Capacity:

0.7M³/min

Water Flowage:

4M³/h

Cooling Water Pressure:

0.3-0.4MPa

Supply Ability:

10 set/ Month

Highlight:

synchronized IBM Injection Blow Molding Machine

PP PE IBM Injection Blow Molding Machine

PP PE water bottle injection molding machine

Product Description

ZQ135 IBM Injection Blow Molding Machine PP PE Bottle 135 Ton Machine

IBM Injection Blow Molding Machine Description

All European style structure, the silver mold force is 20%-30% larger than the products in the same industry.

Equipped with high-precision angle splitter as standard, it can realize the synchronization between opening and closing molds and turret lifting and lowering.

Unique pressurized clamping structure, the pressurized cylinder does not participate in the opening and closing of the mold action, standard hydraulic dual system, energy consumption is 20%-30% more than the same industry products.

IBM Injection Blow Molding Machine Details

Item	Unit	ZQ135
Injection System
Screw Diameter	mm	70
Screw L/D	%	22:01
Injection weight	g	650
Heating power	KW	30
Number of barrel zone		6+N
Injection stroke	mm	200
Clamping System
Clamping force of injection	KN	1350
Opening stroke for injection	mm	140
Clamping force of blowing	KN	200
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	1300*500
Mold thickness	mm	280
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	280
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	37+37
Dry cycle	S	4
Total Power	KW	95
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	5.522.4
Net weight	Ton	18

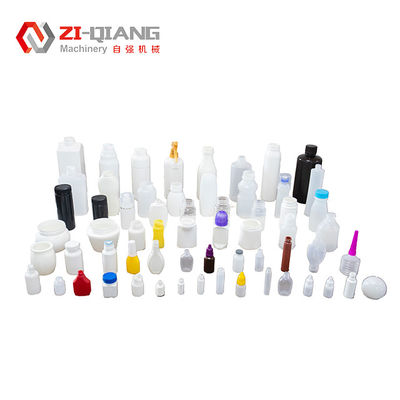

Bottle Volume
Cavity Number	Machine Model	10ml	30ml	60ml	100ml	250ml	500ml	1000ml
	ZQ40	9	8	6	4	3	2	1
	ZQ60	14	12	10	8	5	3	2
	ZQ80	20	18	14	12	8	5-6	3-4
	ZQ110	24	22	18	14	10	8	6
	ZQ135	30	26	22	18	14	10	8

ZQ Series Injection Blow Mould Features

1. Injection mold, blow molding model cavity, neck block activity design, oil circuit, water circuit special design to ensure that the tube also bottle size stability. And easy to replace.

2. Emblem injection mold body, blow mold body material using 4Cr13 stainless steel or imported high-strength S136 Tajin steel, to extend the service life. Blow mold body can also be used magnesium aluminum material, cooling effect is good.

3. Optimized heat circulation system, bottle embryo design, to ensure that the gram deviation and wall thickness deviation is minimized.

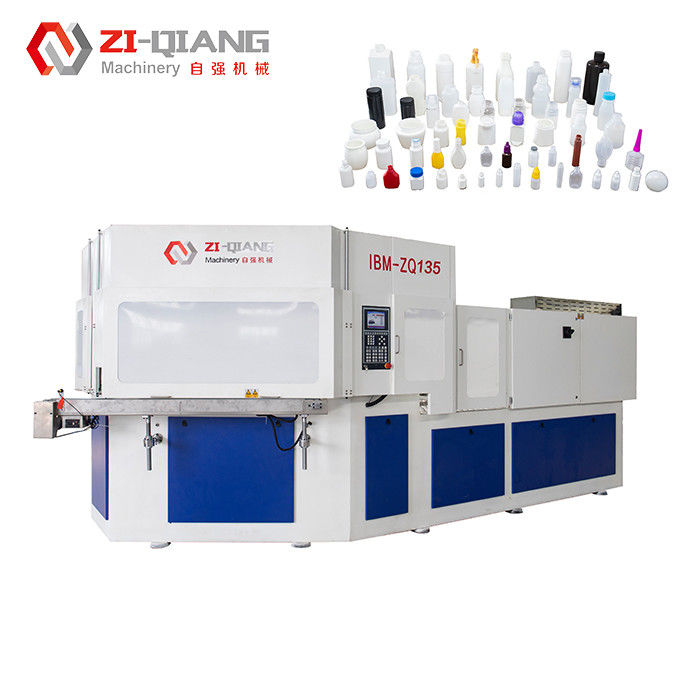

ZQ135 IBM Injection Blow Molding Machine :

ZIQIANG MACHINE FACTORY :

Synchronized IBM Injection Blow Molding Machine PP PE Water Bottle 2
